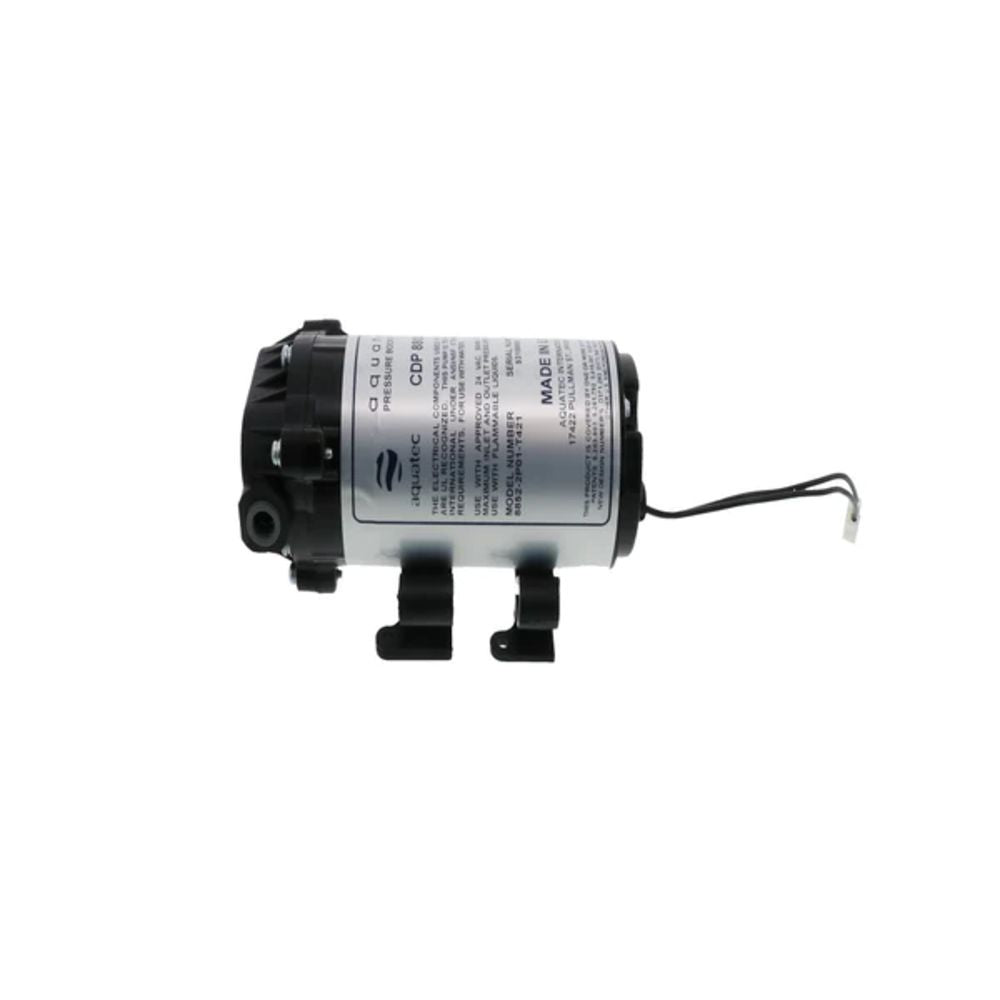

Aquatec CDP 8800 Pressure Boost Pump 8852-2P01-V421 160 PSI Bypass, 3/8 JG, 24 VAC

Aquatec 8800 Series Pumps are used in RO systems with flow rates greater than 50 GPD. Reverse osmosis systems require pressure to work properly. A booster pump is suggested for applications where the feed water pressure is low, and where there are high levels of Total Dissolved Solids (TDS) in the water. The 8852-2P01-V421 is designed for operation with a tank shut-off switch (PSW), which shuts off the RO booster pump when the storage tank becomes full. In under-counter RO systems the PSW can be coupled with an Electronic Shut-Off valve (ESO) in order to shut off the feed supply so the system does not waste water.

Features:

• Outstanding toughness, durability
• EMI/RFI electronic noise suppression
• Expels trapped air and eliminates "air locks"
• Pumphead can be mounted up or down
• Improved venting system removes moisture
• Corrosion resistant exterior
• Connections: 3/8" QC
• Designed for 15,000+ operating hours
• Outlet pressures up to 125 PSI
• Extremely quiet operation, less than 52 DBA
• Runs dry without damage
• Self-priming, 60 inch lift
• Low voltage (24V) for maximum safety

Pump Certifications:

• NSF Standard 58

• CE Rated: Product has met EU health, safety, and environmental requirements, which ensure consumer safety.

Recommend Accessories:

• 8800 Series Transformer 120V/24VAC (US) - (required) connects pump to electrical outlet to provide power
• Tank Pressure shut-off switch w/ wire harness - shuts off booster pump when RO tank is full
• Electronic Shut-off Solenoid (ESO) Valve w/ QC fittings - connects to tank pressure shut-off switch to close off the feed water source when RO tank is full
• Wire harness assembly - required when using electronic shut-off valve

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8" OD
Series	8800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4
Product Length	7.5
Product Width	4
Product Weight (lbs)	5.6
