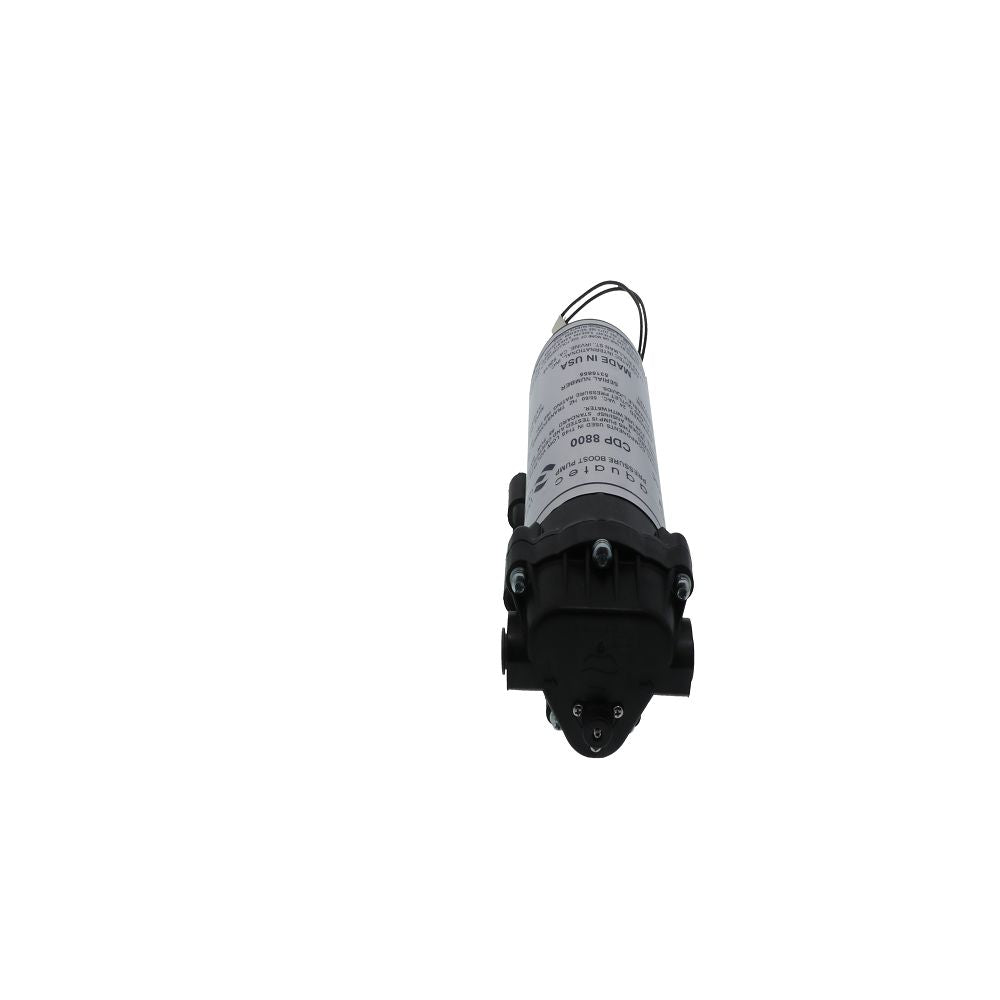

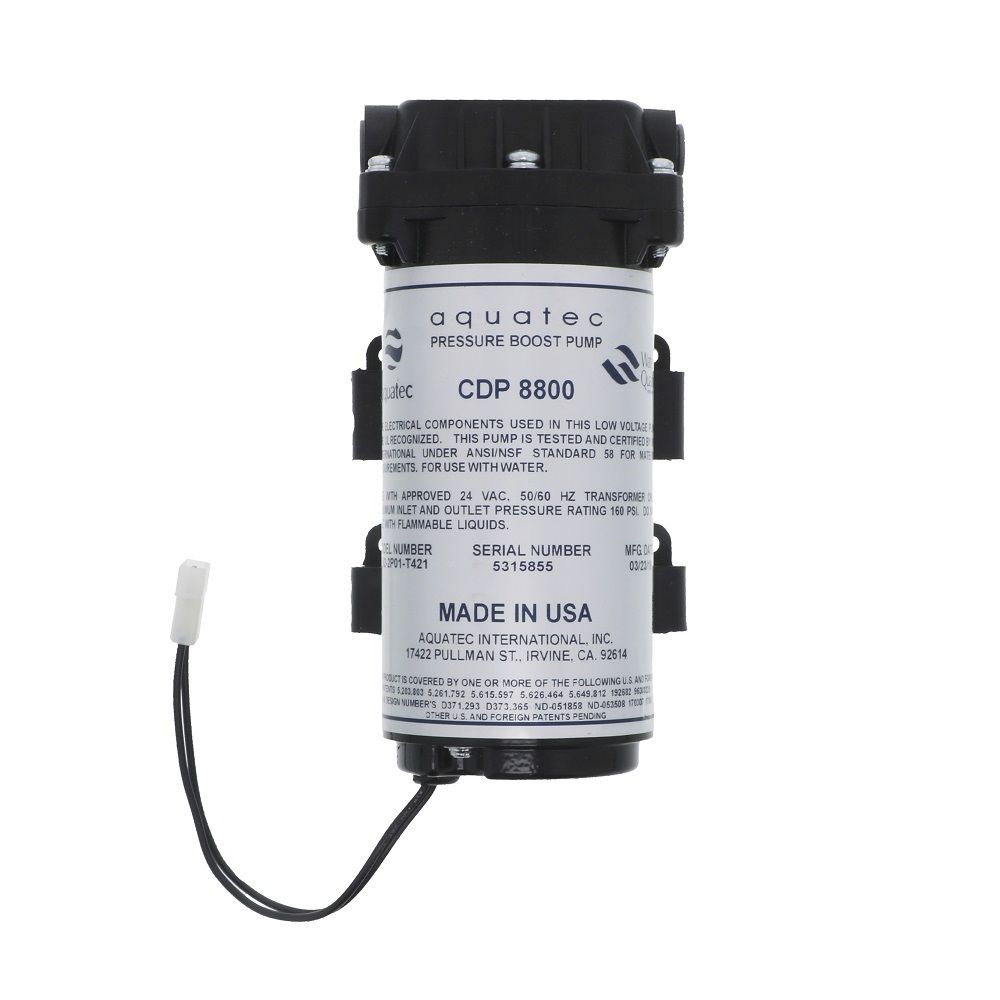

Aquatec CDP 8800 Pressure Boost Pump Kit with Transformer

Aquatec 8800 Series Pumps are used in RO systems with flow rates greater than 50 GPD. Reverse osmosis systems require pressure to work properly. A booster pump is suggested for applications where the feed water pressure is low, and where there are high levels of Total Dissolved Solids (TDS) in the water. The 8842-2J03-B424 is designed for operation with a tank shut-off switch (PSW), which shuts off the RO booster pump when the storage tank becomes full. In under-counter RO systems the PSW can be coupled with an Electronic Shut-Off valve (ESO) in order to shut off the feed supply so the system does not waste water.

Features:

• Reliable Performance. The Aquatec 8800 Series Pump is an extremely durable booster pump that is designed for continuous duty. This tough pump is safe to operate with low voltage for long lasting reliability.
• Self Priming. The Aquatec 8800 Series Pump is self priming with a 6 foot lift. The 8842-2J03-B424 is also capable of running dry.
• Certification. The Aquatec 8800 Series Pump are built of certified materials that meet the NSF standard number 58.

Specifications:

• Voltage: 24VAC
• Prime: 6 foot lift
• Outlet pressures up to 110 PSI
• Inlet/Outlet: 1/4" quick connect
• Max Liquid Temperature: 170°F
• Manufactured of NSF 58 Certified Materials

Part Number	Quantity
8842-2J03-B424	1
ARD0406	2

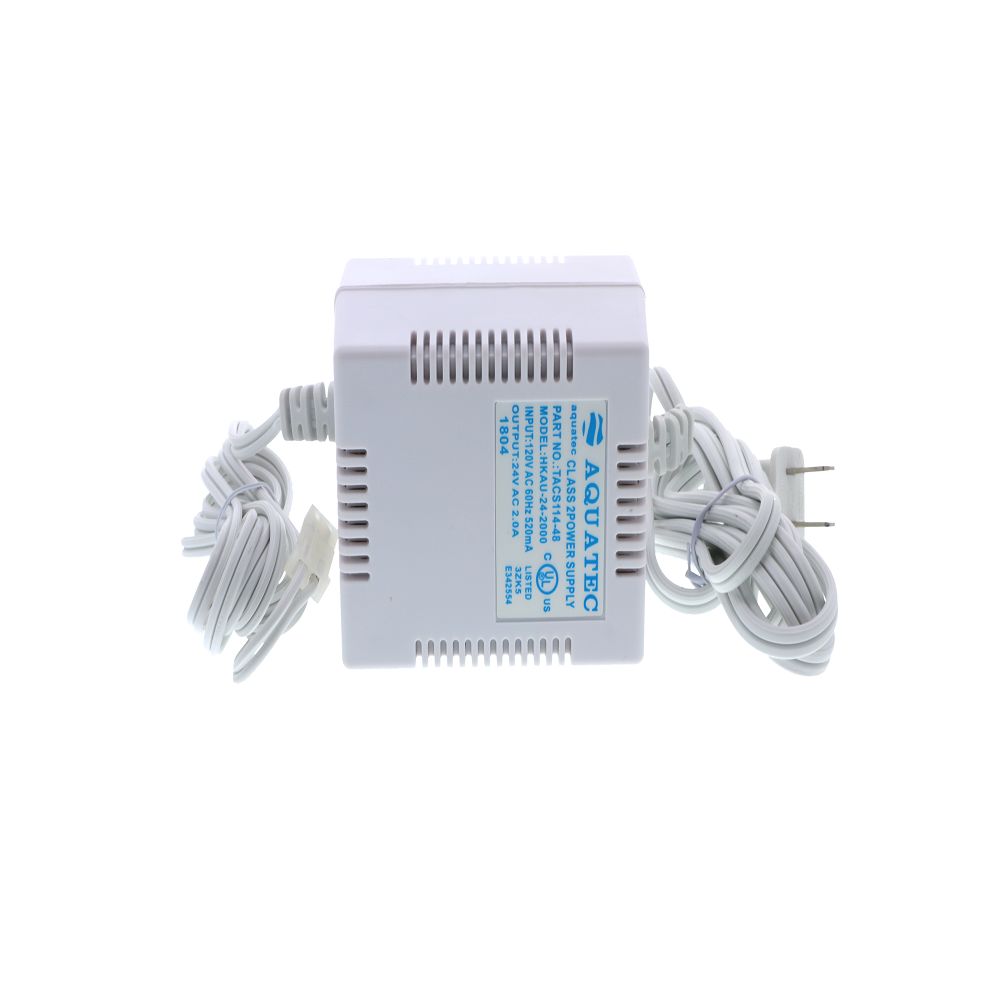

TACS114-48	1

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Motor Rpm	870 RPM
Pump Max Flow Rate (Gpm)	150
Pump Max Pressure (Psi)	110
Push-In Size	1/4" OD
Series	8800
Suction Lift	6 Ft.
Voltage Type	AC
Wire Option	Wall Plug
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	3.57"
Product Length	7.357"
Product Width	4"
Product Weight (lbs)	6.1
