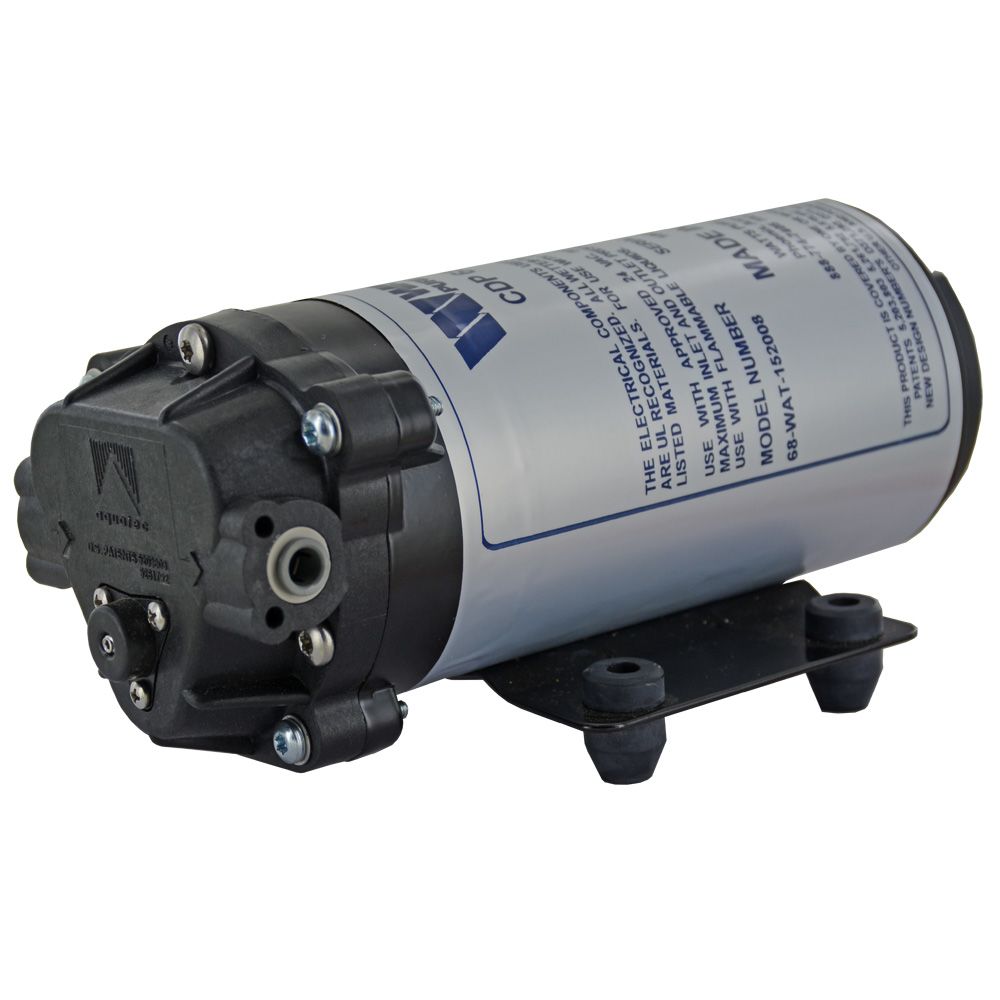

Watts CDP6800 RO Booster Pump for up to 50 GPD, 1/4"JG, 24 VAC

The Watts CDP6800 is designed for use in RO systems with flow rates up to 50 gallons per day. Reverse osmosis systems require pressure to work properly. A booster pump is suggested for applications where the feed water pressure is below 40 psi, and where there are high levels of Total Dissolved Solids (TDS) in the water. The CDP6800 is designed to be used with a tank shut-off switch (PSW), which shuts off the RO booster pump when the storage tank becomes full. In under-counter RO systems the PSW can be coupled with an Electronic Shut-Off valve (ESO) in order to shut off the feed supply so the system does not waste water.

Additional Specifications:

• Inlet/Outlet: 1/4" quick connect

• Corrosion resistant exterior

• Expels trapped air, eliminates "air locks"

• Pump head can be mounted up or down

• Max Liquid Temperature: 170°

• Designed for 30,000+ operating hours

• Extremely quiet operation

• Runs dry without damage

• Prime: 60 inch lift

• Voltage: 24VAC

• One year warranty

• Power supply NOT included


For the best experience, the following accessories are recommended for purchase with your RO booster pump: 6800 Series transformer - (required) connects pump to electrical outlet to provide power Tank pressure shut-off switch w/wire harness - shuts off booster pump when RO tank is full Electronic shut-off solenoid - connects to tank pressure shut-off switch to close off the feed water source when the RO tank is full Wire harness assembly - required when using electronic shut-off solenoid valve
*These pumps are new old stock with a manufacture date of 2005. Fresh Water Systems offers a one year warranty on this pump.


Compatible with:

Watts Premier

152008

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Pump Max Flow Rate (Gpm)	50
Pump Max Pressure (Psi)	125
Push-In Size	1/4" OD
Series	6800
Voltage Type	AC

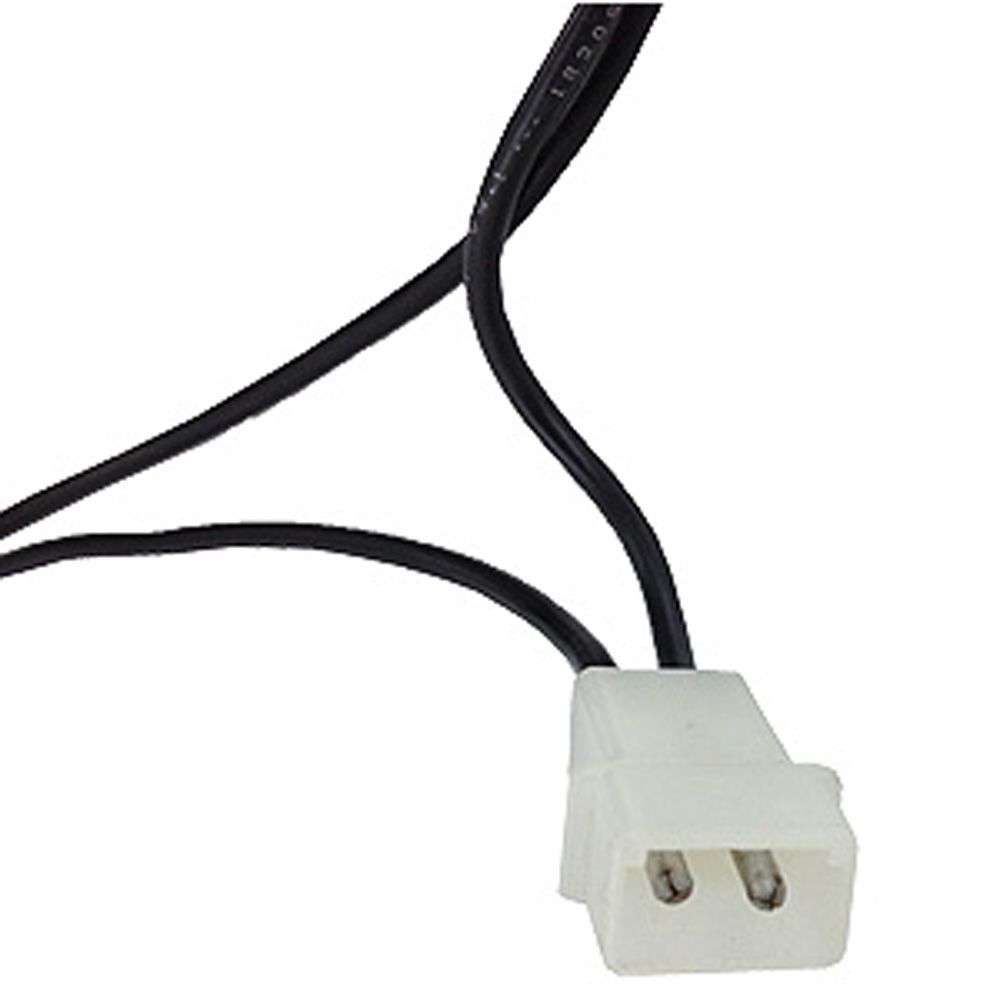

Wire Option	Bare Wire
Origin	U.S.A.
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Warranty	1 Year
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	3-1/2"
Product Length	7.28"
Product Width	3.38 Square Feet
Product Weight (lbs)	5.15
