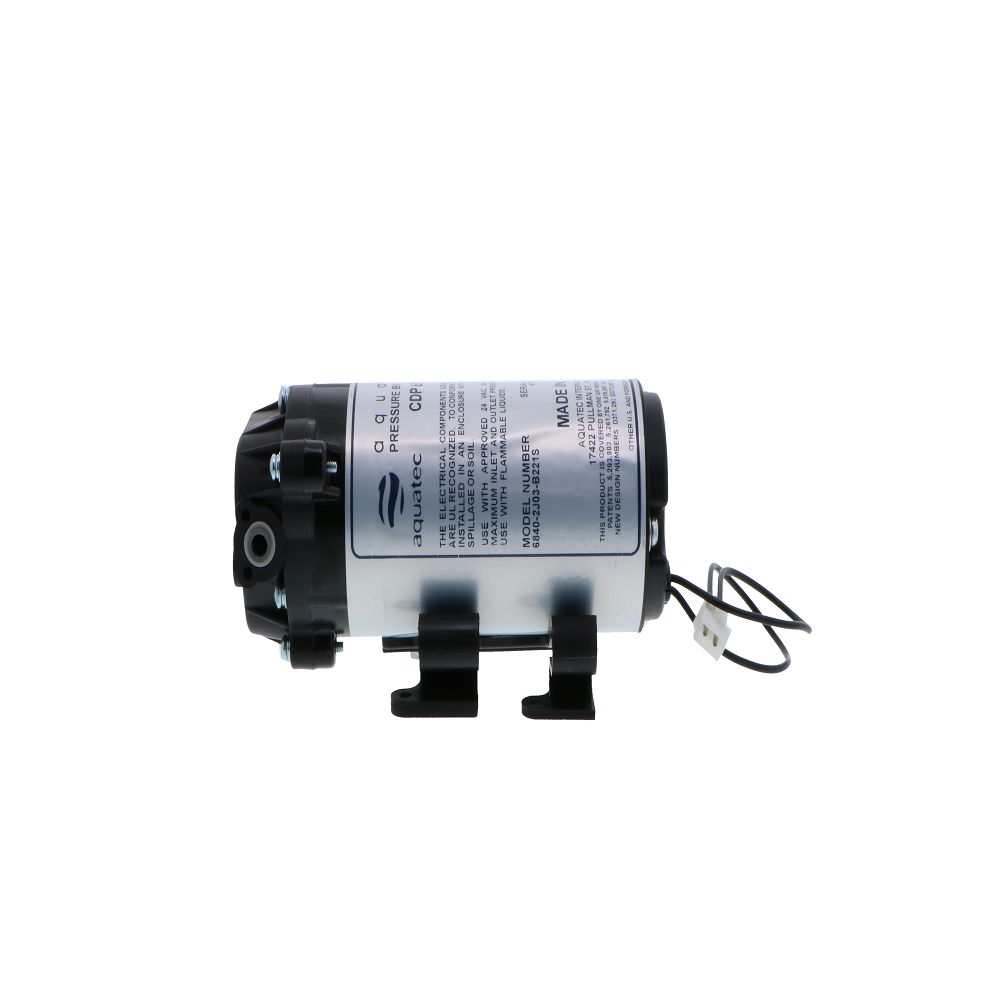

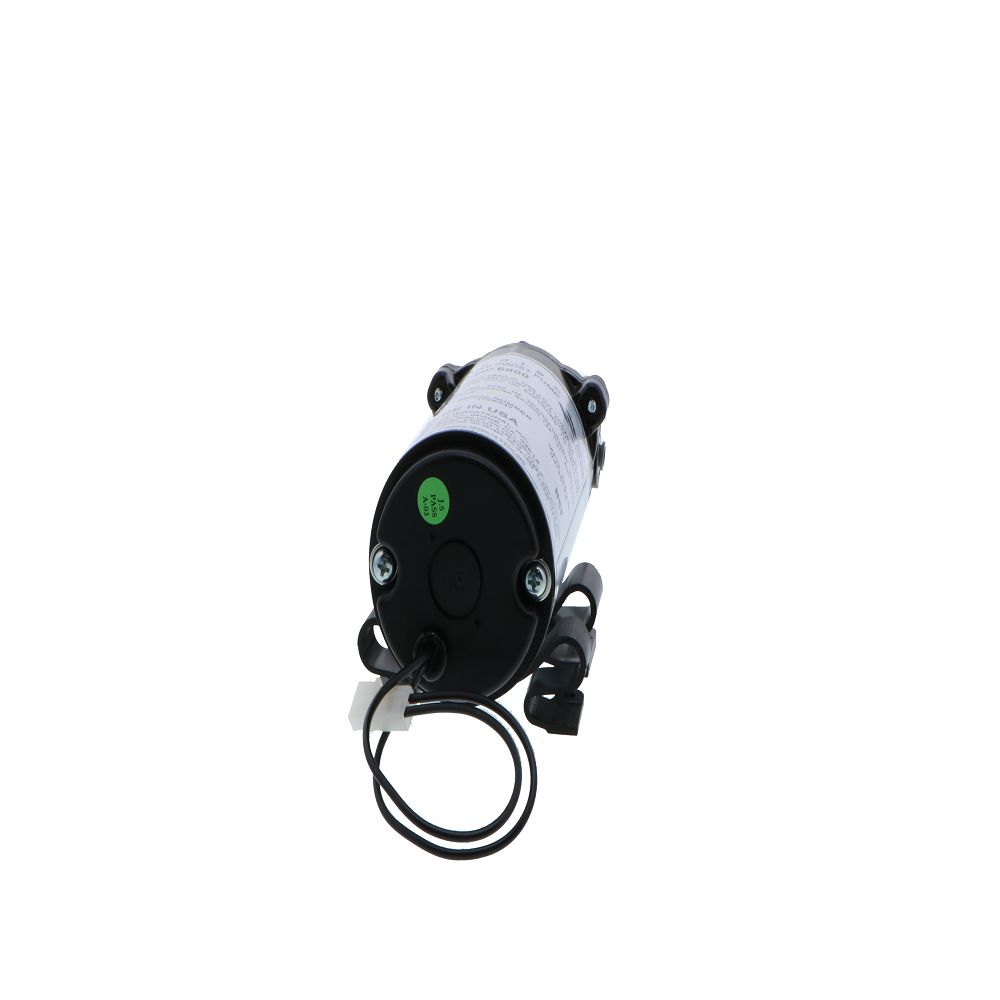

Aquatec 6800 Series RO Booster Pump for up to 50 GPD, 1/4"JG, 24 VAC

The Aquatec 6800 Series Pumps are used in RO systems with a flow rate up to 50 GPD, they are designed for use when feed pressure is below 40 psi. A booster pump is suggested when there is high levels of Total Dissolved Solids (TDS) in the water, the higher the osmotic pressure the harder the force is to create RO water. Reverse Osmosis requires pressure to work properly. These pumps are designed for optimal operation with a tank shut-off switch (PSW), its purpose is to turn off the booster pump when the RO tank is full. When used in typical under-counter RO systems, this switch can be increased with an electronic shut-off valve (ESO), which uses the tank and the pump pressure switch to automatically close off the feed water source when the RO storage tank is full.

Reliable Performance. The Aquatec 8800 Series Pump is an extremely durable booster pump that is designed for continuous duty. This tough pump is safe to operate with low voltage for long lasting reliability.
Self Priming. The Aquatec 8800 Series Pump is self priming with a 6 foot lift. The 8842-2J03-B424 is also capable of running dry.
Certification. The Aquatec 8800 Series Pump are builit of certified materials that meet the NSF standard number 58.
Additional Specifications:

• Voltage: 24VAC

• Prime: 60" lift

• Runs dry without damage

• Corrosion resistant exterior

• Outlet pressures up to 110 PSI

• Inlet/Outlet: 1/4" quick connect

• Max Liquid Temperature: 170°F

• EMI/RFI electronic noise suppression

• Expels trapped air, eliminates "air locks"

• Designed for 30,000+ operating hours

• Mounting Options: Vertical or Horizontal

• Manufactured of NSF 58 Certified Materials

• Improved venting system removes moisture

• Extremely quiet operation, less than 45 DBA

Compatible with:

AXEON/RO Ultratec	200759
Hague®	PAB6800
Sterilight	CDP-6800

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	0.23-0.62 Amps @ 0-80 PSI
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Motor Rpm	870 RPM
Power Source	Bell Ends w/ Lead Wires
Pump Max Flow Rate (Gpm)	50
Pump Max Pressure (Psi)	125
Push-In Size	1/4" OD
Series	6800
Voltage Type	AC
Wire Option	Bare Wire
Origin	U.S.A.
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4
Product Length	7.5
Product Width	4
Product Weight (lbs)	6.1
