HM Digital CIC-152 Dual Control Dosing/Injection TDS/EC Controller

The HM Digital CIC-152 TDS/EC Controller monitors and controls dosing or injection systems with two adjustable set points to keep TDS level within a range. The CIC-152 allows you to set minimum and maximum control points that will activate relay controls to send an analog signal to an external device via switching dry contacts. The external devices must have their own power source.

Features:

• Monitors and controls dosing or injection systems

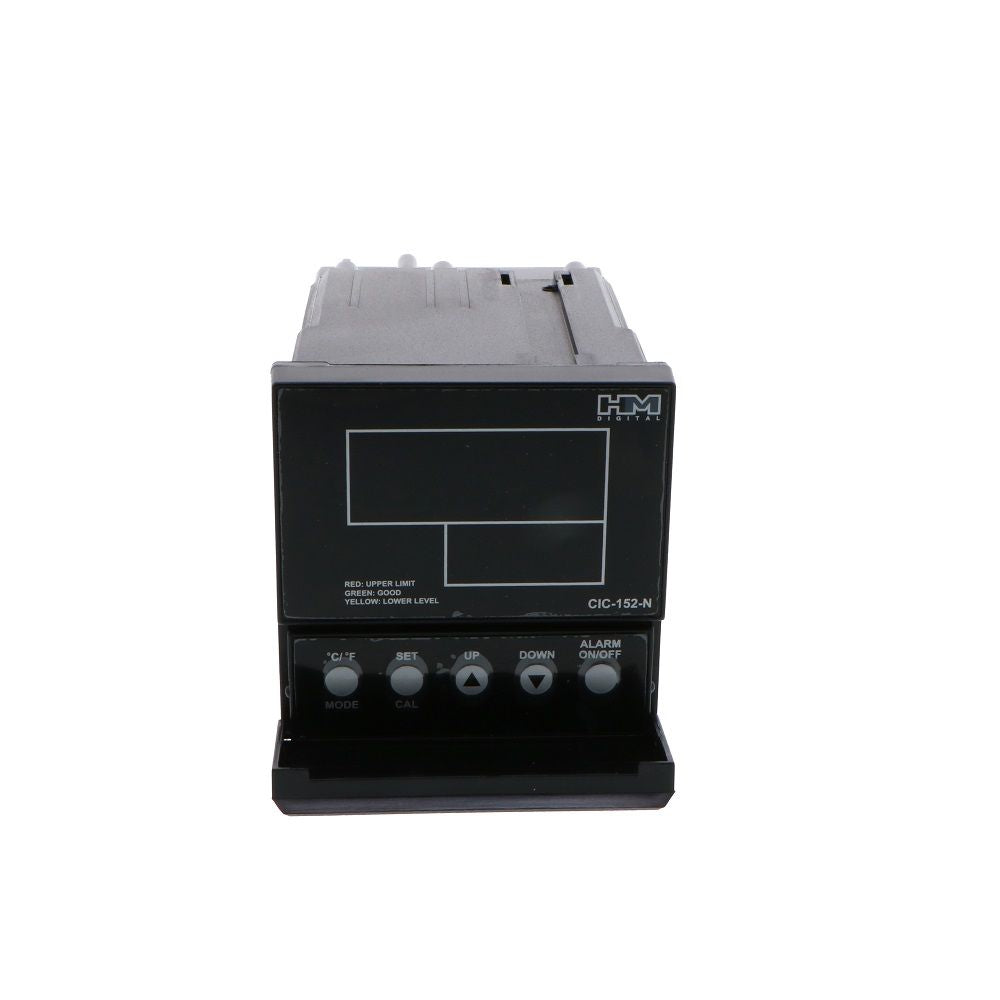

• Large, bright tri-colored LED display
• Two adjustable set points keep TDS levels within a range

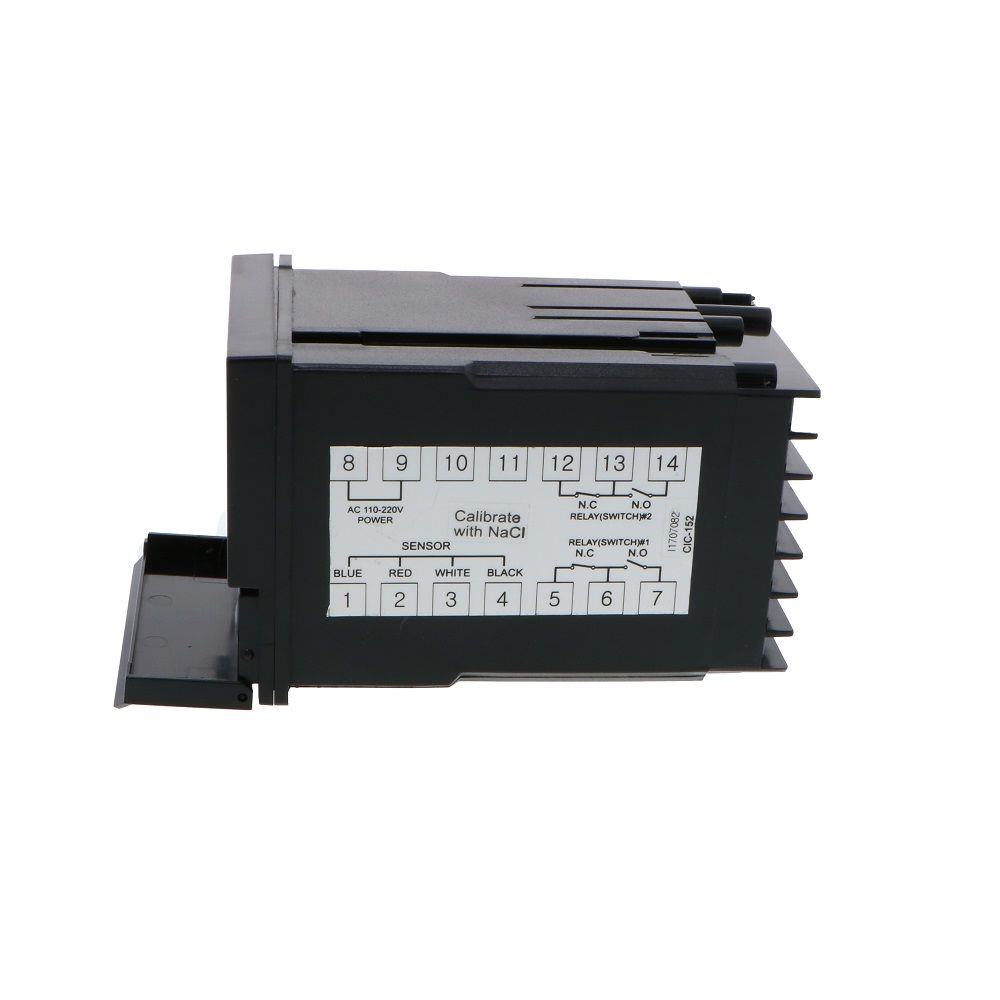

• An alarm will sound if the TDS reaches the minimum or maximum set point, and will start or stop a device (pump, valve, etc.) via switching a dry contact position.
• Once the TDS level returns to the acceptable range, the alarm will stop and the dry contacts will switch to the normal position.
• Digital calibration.
• On-screen temperature display.
• Installs easily in minutes.
• Includes one sensor probe.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Accuracy	±2 %
Features	Bright 5/8" L.E.D. display Auto Temp Control (1-80° C)
Max Temp (°F)	176
Min Temp (°F)	33
Power Source	AC 110V / AC 220V
Warranty & Certifications
Warranty	1 Year
Shipping Dimensions
Shipping Length	4.5 in.
Shipping Width	2.88 in.
Shipping Height	3 in.
Product Weight & Dimensions
Approx Depth	4.4"
Product Height	3 in.
Product Length	4.5 in.
Product Width	2.88 in.
Product Weight (lbs)	1.5
