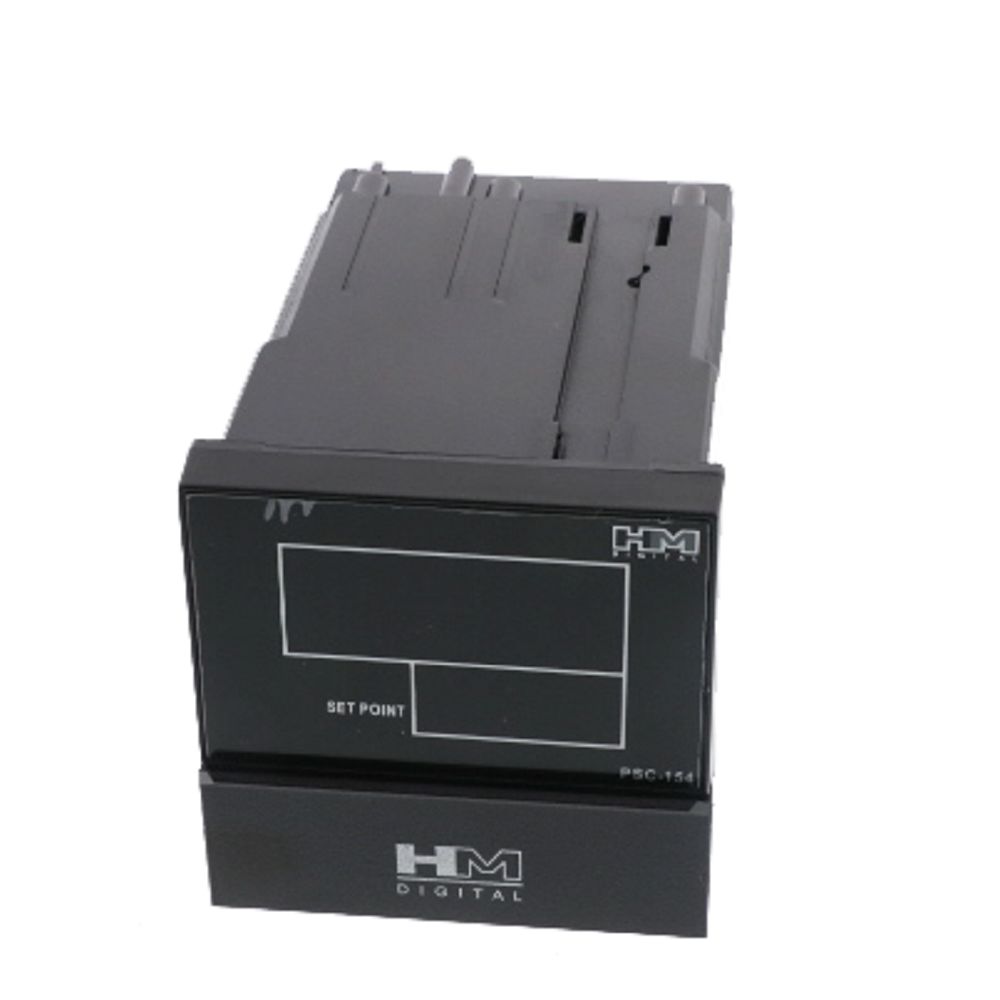

HM Digital PSC-154 Extended Range EC/TDS Controller with 4-20mA Output

The HM Digital PSC-154 EC/TDS Controller reads in an extended range to monitor and control TDS levels for high output commercial systems. If the TDS level rises above the user-set level, an alarm will sound and the unit will open or close a circuit via dry contacts to control a pump, solenoid valve or other external device. External devices must have their own power supply.

Features:

• Monitors and controls TDS/EC level for high output commercial systems.
• Large, bright L.E.D. display
• 4-20mA output signal can connect to a PLC to record values.
• An alarm will sound if the TDS level rises above the user-set level.
• A switch will control a device based upon the set point.
• On-screen temperature display (C/F).
• Installs easily in minutes

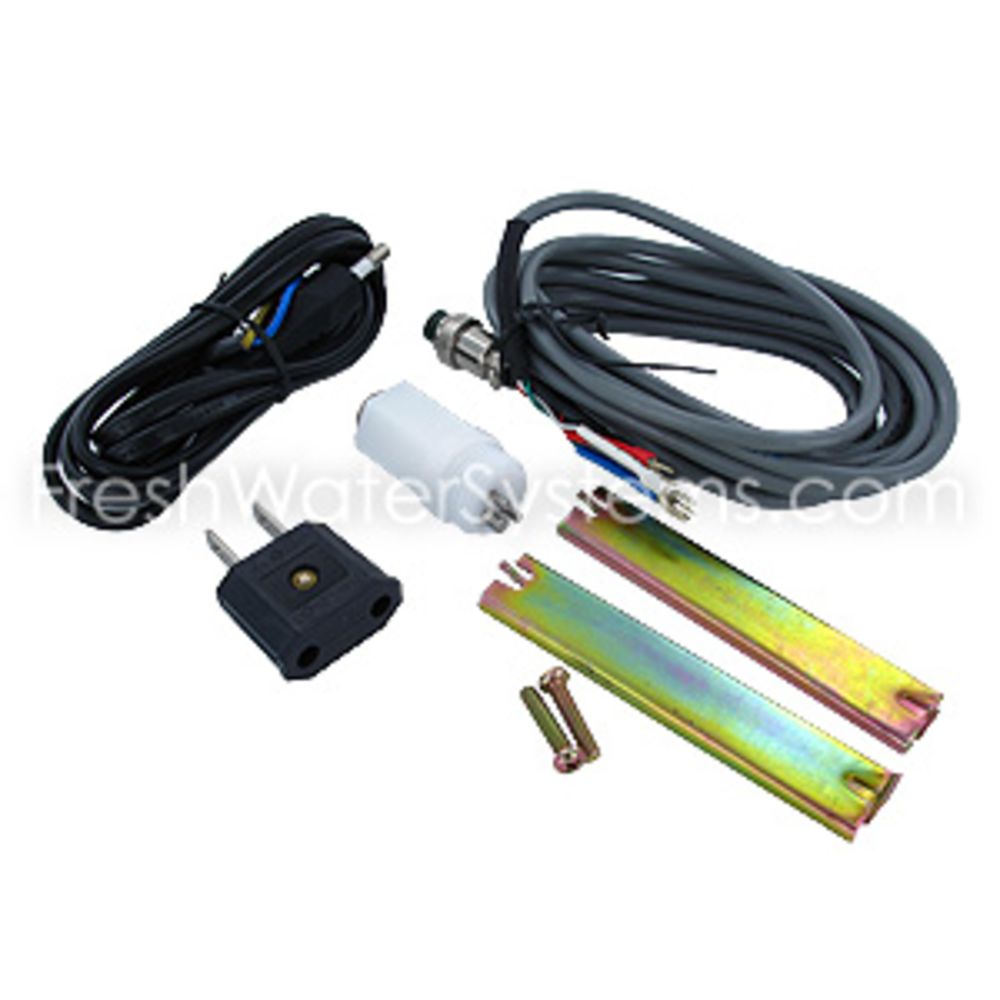

• Includes one sensor probe
• One year warranty

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Accuracy	± 1% mA
Amps	4-20 mA
Features	Bright 5/8" L.E.D. display Auto Temp Control (1 - 65°C)
Max Temp (°F)	167
Min Temp (°F)	33
Power Source	AC 110V / AC 220V
Warranty & Certifications
Warranty	1 Year
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Approx Depth	4
Product Height	4 in.
Product Length	6 in.
Product Width	7 in.
Product Weight (lbs)	1.4
