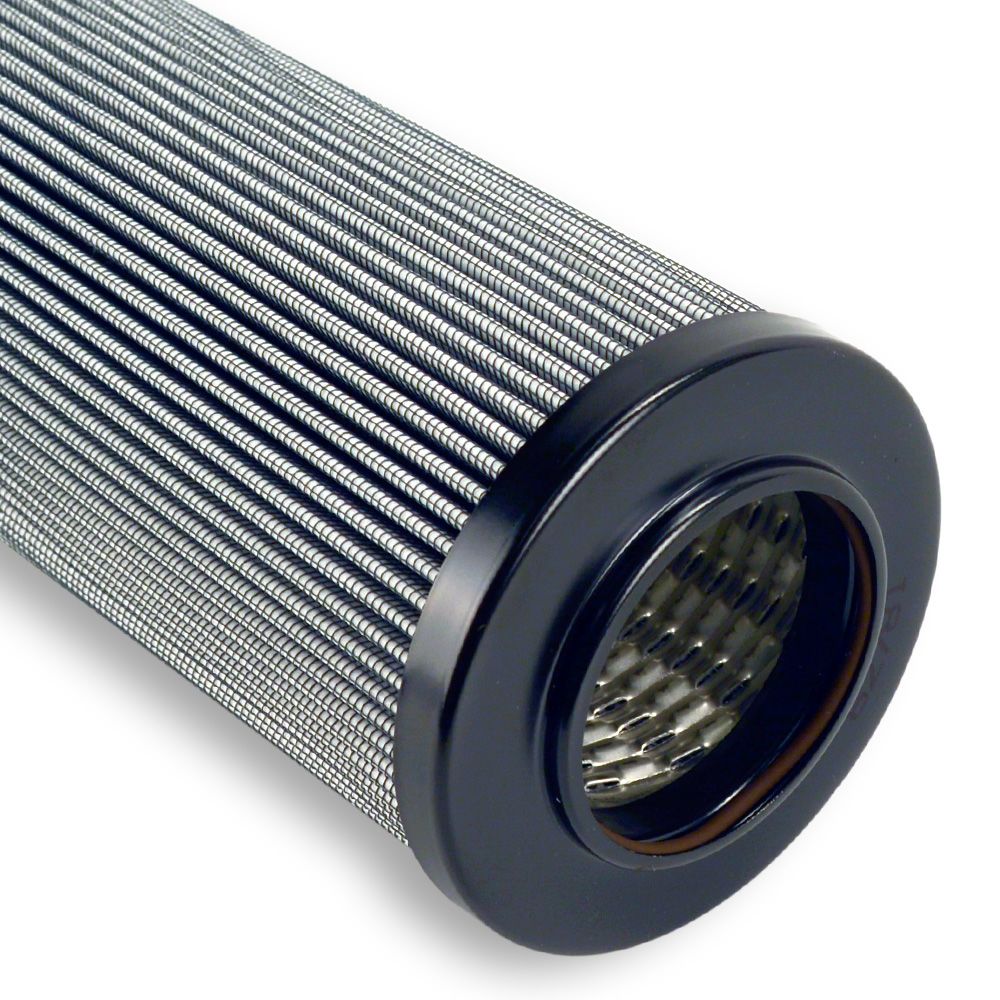

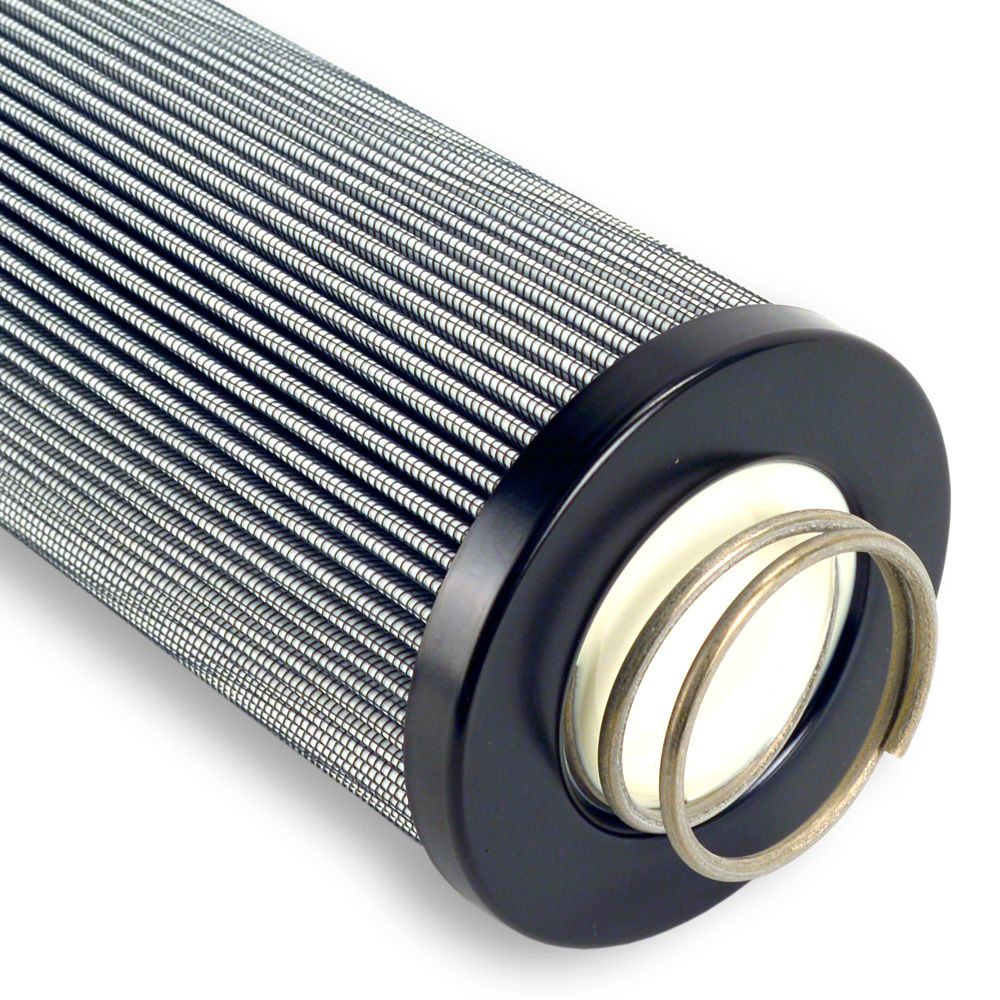

Neo-Pure HYL426-12VS HYL Series Hydraulic & Lubrication Filter

The Neo-Pure HYL Series Hydraulic and Lubrication Filters are designed for a variety of oil and hydraulic fluid filtration applications and are manufactured the USA. The HYL426-12VS is constructed out of carbon steel and contains multi-layer dual phase microglass pleated media designed to handle high flow rates. HYL Series filters are ISO 16889 and Dynamic Filter Efficiency Tested.

Specifications:

• Multi-layer dual phase microglass pleated media
• High flow rates, low pressure drop and stable Beta x[c] rated efficiencies
• Micron Rating: Beta 12[c] >= 1000
• Max Temperature: 250°F
• Viton O-ring seal with external hold-down spring
• Made in the USA

Compatible with the following filters:

• GE: 328A8836P003, 358A8836P001
• Hilco: PH426-01-CG1V, PH426-11-CG1V
• Hycoa: V2640120V1
• Hy-pro: HPQ20228-12MV
• National Filter: 2200A2, 2200FE, P4260120PC17
• National Filtration: 2200A3, REP, HF12426-1-7, HF06426-1-7

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Direction	Outside - In
Inner/Outer Wraps	Electro Plated Tin
Max Pressure (Psi)	150
Max Temp (°F)	250
Micron Rating (Absolute)	1000 µm
O-Rings	Viton
Cap Material	Corrosion Resistant CS/AL
Diameter	3-25/32"
End Cap Type	SOE/Spring
Media Type	Carbon Steel
Origin	U.S.A.
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	3 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Length	26"
Product Weight (lbs)	6
