Watts P60 Series Miniature Plastic Water Pressure Regulator - 4 Way - 1/4" FNPT 0-60 psi

Series P60 Miniature Plastic Water Pressure Regulators are used in general purpose and OEM applications to regulate pressure in systems that require a constant downstream and accurate flow performance. It consists of a thermoplastic body construction with *1/4 in. NPT female connections or quick connect fittings in a straight through or 90° inlet to outlet design. All external components are NSF approved thermoplastics and all internal rubber components (disc, diaphragm, and seals) of FDA grade elastomers. All internal metal components are 300 Series stainless steel, and features a bottom clean-out plug for service. Series P60 is compact and lightweight with a high flow capacity. It is also suitable for deionized water applications.

Features:

• Available with 1/4" NPT female threads or 1/4" quick connect fittings*
• Corrosion Resistant thermoplastic body
• Compact design and lightweight construction
• All external components are made of NSF approved thermoplastics
• All internal rubber components in contact with fluid are of 300 series stainless steel
• Straight thu or 90º inlet to outlet options
• High Capacity

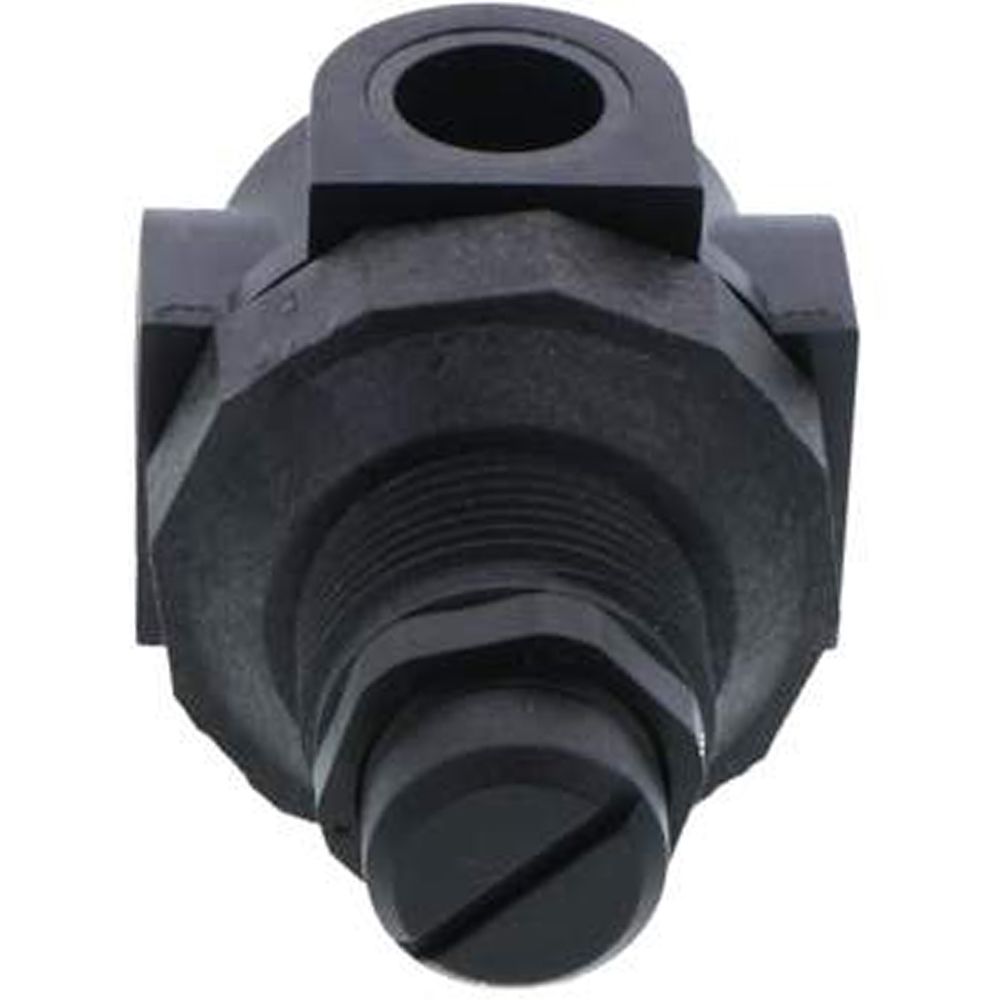

• Bottom "clean out plug" for service

*Quick connect fittings not available in all configurations.

NOTE: 2-way regulators will not accept a pressure gauge. If you need to add a gauge, select the 4-way configuration. For more size, pressure, and connection options please refer to the table below.

Disclaimer: Watts® is a registered trademark of Watts Water Technologies, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc acknowledges and confirms that it has not been granted any license or authority from Watts Water Technologies, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Watts Water Technologies, Inc. and Fresh Water Systems, Inc. of any nature whatsoever.

Product UPC	Order Code	Lead Free	Pre-set Pressure	Description
098268224368	0354553	YES	50 psi	1/4 P50 M1 0-125
098268224375	0354554	YES	15 psi	1/4 P60 M1 0-25
098268224382	0354555	YES	40 psi	1/4 P60 M1 0-60
098268224399	0354556	YES	50 psi	1/4 P60 M1 0-125
098268243895	0363001	YES	15 psi	1/4 P60 M5 0-25
098268243901	0363002	YES	40 psi	1/4 P60 M5 0-60
098268243918	0363003	YES	50 psi	1/4 P60 M5 0-125
098268244021	0363007	YES	40 psi	1/4 P60 M5 4-way 0-60
098268244069	0363008	YES	50 psi	1/4 P60 M5 4-way 0-125
098268244076	0363009	YES	40 psi	1/4 P60 M5 4-V 0-60
098268298031	0354576	YES	40 psi	1/4 P50 M1 QD 0-60
098268329636	0354590	YES	15 psi	1/4 P60 M1 4-way 0-25
098268329643	0354591	YES	40 psi	1/4 P60 M1 4-way 0-60
098268329650	0354592	YES	50 psi	1/4 P60 M1 4-way 0-125
098268341911	0354608	YES	50 psi	1/4 P60 M1 QD 4-way 0-125

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	NSF Grade Noryl Thermoplastic
Diaphragm Materials	Buna-N
Material Of Construction	300 Stainless Steel
Max Temp (°F)	150
Min Temp (°F)	33
Spring	300 Series Stainless Steel
Port Size	1/4" FNPT
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	1.625
Product Length	2.5
Product Width	1.625
Product Weight (lbs)	0.25
