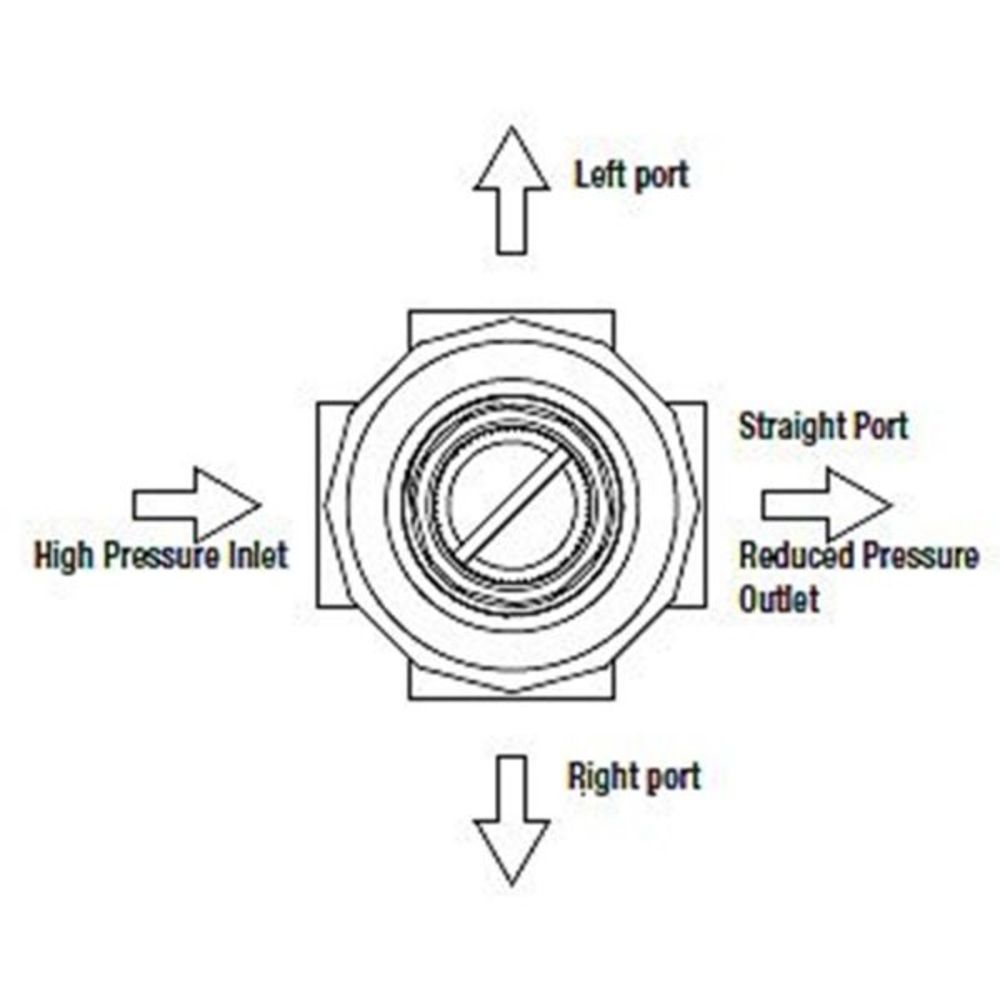

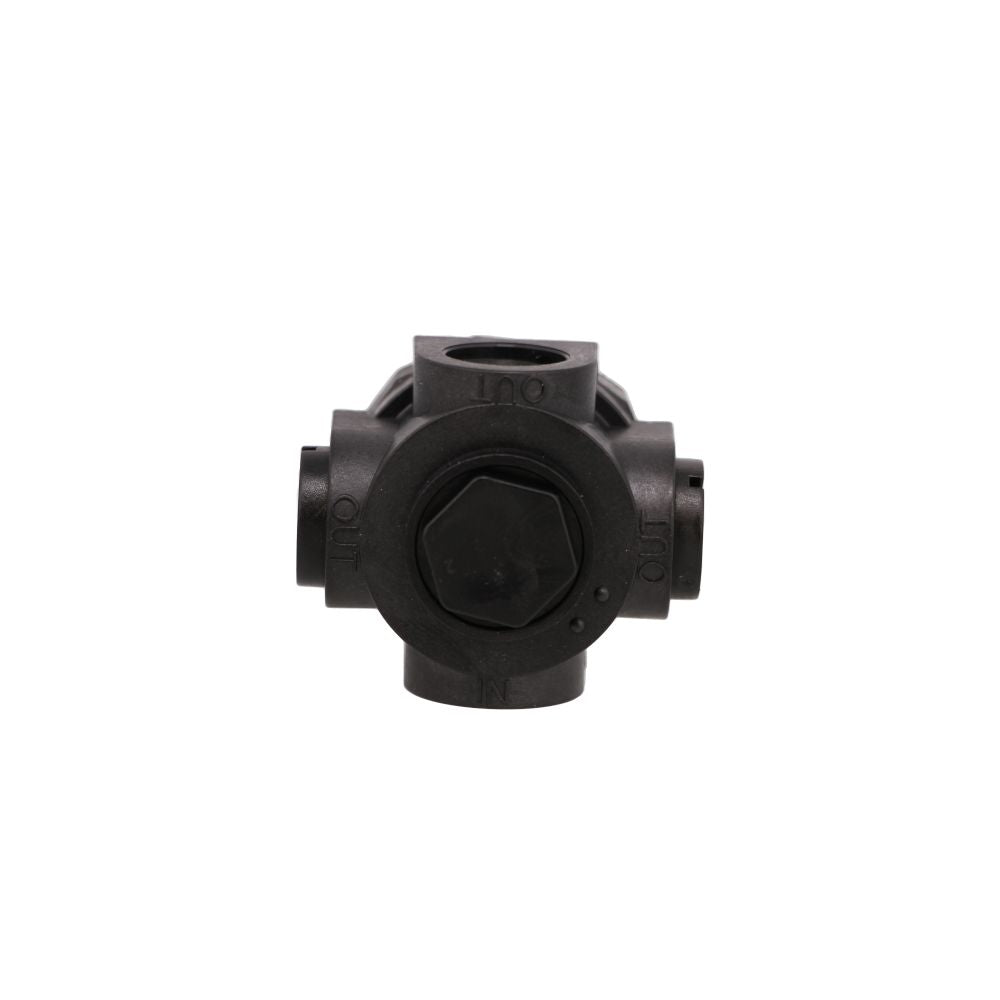

Watts P60 Series Miniature Plastic Water Pressure Regulator - 4 Way - 1/4" FNPT 0-60 psi - Viton Seal

Series P60 miniature plastic water pressure regulators are used in general purpose and OEM applications to regulate pressure in systems that require a constant downstream and accurate flow performance. They have a thermoplastic body construction with connections in a straight through or 90 DEG inlet to outlet design, all external components of NSF approved thermoplastics, all internal rubber components (disc, diaphragm, and seals) of FDA grade elastomers, all internal metal components of 300 series stainless steel, and a bottom clean-out plug for service. Options include gauge port and quick disconnect for plastic tubing. Series P60 is compact and lightweight with a high flow capacity. It is also suitable for deionized water applications. Maximum Working Pressure: 60 PSI.
Features:

• All internal metal components IN contact with fluid are 300 series stainless steel
• Corrosion-resistant thermoplastic body
• Compact design and lightweight construction with high flow capacity
• Bottom clean-out plug for easier service

Pressure Regulator Mounting Kit

Watts P60 Series Pressure Regulator Mounting Kit

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Plastic
Inlet Connection	1/4" FNPT
Max Pressure (Psi)	60 PSI
Outlet Connection	1/4" FNPT
Size	1/4"
Temperature Range	33 - 150F
Color / Finish	Black
Shipping Dimensions
Shipping Length	1.5635 in.
Shipping Width	1.5635 in.
Shipping Height	3.44 in.
Product Weight & Dimensions
Product Height	3.44 in.
Product Length	1.5635 in.
Product Width	1.5635 in.
Product Weight (lbs)	0.25
