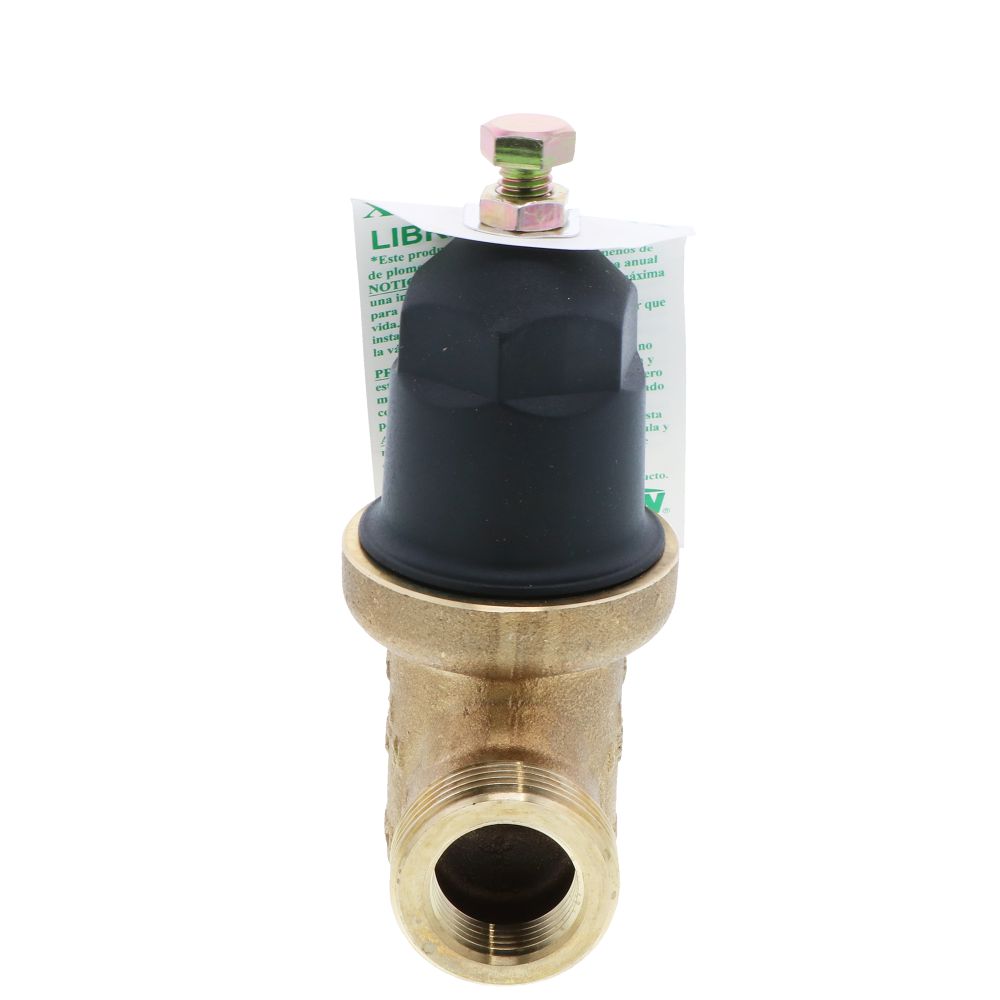

LFX65B Lead-Free Pressure Regulator 3/4" FPT

The Zurn LFX65B Lead Free Pressure Regulator is designed to reduce the incoming water pressure to protect plumbing system components and to reduce water consumption. The Zurn LFX65B has a 100% balanced valve which is unique to Watts and provides reliable flow performance.

Features:

• Commercial & Residential Applications
• Reduces incoming water pressure for protection of plumbing system components and to reduce water consumption
• Integral stainless steel strainer
• Thermoplastic seat
• Lead Free Brass body construction
• Serviceable in line
• Bypass feature controls thermal expansion pressure
• Sealed spring cage on all models for accessible outdoor or pit installations
• Does NOT include a port for a pressure gauge

Specifications:

• Size: 3/4"
• FPT Connection
• Max Working Pressure: 400 PSI
• Adjustable Range: 15 To 75 PSI
• Pressure Setting: 50 PSI
• Max Temp: 140°F
• Height: 5-7/16", Width: 3-3/4"
• Standards: ASSE 1003, IAPMO, NSF 61-G

Note: If you are replacing an N55B or LFN55B series regulator, please verify the dimensions of the regulator as as installing an LFX65B may require modifications to your existing plumbing.

Compatible with:

Hydro-Logic Purification Systems

139564

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Cast copper silicon alloy
Max Temp (°F)	180
Min Temp (°F)	33
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	5-7/16"
Product Weight (lbs)	2.1
