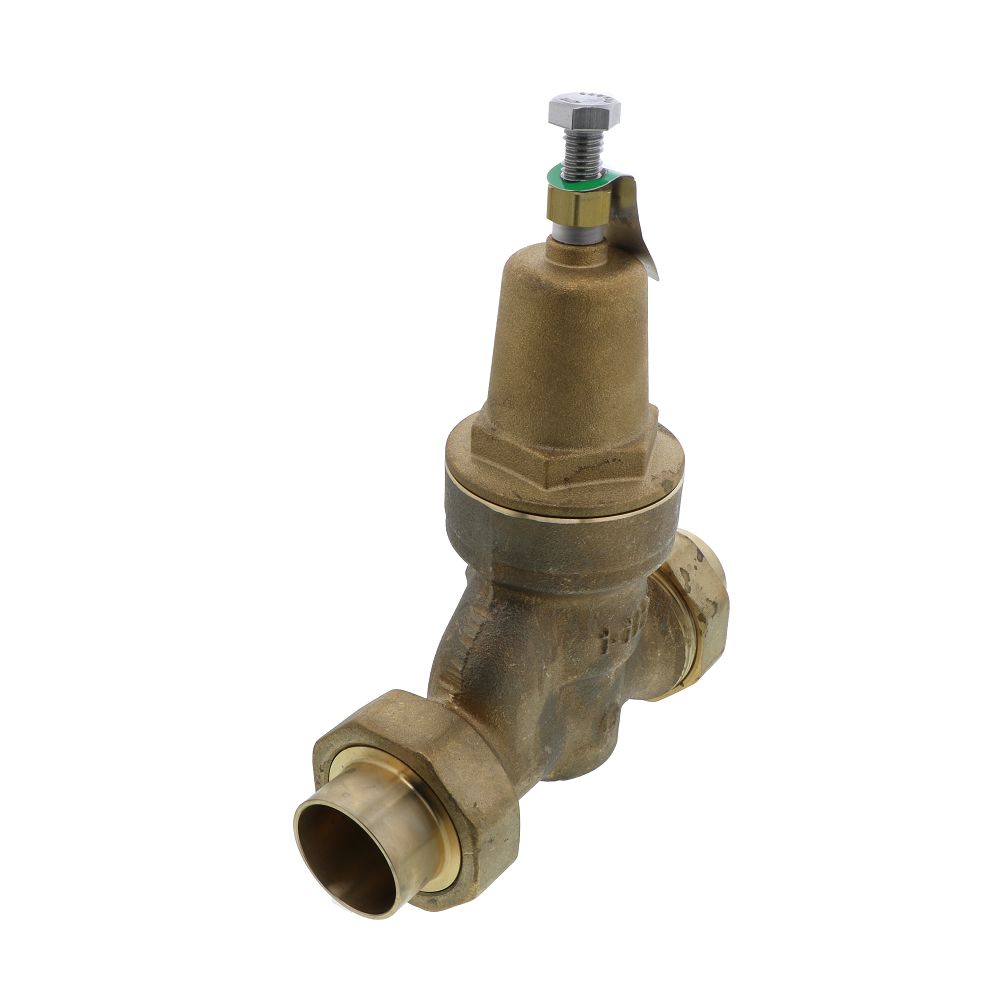

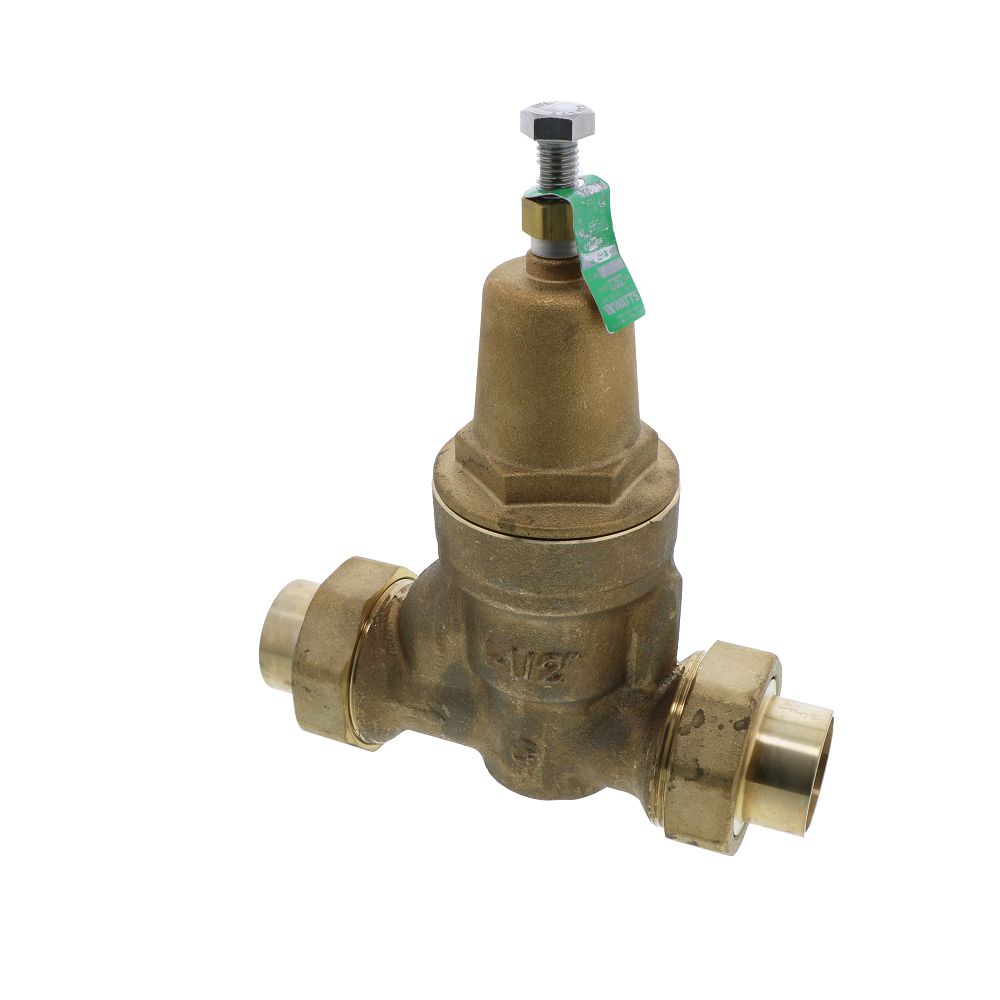

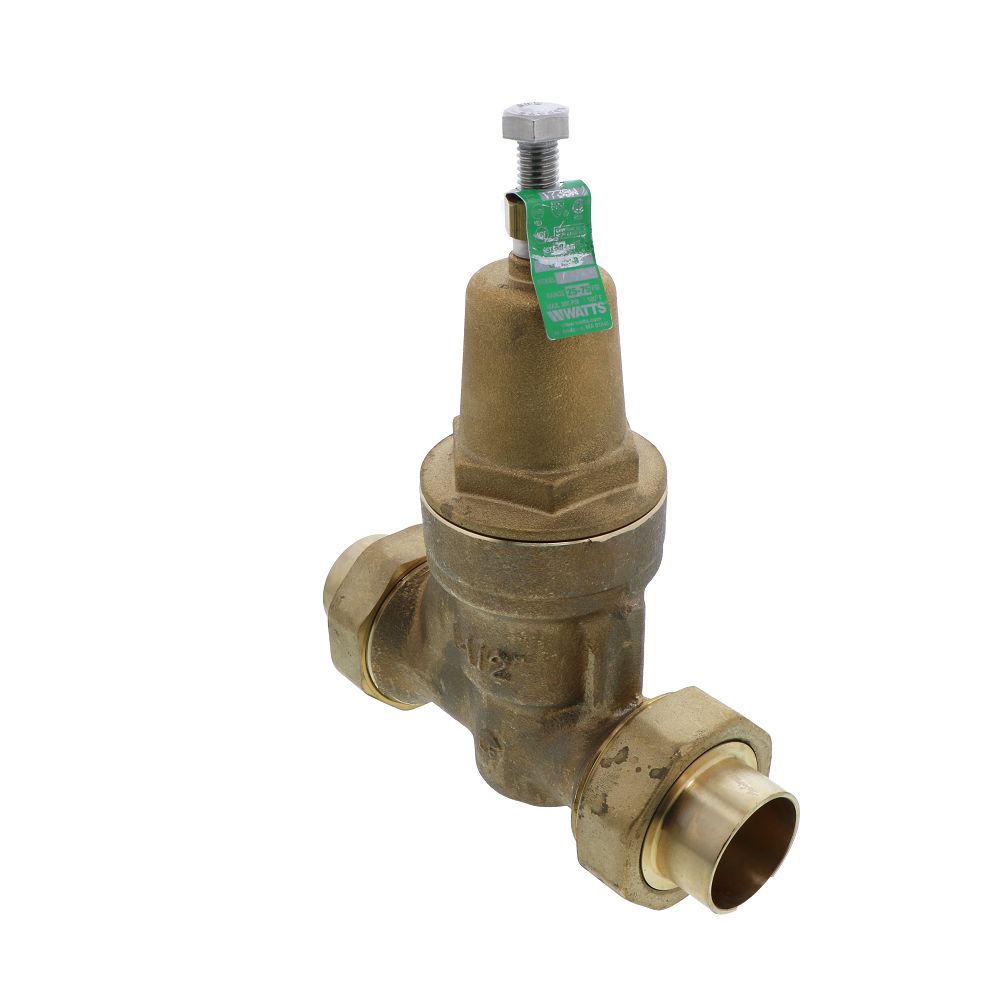

Watts PRV-15-LFN55BDU-S Pressure Regulator 1-1/2"

Features:

• Commercial and residential applications
• Double union-solder union inlet and outlet
• Bronze cage
• Reduces incoming water pressure for protection of plumbing system components and to reduce water consumption
• Integral stainless steel strainer
• Thermoplastic seat
• Lead-free brass body construction
• Serviceable in line
• Bypass feature controls thermal expansion pressure
• Sealed spring cage on all models for accessible outdoor or pit installations

Specifications:

• Size: 1-1/2"
• Double Union – Solder Union Inlet and Outlet
• Max Working Pressure: 300 psi (20.7 bar)
• Adjustable Reduced Pressure Range: 25 to 75 psi (172 - 517 kPa)
• Standard Reduced Pressure Setting: 50 psi (345 kPa)
• Temperature Range: 33°F - 180°F (0.5°C - 82°C)
• Height: 10.5" max., Width: 8.375"
• Standards: ASSE 1003, ANSI A112.26.2 & CSA Standard B356

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Lead Free Brass
Diaphragm Materials	EPDM
Max Temp (°F)	180
Min Temp (°F)	33
Shipping Dimensions
Shipping Length	12 in.
Shipping Width	9.5 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	6 in.
Product Length	12 in.
Product Width	9.5 in.
Product Weight (lbs)	8
