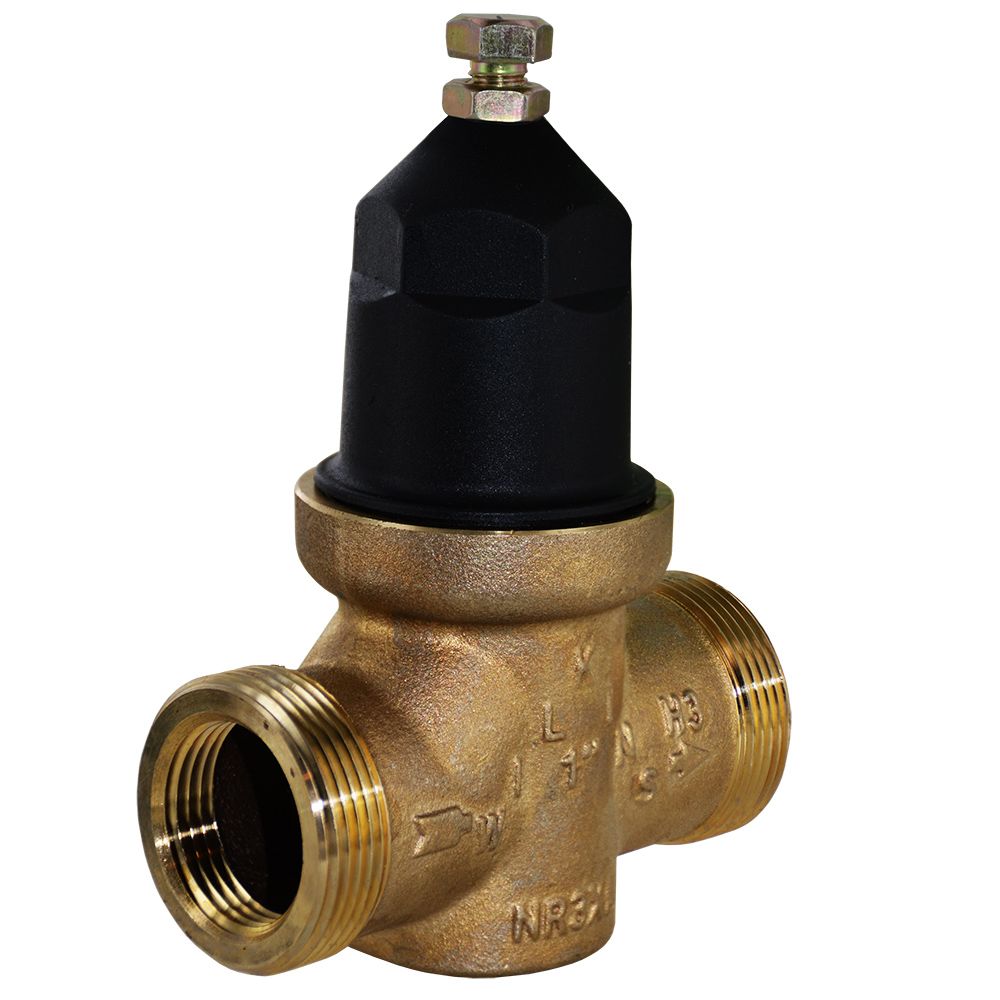

Zurn PRV-10-LF-NR3XL Lead Free Pressure Regulator 1" FPT Union

The Zurn PRV-10-LF-NR3XL Pressure Regulator is ideal for use in applications where a lead-free valve is required. This regulator has been designed for installation on water lines to reduce high inlet pressure to a lower outlet pressure, and features an integral strainer that makes it perfect for residential and commercial systems requiring frequent cleaning of sediment and debris.

Application:
Buildup of excessive system pressure caused by thermal expansion is prevented by the direct acting integral by-pass design. The regulator´s balance piston design ensures it will react in a smooth and responsive manner to changes in system flow demand, while providing protection from inlet pressure changes at the same time.
Features:

• Protects Plumbing System. The Watts LFX65BU reduces incoming water pressure for protection of plumbing system components and to reduce water consumption.
• Trusted & Certified. This product is ASSE® Listed 1003, IAPMO® Listed, CSA® Certified, NSF® Listed - Standard 61, Annex G*, and Certified to NSF/ANSI 372* by IAPMO R&T.

Specifications:

• Size: 1" FNPT (Single Union)
• Maximum Inlet Pressure: 80 PSI as per UPC Code
• Maximum Working Water Pressure: 400 PSI
• Maximum Working Water Temperature: 140°F
• Reduced Pressure Range: 15 to 75 PSI
• Factory Preset: 50 PSI
• Cold Water Rated Temperature: 73.4°F @ 400 PSI

Materials:

• Main Valve Body: Cast bronze ASTM B 584, UNS C84400
• Bell Housing: UV resistant polymer composite
• Internals: Stainless steel, 300 Series
• Stem: Brass ASTM B 16
• Elastomers: EPDM (FDA approved), Buna nitrile (FDA approved)
• Cartridge: Delrin (NSF Listed)
• Springs: Oil temp wire, ASTM A 229
• Strainer Screen: 300 Series Stainless Steel

*This product contains a weighted average lead content less than 0.25% for wetted surface.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Max Temp (°F)	140
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	2.5 in.
Product Length	6 in.
Product Width	4 in.
Product Weight (lbs)	2.3
