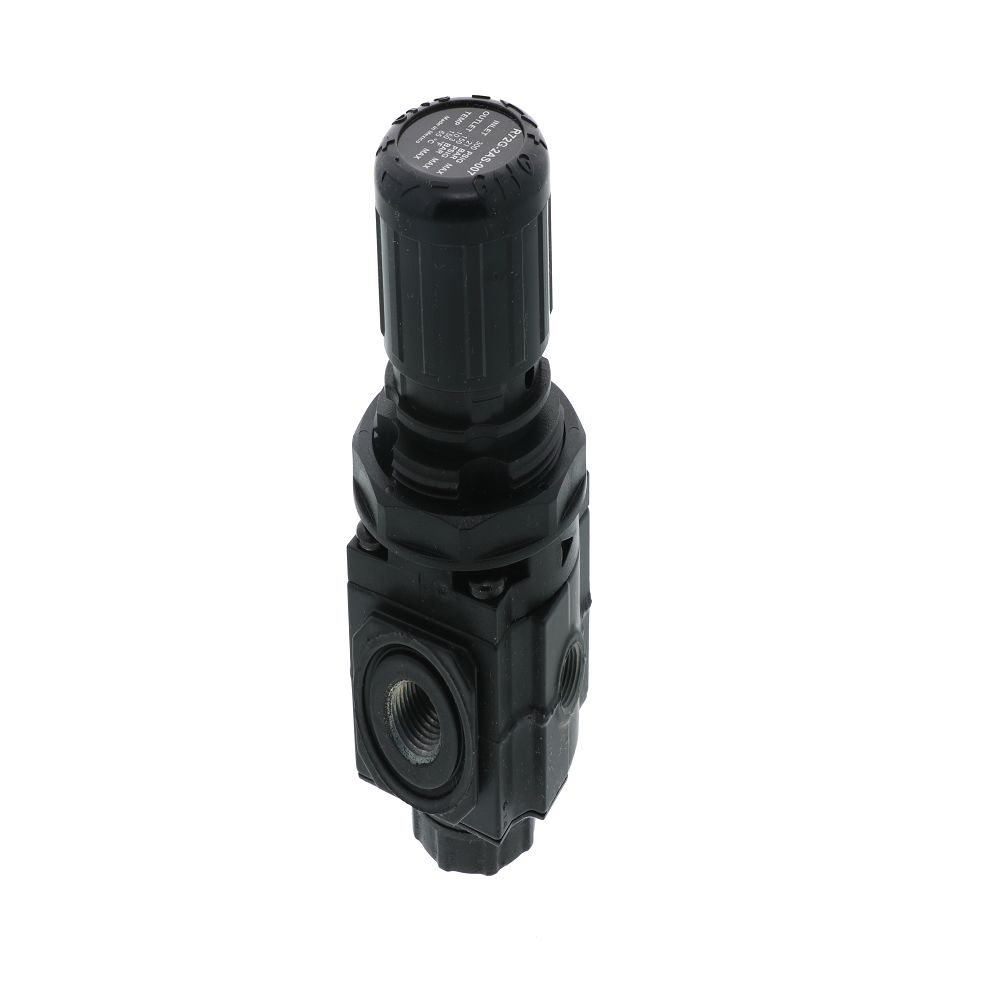

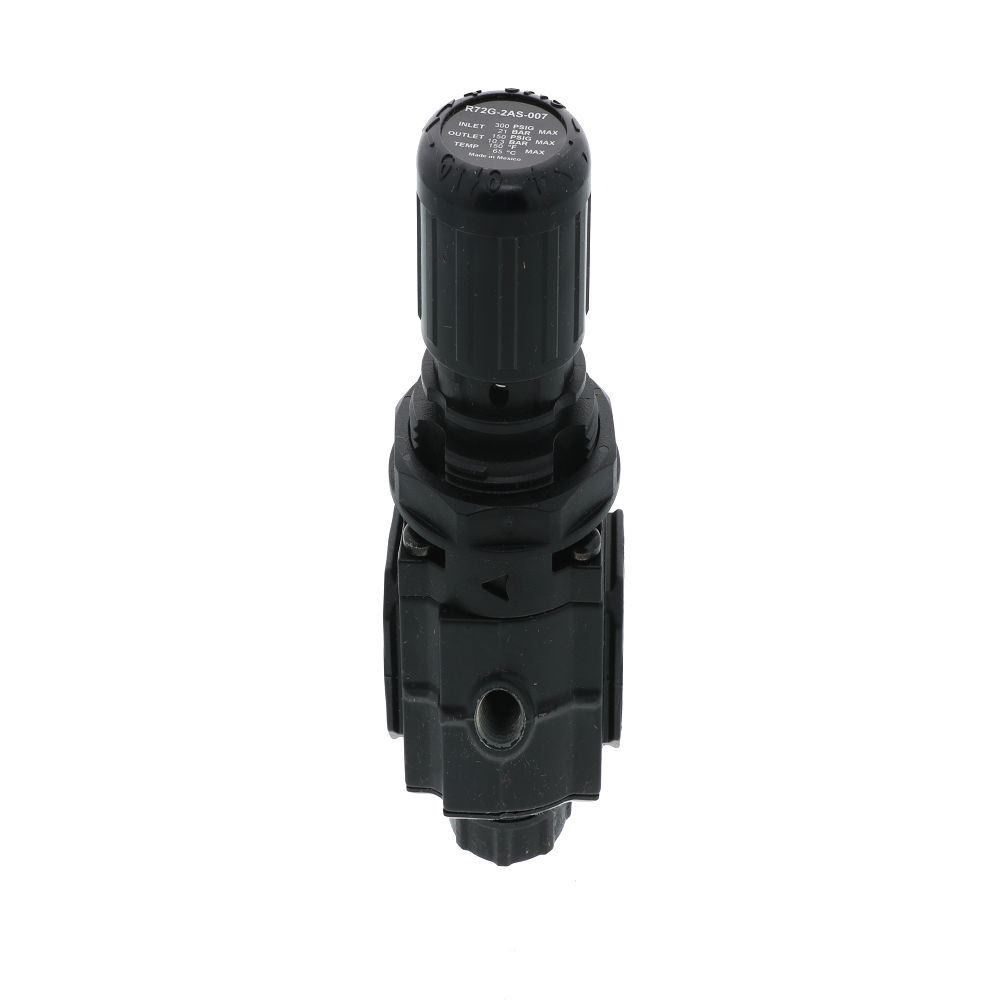

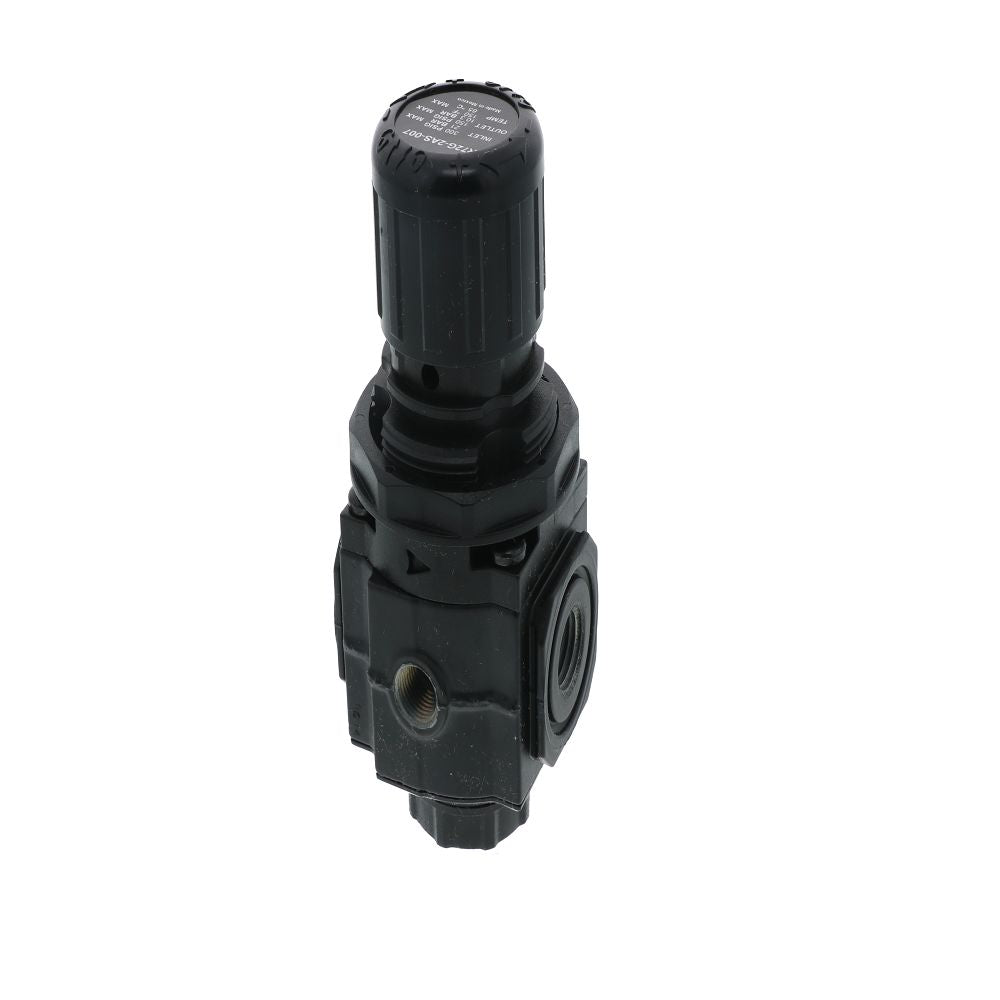

Norgren Excelon R72G-2AS-007 Relieving Air Pressure Regulator 1/4 FPT

The Norgren Excelon R72-2AS-007 air pressure regulator´s design allows for in-line or modular installation. The R72-2AS-007 has a push to lock adjusting knob with tamper proof accessory and includes the panel mount nut (part number 4248-89). This regulator is suitable for use on compressed air.

Specification:

Compact design
Corrosion resistant construction
Includes panel mount nut (part # 4248-89)
Zinc body with Acetal bonnet
Relieving model; allows reduction of outlet pressure even when system is dead-ended
For industrial applications
Port size: 1/4" FPT
Max inlet pressure: 300 psig (21 Bar)
Max outlet pressure: 150 psig (10.3 Bar)
Outlet pressure adjustable from 5-150 psig (0.3-10.3 Bar)
Max flow rate (air): 70 scfm

Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)

California residents Prop 65 Warning

warning symbol

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Zinc
Elastomer Type	Nitrile
Max Temp (°F)	150
Min Temp (°F)	-30
Flow Rate	70 scfm
Port Size	1/8" FPT" 1/4" FNPT
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.16"
Product Length	1.97"
Product Weight (lbs)	1.2
