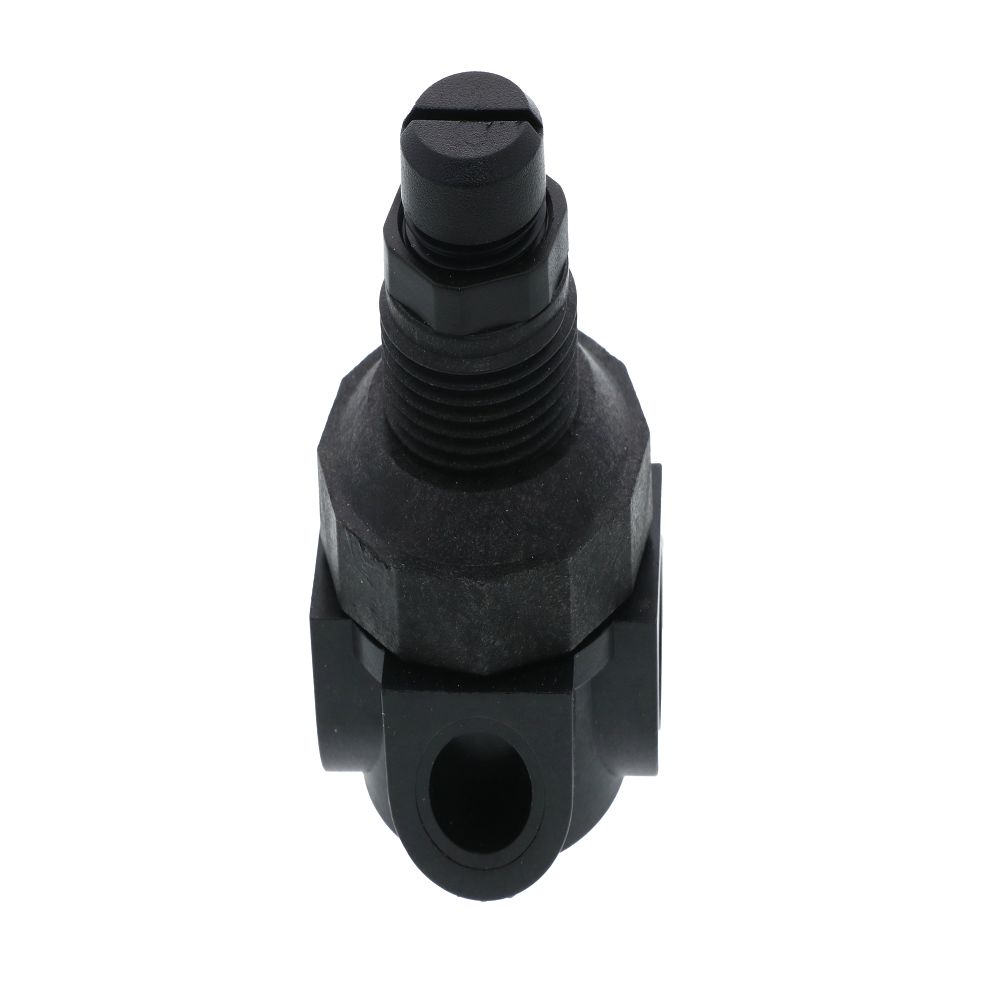

Norgren R16-200-R50A Nonadjustable Relieving Water/Air Regulator 1/4 FPT

The Norgren R16-200-R50A water/air pressure regulator features a compact corrosion resistant design. The R16-200-R50A has a factory preset, tamper resistant pressure setting. This regulator is suitable for use on compressed air and water service.

Specifications:

• Compact design
• Corrosion resistant construction
• Brass body and bonnet
• Relieving model; allows reduction of outlet pressure even when system is dead-ended
• For industrial applications
• Port size: 1/4" FPT
• Max inlet pressure: 100 psig (7 Bar)
• Outlet pressure (not adjustable): 50 psig (3.5 Bar)
• Max flow rate (water): 1.3 gpm
• Max flow rate (air): 12.0 scfm

NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Elastomer Type	Nitrile
Max Temp (°F)	150
Min Temp (°F)	Air: -30 Water: 35
Flow Rate	Water: 1.3 GPM Air:12 scfm
Port Size	1/8" FPT" 1/4" FNPT
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Height	2.28"
Product Length	1.48"
Product Weight (lbs)	0.7
