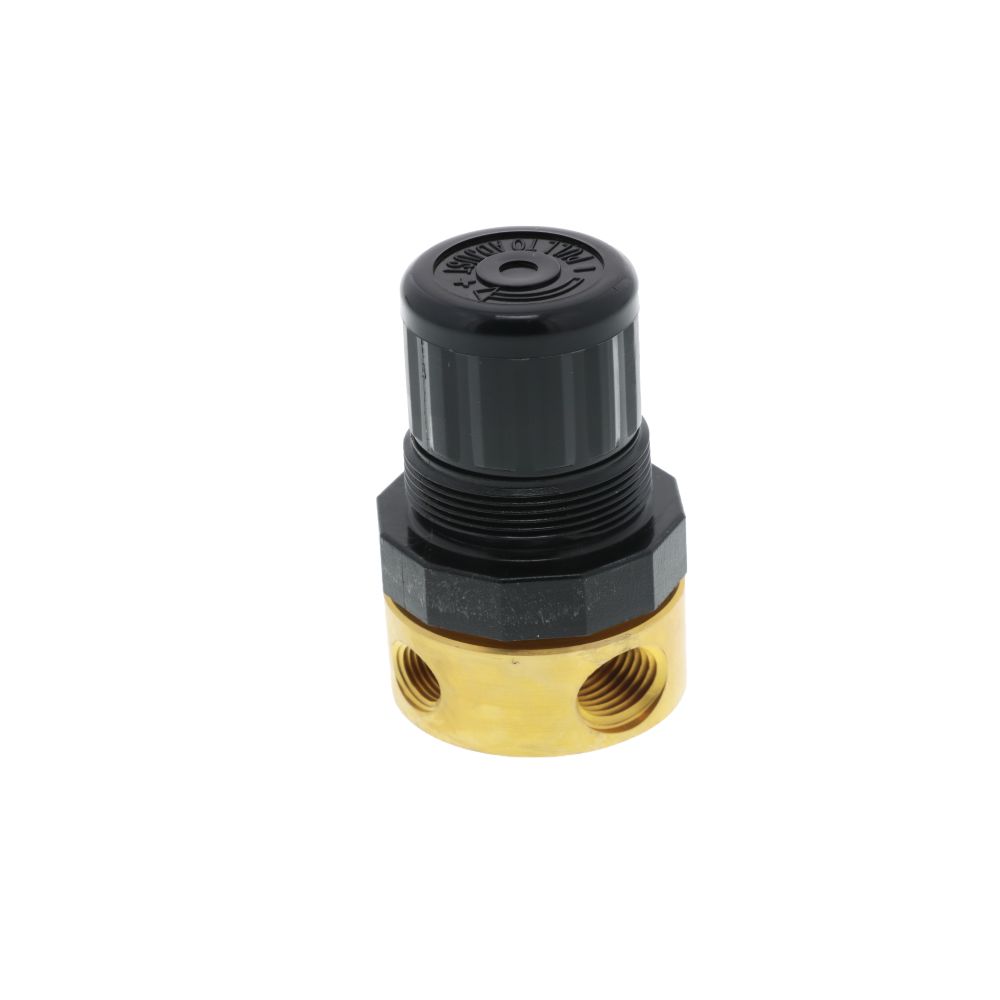

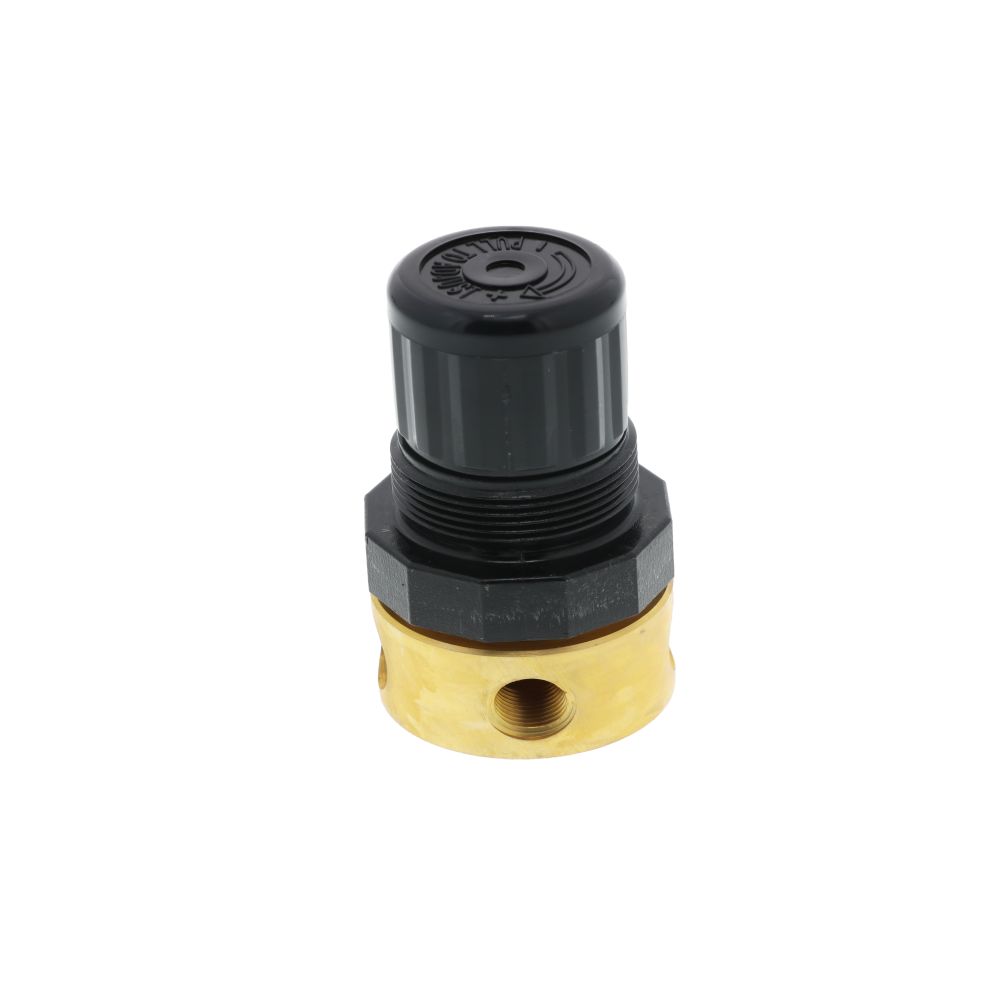

Norgren R06-221-NGKA Non-Relieving Water/Air Regulator 1/4 FPT w/ Gauge

The Norgren R06-221-NGKA water and air pressure regulator features a compact corrosion resistant design. The R06-221-NGKA has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in. This regulator is suitable for use on air or water service.

Features:

• Compact design
• Corrosion resistant construction
• Brass body with plastic bonnet
• Non-relieving model; designed for water and air service
• For industrial applications only; not designed for use with deionized or potable water
• Includes pressure gauge
• Port size: 1/4" FPT
• Max inlet pressure: 400 psig (28 Bar)
• Max outlet pressure: 100 psig (6.9 Bar)
• Outlet pressure adjustable from 5-100 psig (0.3-6.9 Bar)
• Max flow rate (water): 1.3 gpm
• Max flow rate (air): 12.0 SCFM

Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Brass
Elastomer Type	Nitrile
Max Temp (°F)	150
Min Temp (°F)	Air: -30 Water: 35
Flow Rate	Water: 1.3 GPM Air:12 scfm
Port Size	1/8" FPT" 1/4" FNPT
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	2.86"
Product Length	1-1/2"
Product Weight (lbs)	0.9
