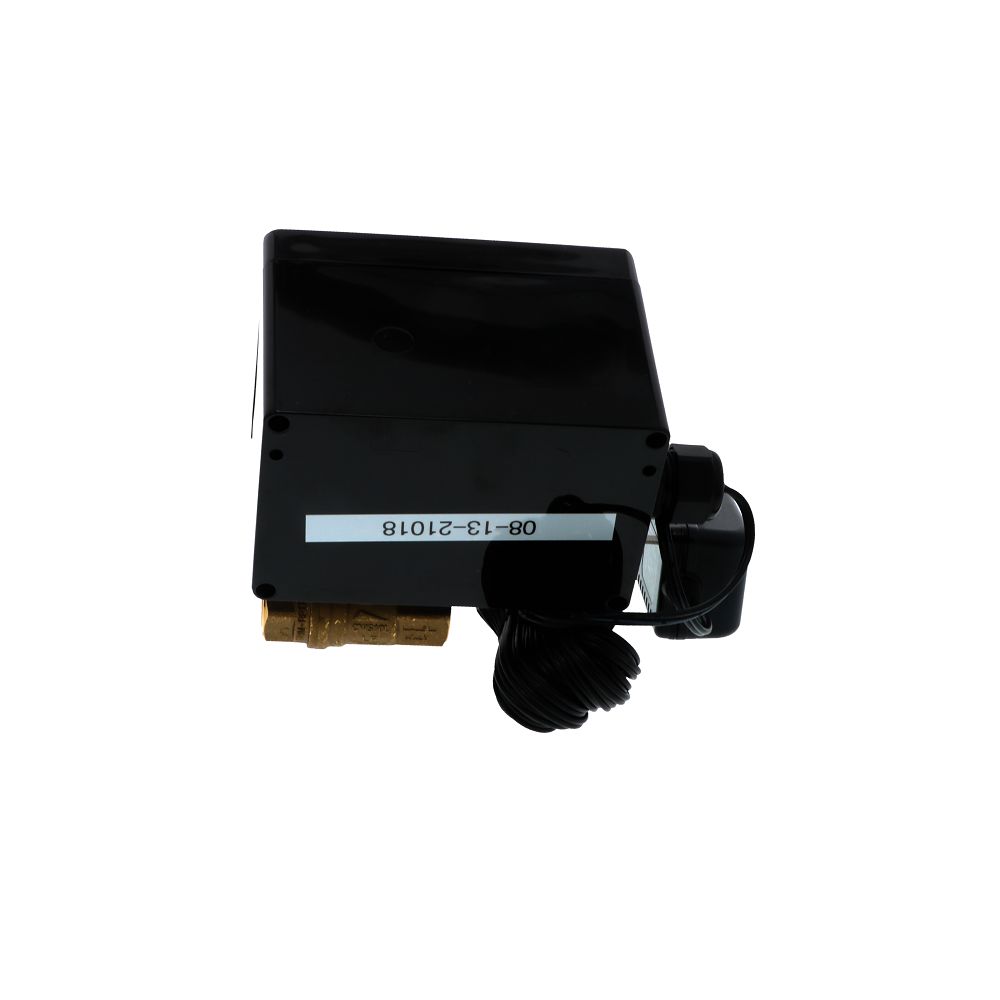

Rusco/Vu-Flow Hot Water Resistant Flush Valve

The AFV RUSCO Filter Flush Valve uses a motorized ball valve to automatically drain water and small debris from filters. The AFV-RUSCO is designed for applications such as irrigation, livestock, marine, laboratories, industrial, and household uses. If the filter is flushed at least once daily with an adjustable flush time of 5 minutes or more than dirt and debris is flushed to the drain. The valve automatically opens up every 24 hours (or any other specific time).
Discharge Time and Volume. The AFV-RUSCO Automatic Flush Valve features a discharge volume of 3.1 gallon per cycle at 80 PSI. The discharge time is not flexible, and has been factory set 7 seconds.
LCD Display. The AFV-RUSCO Automatic Flush Valve has a mounted LCD display and control panel which allows the rate of flushing to be control by the user.
Rusco Automatic Flush Valve Specifications:

• Seals: NEMA 4

• Enclosure: NEMA 4

• Full Port Ball Valve: 1/2" NPT

• Adjustable Cycle Time: 1 min - 14 days

• Lead-Free Brass: NSF/ANSI 372

• Please Click here to purchase the AFV Kit

Filter and Fittings Not Included
Rusco Automatic Flush Valve Warranty Information:
The components of all RUSCO products are warrantied for a period of 12 months from date of original sale. RUSCO’s liability is solely limited to the original cost of the part. RUSCO will not be responsible for incidental or consequential damages. No agent or representative has the authority to waive or alter this printed warranty.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	35-165 °F
Amps	0.83 Amps
Inlet Connection	1/2" FPT
Max Pressure (Psi)	200
Outlet Connection	1/2" FPT
Power Source	120V AC
Size	1/2"
Connection Type	Female (FPT)
Type	Flush Valve
Voltage	12VDC
Shipping Dimensions
Shipping Length	7.5 in.
Shipping Width	5.5 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5.25 in.
Product Weight (lbs)	3.395
