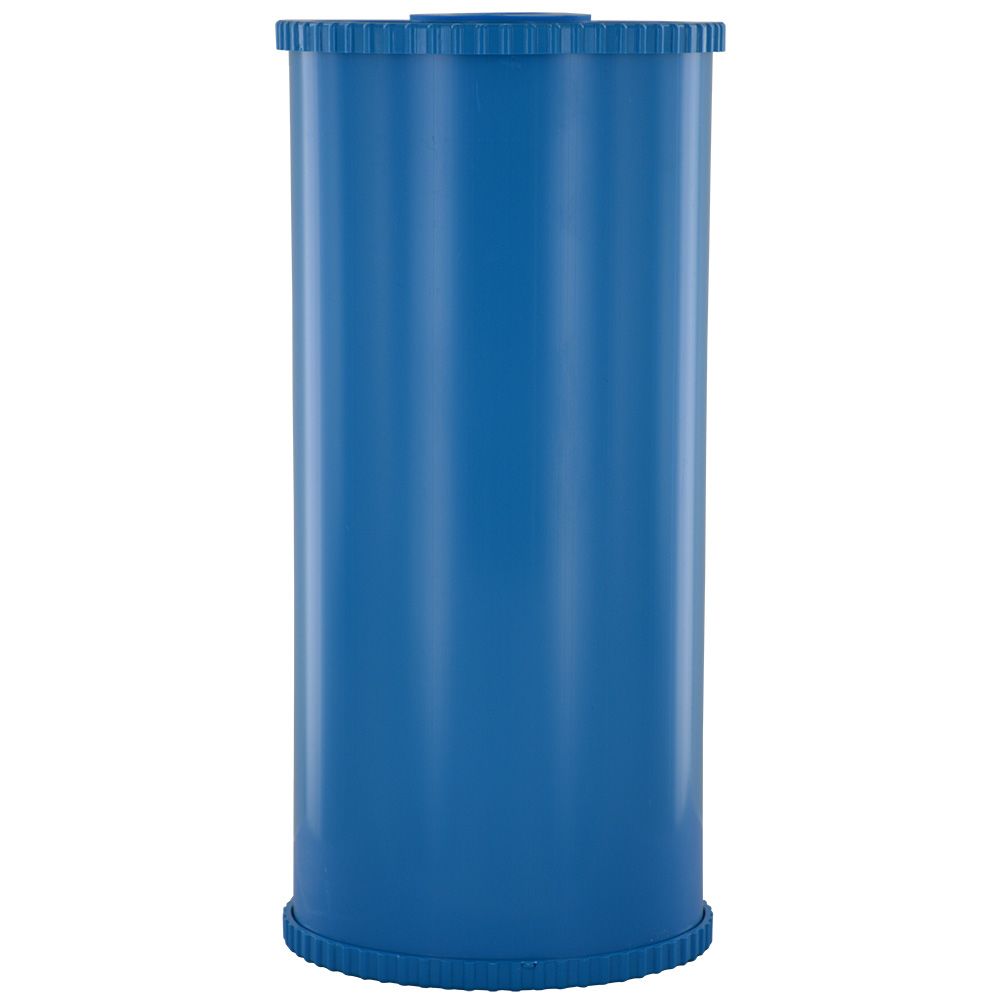

Aries 10" x 4-1/2" BB SC Grade Mixed Bed DI Cartridge

The Aries AF-10-4010-BB Mixed Bed DI Cartridge uses ResinTech® mixed bed resins to ensure high purity, demineralized water. These resins, combined with the cartridge manufacturing of Aries FilterWorks, provide consistent high purity water quality with the backing of a strict quality control program. Mixed bed resins are available in various grades depending upon the requirements of the application. Aside from the standard characteristic of demineralization, resin options include low odor (for humidification), and low TOC (for sensitivity to organics). These cartridges are ideal for processes requiring high purity water for washing, rinsing, scale control, or “final polishing”.

Specifications:

• Media: Semi-conductor grade mixed bed DI resin
• Dimensions: 10" length x 4.5" diameter
• Temperature Rating: 40°F - 90°F
• Recommended Flow Rate: 0.8 GPM

Applications:

• Boiler make-up water
• Circuit board printing
• Cosmetics
• Humidification systems
• Jet water sprayers
• Lasers
• Medical/laboratory use
• Pharmaceutical use
• Power generating equipment
• Recirculating/cooling towers
• Steam and humidification
• Steam processors

NOTE: Also known as Aries AF-10-4010-BB.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Commercial-Industrial Post RO
Capacity	1,250 Grains
Max Pressure (Psi)	125
Max Temp (°F)	100 °F
Micron Rating (Nominal)	25 µm
Min Pressure (Psi)	20
Min Temp (°F)	40 °F
Cap Material	ABS
Cartridge Style	Drop-in
Diameter	4.5"
Filter Type	Deionization (DI)
Flow Rate	0.8 GPM
Media Type	Mixed Bed DI Resin Semi-Conductor Grade
Origin	U.S.A.
Shipping Dimensions
Shipping Length	9.75 in.
Shipping Width	4.625 in.
Shipping Height	4.625 in.
Product Weight & Dimensions
Product Height	4.625
Product Length	9.75
Product Width	4.625
Product Weight (lbs)	3.24
