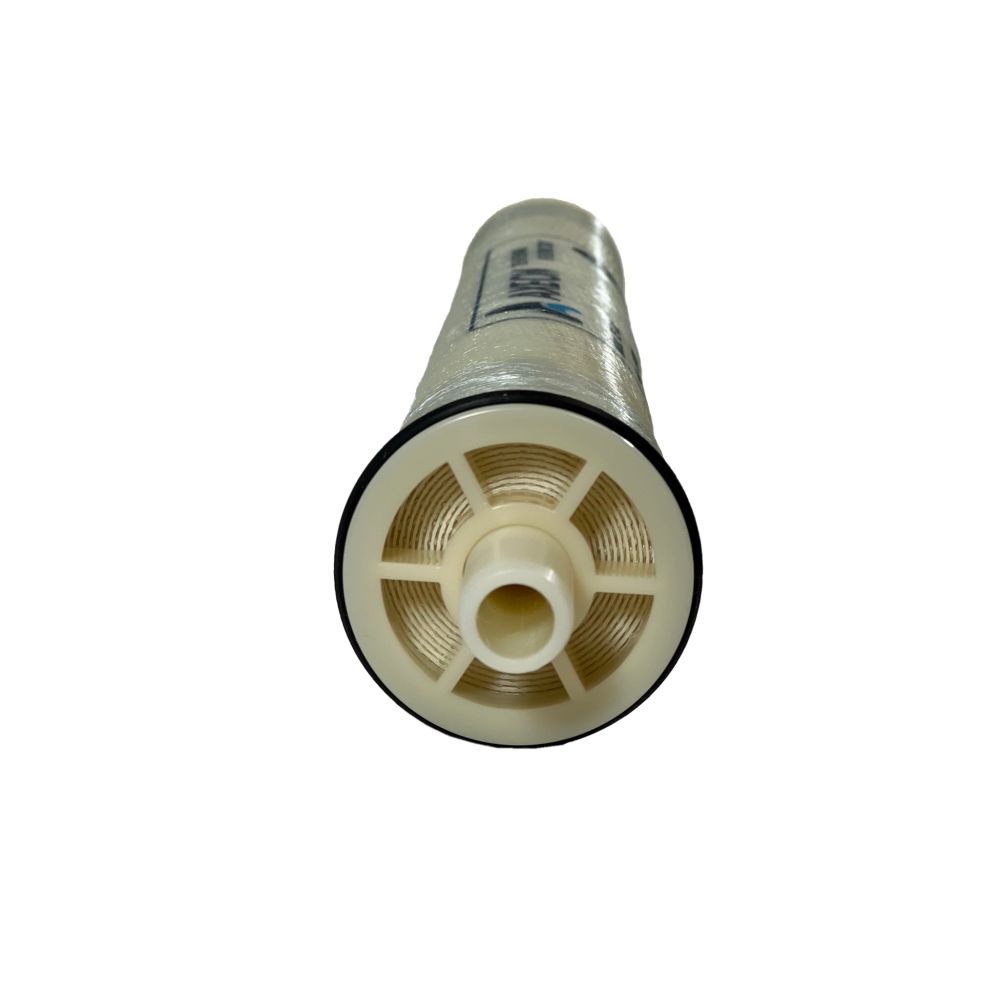

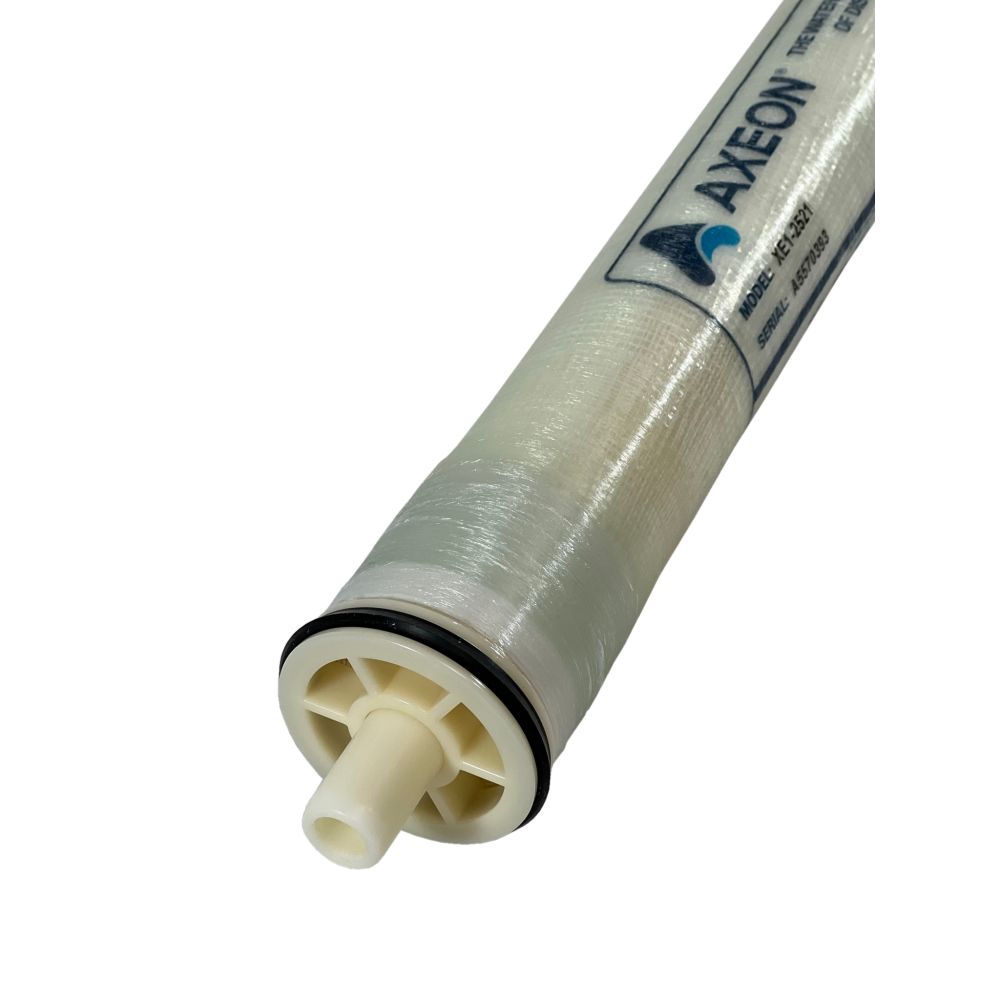

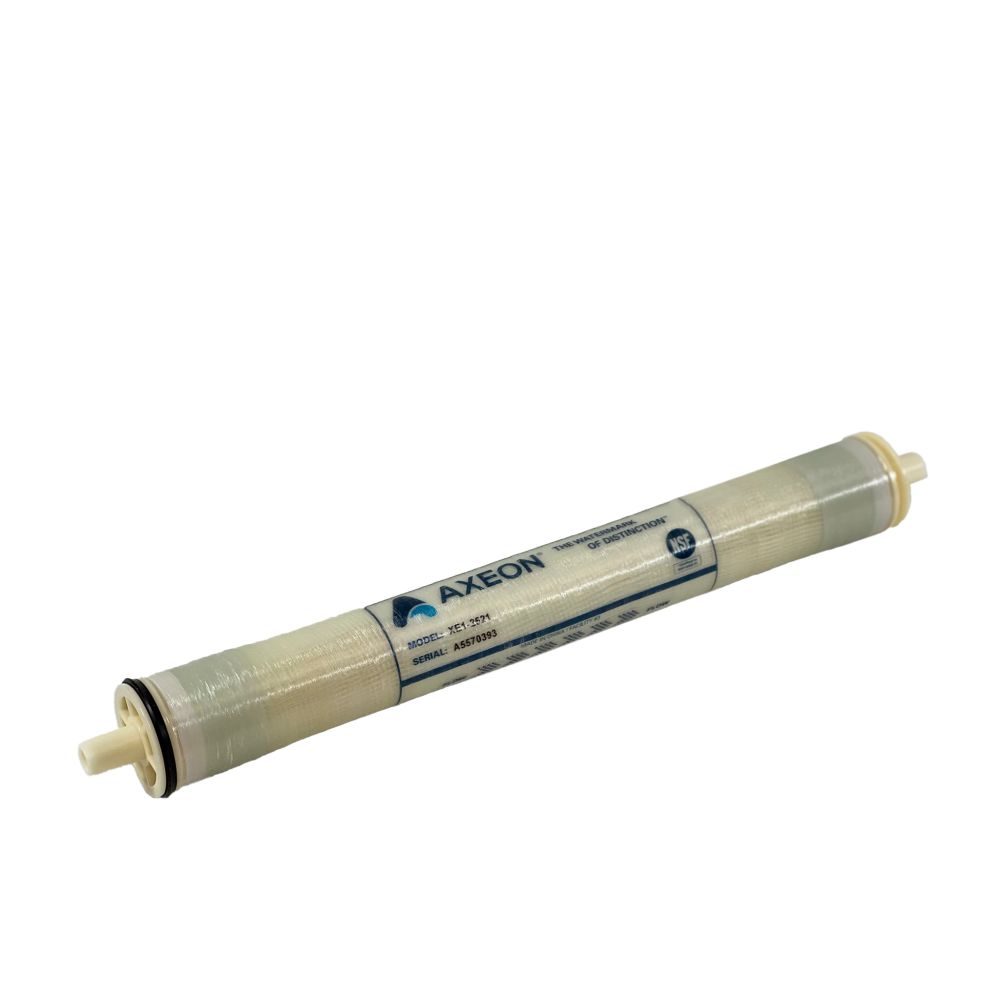

AXEON XE1-2521 300 GPD RO Membrane Element

The AXEON XE1-2521 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The XE1-2521 RO membrane offers exceptional performance and extra energy savings by operating at a lower applied pressure of 100 psi and providing a nominal rejection rate of 99.2%. AXEON XE1 Series membranes are fiberglass wrapped and manufactured in a state-of-the-art ISO-9001 compliant automated facility providing consistent qualtiy.
Specifications:

• Permeate Flow Rate: 300 gallons per day
• Membrane Type: Polyamide Thin-Film Composite
• Applied Pressure: 100 psi
• Dimensions: 2.5" x 21"
• Chlorine Tolerance: 0 ppm
• Maximum Operating Temperature: 113° F
• Applications: Extra Low Energy, Brackish Water
• Comparable to the AXEON HF4-2521

AXEON RO membranes are dry packed

Compatible with:

Desal Membranes	AK2540TF, 1206802, AK2540FF, 1206800
Filmtec Membranes	XLE-2540

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water
Average Nacl Rejection	99.2%
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	100 PSI
Inner/Outer Wraps	Fiberglass
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	600 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	96%
Permeate Flow Rate	300 gpd
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	15%
Diameter	2.4"
Shipping Dimensions
Shipping Length	22.5 in.
Shipping Width	3 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Length	21"
Product Width	2.5"
Product Weight (lbs)	3
