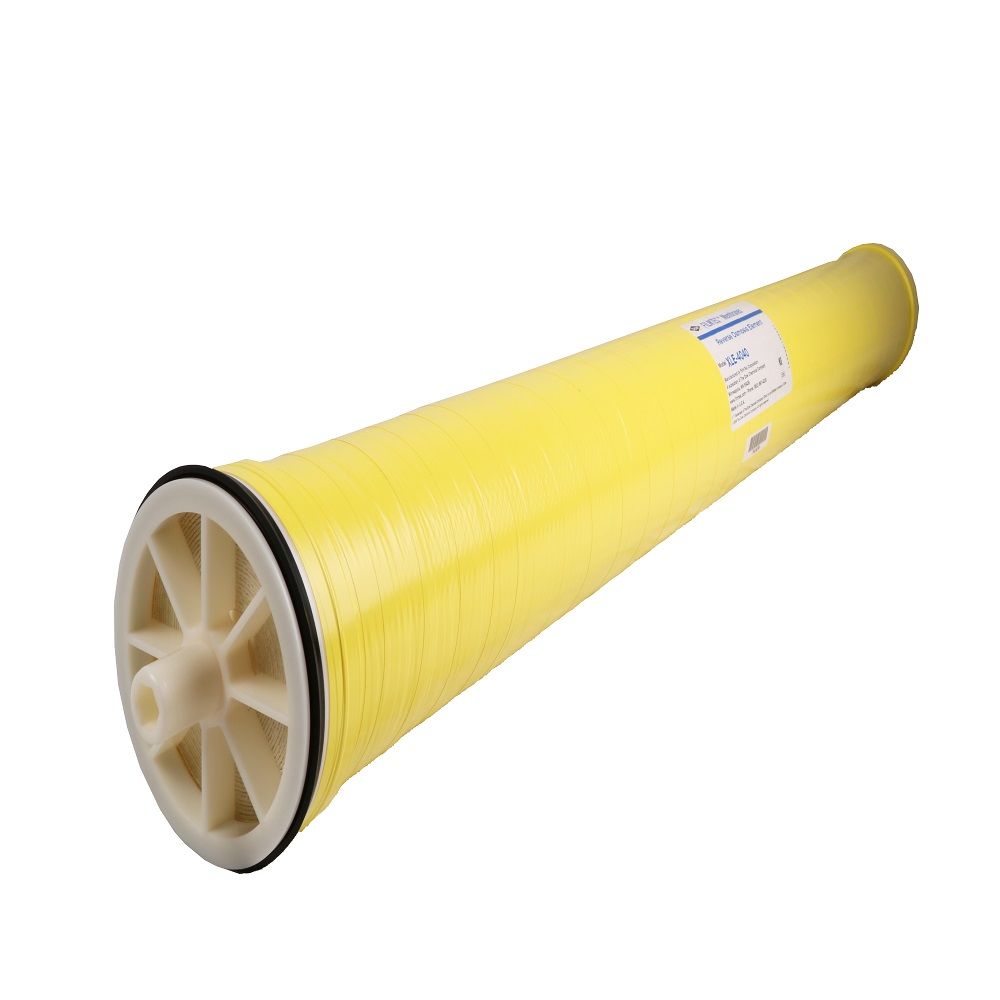

Filmtec XLE-4040 Tap Water Extra Low Energy 2600 GPD RO Membrane Element

The Dow FILMTEC XLE Membranes are engineered to optimize performance at very low applied pressure in commercial applications. The XLE (Extra Low Energy) membranes replace the older TW30LE technology, and are available in both wet and dry packaging for extended shelf-life or rapid start-up.

Features:

• Up to 2600 gallon per day production
• Up to 600 psig
• Fits standard 4" housings or pressure vessels
• Better system performance and economics by operating at very low applied pressure
• Made with a patented technology
• Provides consistent and reliable system performance
• May be cleaned over the widest pH range (pH 1-13) for the most effective cleaning
• The new XLE series of elements replaces TW30LE elements which were made with an older membrane technology

Filmtec RO membranes are wet packed


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	87 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Inlet Pressure	100 PSI
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film Composite
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	14 gpd (3.2)
Max Pressure Drop	13 PSI Differential
Max Pressure (Psi)	600 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	2,600 gpd (9.8
Permeate Tube Diameter	3/4"
Ph Range	2-11
Cartridge Style	Drop-in
Diameter	3.9"
Shipping Dimensions
Shipping Length	41.5 in.
Shipping Width	5 in.
Shipping Height	4.5 in.
Product Weight & Dimensions
Product Height	4.5 in.
Product Length	41.5 in.
Product Width	5 in.
Product Weight (lbs)	6.5
