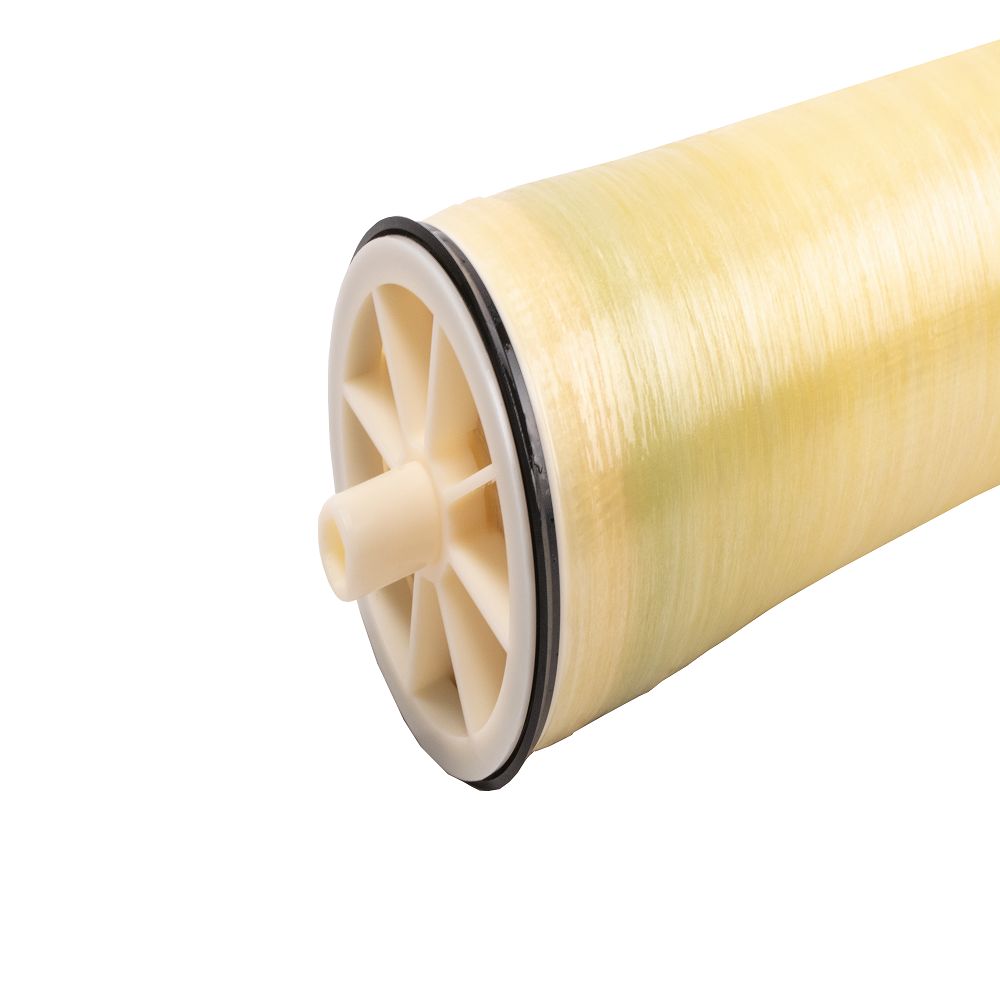

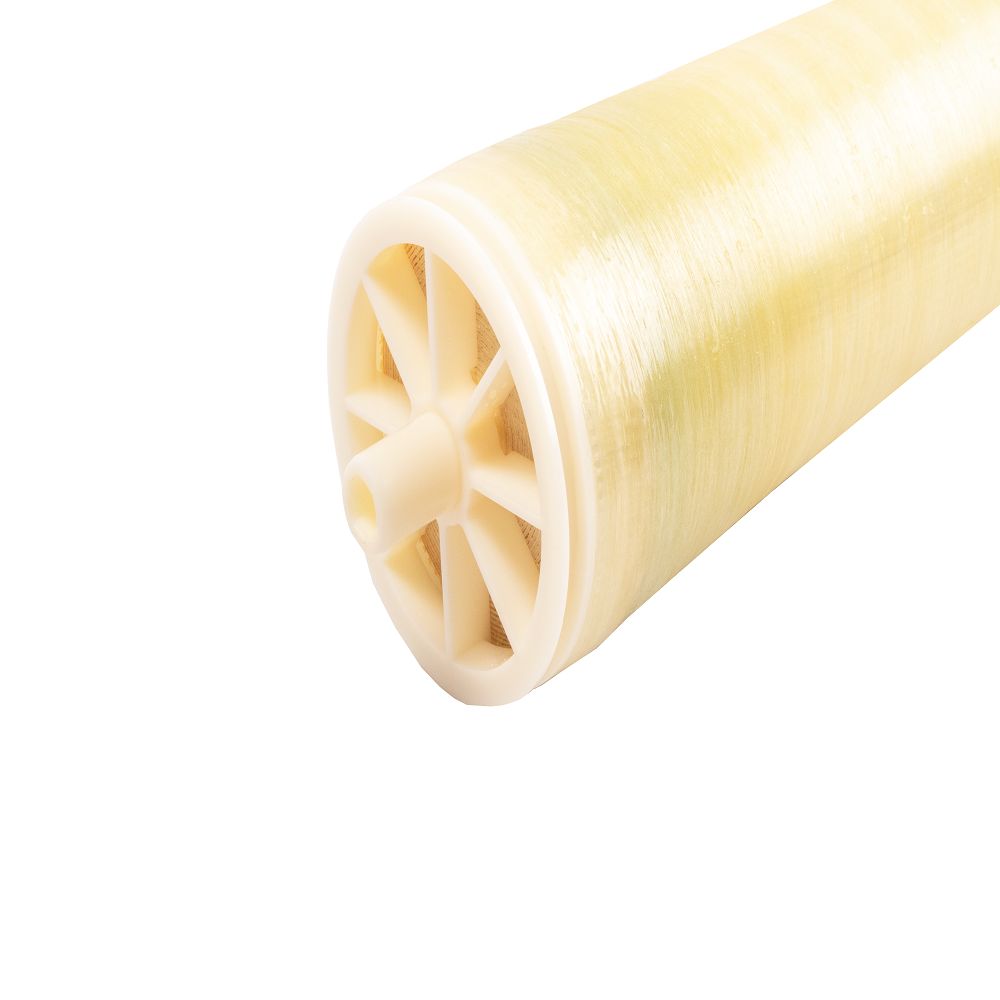

Filmtec NF90-4040 2000 GPD Nano Membrane Element

The Dow FILMTEC NF90-4040 Nanofiltration Membrane is specifically designed for applications with high concentrations of silt, nitrates, iron and organic compounds such as pesticides, herbicides and THM (Trihalomethane gas) precursors, while offering effectiveness even at low operating pressures.

Features:

• Up to 2000 Gallon Per Day production
• Up to 600 SIPG
• Fits Standard 4" Housings or Pressure Vessels
• Nanofiltration Element for Commercial Systems
• Provides high productivity performance while removing a high percentage of salts, nitrate, iron and organic compounds such as pesticides, herbicides and THM precursors
• Low net driving pressure allows the removal of compounds at low operating pressures

Compatible with:

Filmtec Membranes

149983

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	82 sq. ft.
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-12
Direction	Outside - In
Inlet Pressure	70 PSI
Inner/Outer Wraps	Fiberglass
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	16 gpm (3.6 m3/hr)
Max Pressure Drop	15 PSI Differential
Max Pressure (Psi)	600 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	2,000 gpd (7.6)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Cartridge Style	Drop-in
Diameter	3.9"
Shipping Dimensions
Shipping Length	40 in.
Shipping Width	8 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	10.75
