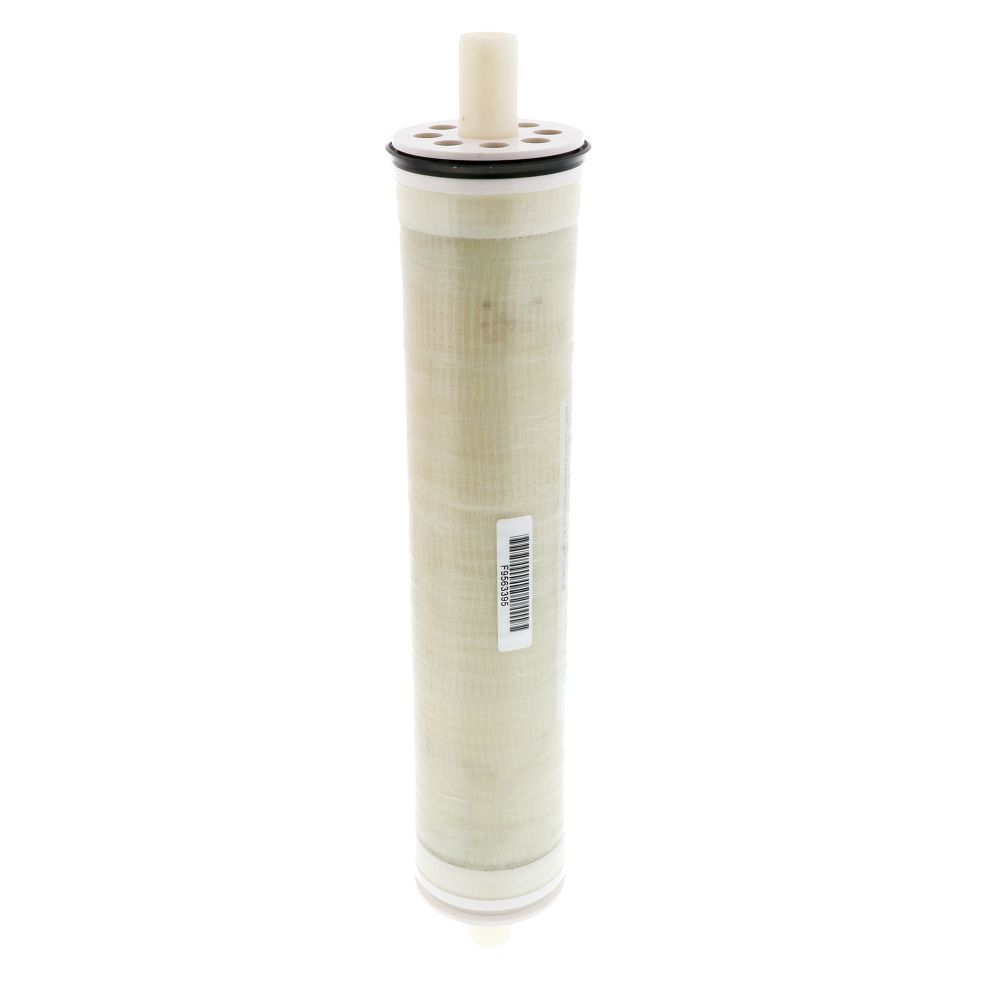

Filmtec SW30-2514 Sea Water 150 GPD RO Membrane Element

The Dow FILMTEC SW30-2514 Sea Water Membrane is specifically designed for applications where the higher TDS (Total Dissolved Solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining a 99.4 percent stabilized salt rejection.
Features:

• Up to 150 Gallon Per Day production
• Up to 800 SIPG
• Fits Standard 2.5" Housings or Pressure Vessels
• Highest flow rates available to meet the water demands of both sea-based and land-based desalinators
• May also be operated at lower pressure to reduce pump size, cost and operating expenses
• Improved FILMTEC seawater membrane combined with automated, precision element fabrication result in the most consistent product performance available

Filmtec RO membranes are wet packed

Compatible with:

Filmtec Membranes

80733

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	6.5 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Inlet Pressure	800 PSI
Inner/Outer Wraps	Fiberglass
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	6 gpd (1.4)
Max Pressure Drop	15 PSI Differential
Max Pressure (Psi)	1000psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	150 gpd (0.6)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Cartridge Style	Drop-in
Change Frequency	5 Years
Diameter	2.4"
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Length	14 in.
Product Weight (lbs)	4
