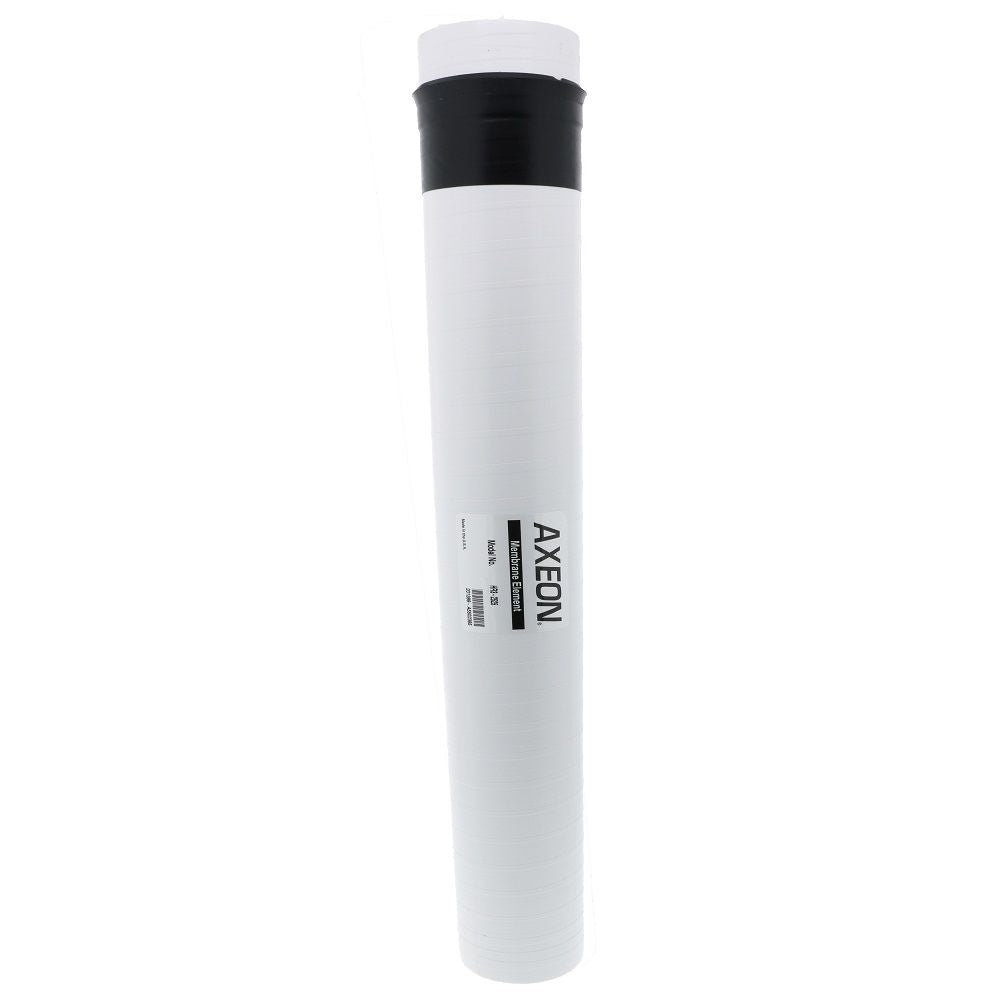

Nimbus Compatible 2.5" x 25" 400 GPD Flush Cut RO Membrane Element

Nimbus Compatible 2.5" x 25" Flush Cut Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The TF-2525F-400 RO membrane feature a protective ABS shell, and are 100% vacuum integrity tested. The polyamide thin-film used in the TF-2525F-400 membrane is manufactured by a major US membrane film manufacturer.

Features:

• Permeate Flow Rate: 400 gallons per day
• Membrane Type: Polyamide Thin-Film
• Applied Pressure: 225 psi
• Dimensions: 2.5" x 25"
• Minimum Concentrate Flow Rate: 5:1
• Chlorine Tolerance: 0 ppm
• Maximum Operating Temperature: 113° F
• Applications: Tap Water, Brackish Water

Compatible with:

AXEON Membranes	HR3-2525, 201399
Nimbus	100721, 100723, SG2525TH, 100716

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Average Nacl Rejection	0.99
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Inlet Pressure	225 PSI
Inner/Outer Wraps	Tape
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Ph Range	2 - 11
Cartridge Style	Drop-in
Diameter	2-1/2"
Origin	U.S.A.
Shipping Dimensions
Shipping Length	27.88 in.
Shipping Width	3 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Height	3 in.
Product Length	27.88 in.
Product Width	3 in.
Product Weight (lbs)	2.028125
