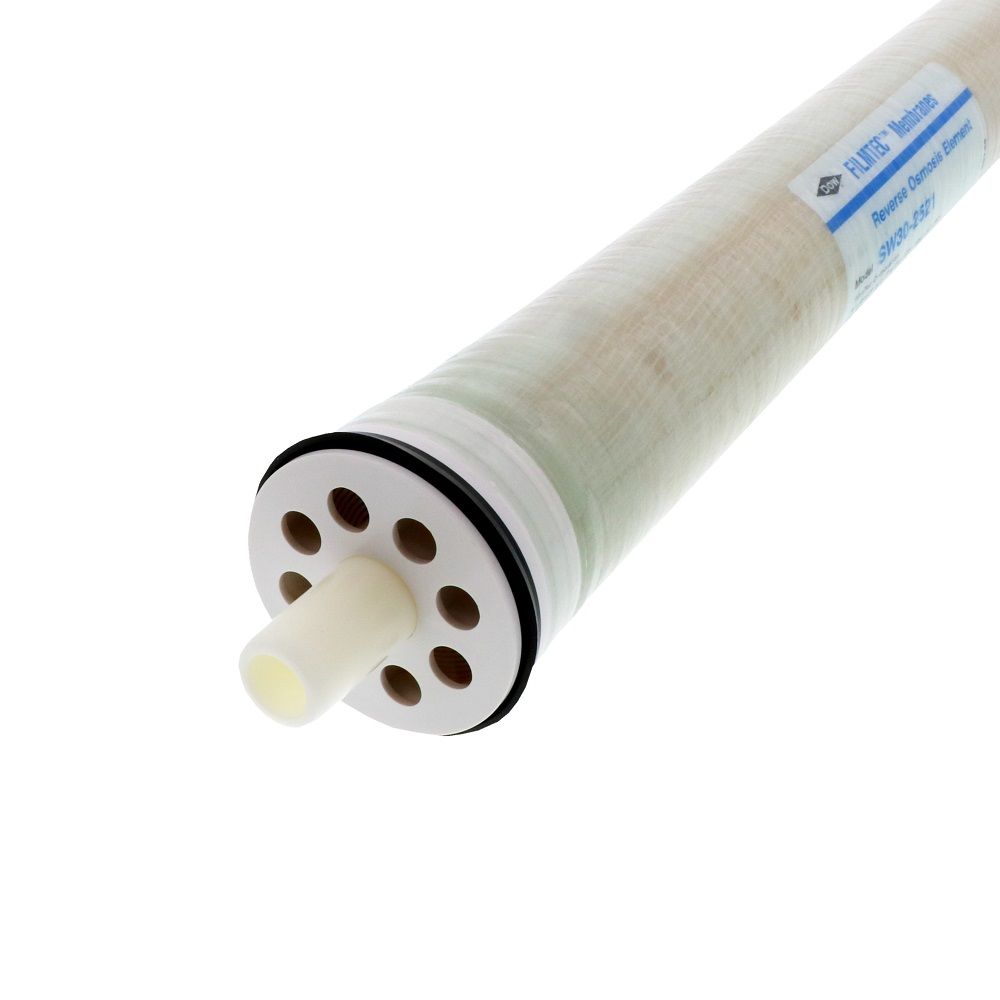

Filmtec SW30-2521 Sea Water 300 GPD RO Membrane Element

The Dow FILMTEC SW30-2521 Sea Water Membrane is specifically designed for applications where the higher TDS (Total Dissolved Solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining a 99.4 percent stabilized salt rejection.

Features:

• Up to 300 Gallon Per Day production
• Up to 800 SIPG
• Fits Standard 2.5" Housings or Pressure Vessels
• Dow Filmtec SW30-2521 reverse osmosis membranes offer high productivity while maintaining excellent salt rejection.
• Filmtec Desalination SW30-2521 reverse osmosis elements can be operated at a lower pressure in order to reduce pump size, cost, and operating expenses.
• Filmtec Seawater SW30-2521 RO membrane elements have the highest flow rates available to meet the water demands of both sea-based and land-based desalinators.
• Dow Filmtec Part #80734

Filmtec RO membranes are wet packed


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	13 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Inlet Pressure	800 PSI
Inner/Outer Wraps	Fiberglass
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	6 gpd (1.4)
Max Pressure Drop	15 PSI Differential
Max Pressure (Psi)	1000psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	300 gpd (1.1)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Cartridge Style	Drop-in
Change Frequency	5 Years
Diameter	2.4"
Shipping Dimensions
Shipping Length	21 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Length	21 in.
Product Weight (lbs)	2.1833
