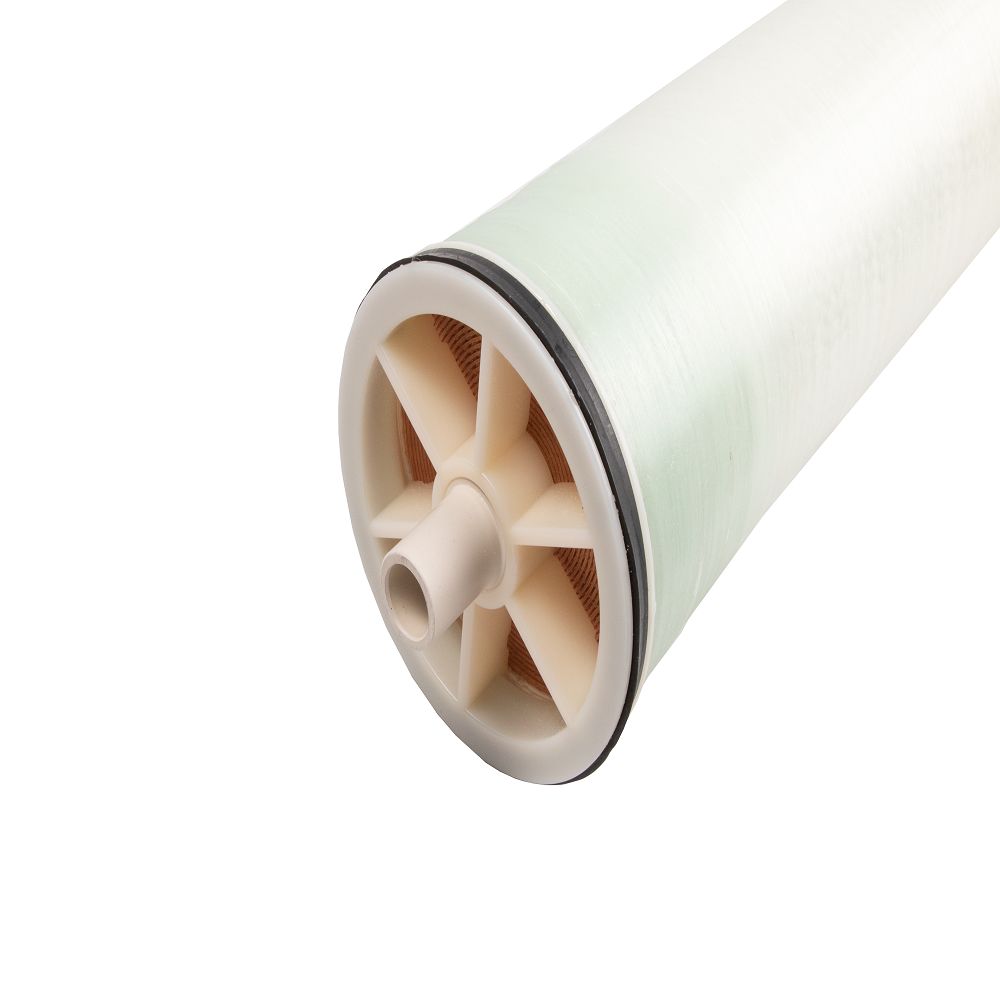

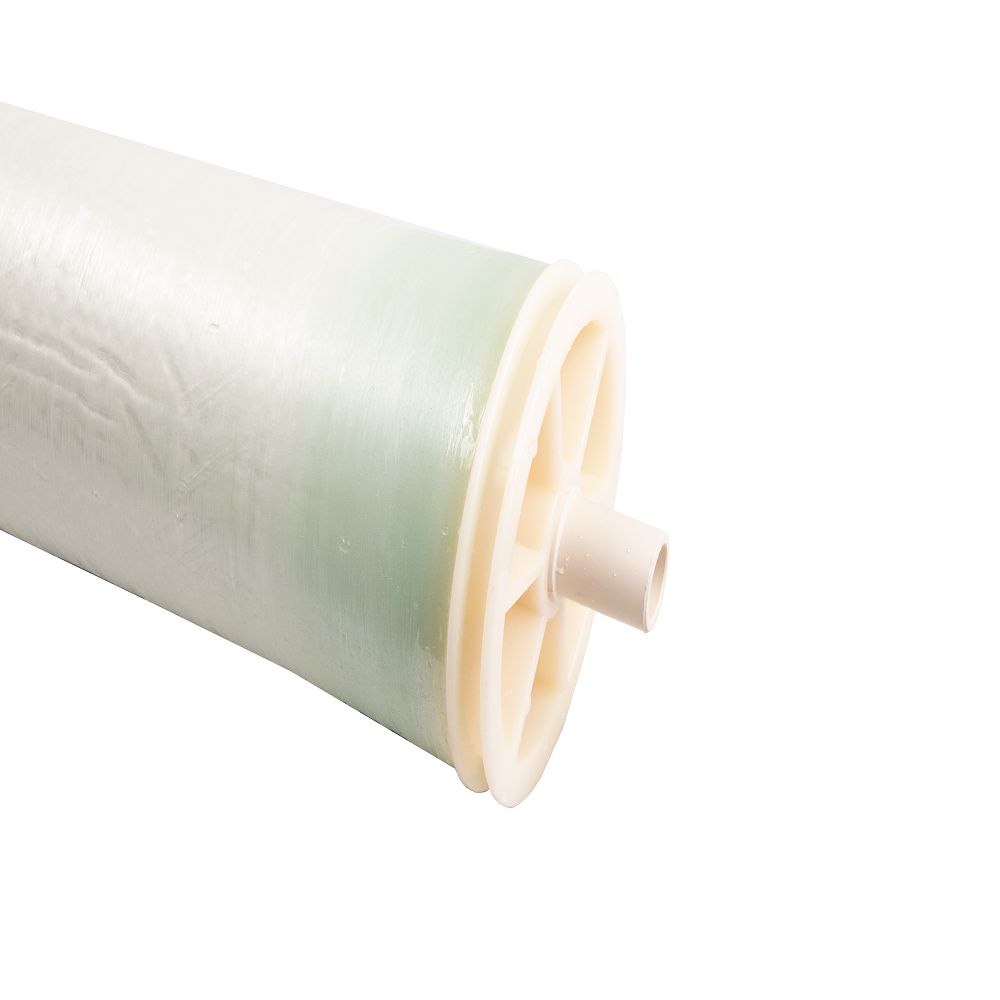

Toray TM810V 1900 gpd Sea Water Membrane 4 x 40

Toray TM810V 1900 gpd Sea Water Membrane is designed to be used on water sources with high salinity (>10,000 ppm). They can be used in multiple membrane systems to treat sea water for small private or shipboard desalination.

Features:

• Incomparable Chlorine Tolerance. The Toray TM810V Membrane has the greatest chlorine tolerance when compared to other seawater membranes at 0 parts per million (ppm).
• Used in a Variety of Applications. The Toray Sea Water Membrane can be utilized in a variety of applications including sea water, industrial and process water, municipal/potable water, shipboard seawater desalination, and sea water boron removal.

Additional Specifications:

• Permeate Flow Rate: 1900 gpd
• Maximum Pressure: 1200 psi
• Dimensions: 4" x 40"
• Chlorine Tolerance: 0 ppm

Compatible with:

CSM Membranes	RE4040 SHA, RE4040 SHF
Filmtec Membranes	SW30-4040
Hydranautics Membranes	SWC5-4040, SWC5-LD-4040
Koch Membrane Systems	TFC 4040 SW, TFC 4040 HF

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	87 sq. ft.
Average Nacl Rejection	0.99
Cleaning Ph Range	1-12
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	800 PSI
Material Of Construction	Cross-Linked Polyamide
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure Drop	20 PSI Differential
Max Pressure (Psi)	1200 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.995
Permeate Flow Rate	1,900gpd (7.2)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.08
Diameter	4"
Origin	U.S.A.
Shipping Dimensions
Shipping Length	43 in.
Shipping Width	5.75 in.
Shipping Height	5.75 in.
Product Weight & Dimensions
Product Height	5.75 in.
Product Length	43 in.
Product Width	5.75 in.
Product Weight (lbs)	8.95
