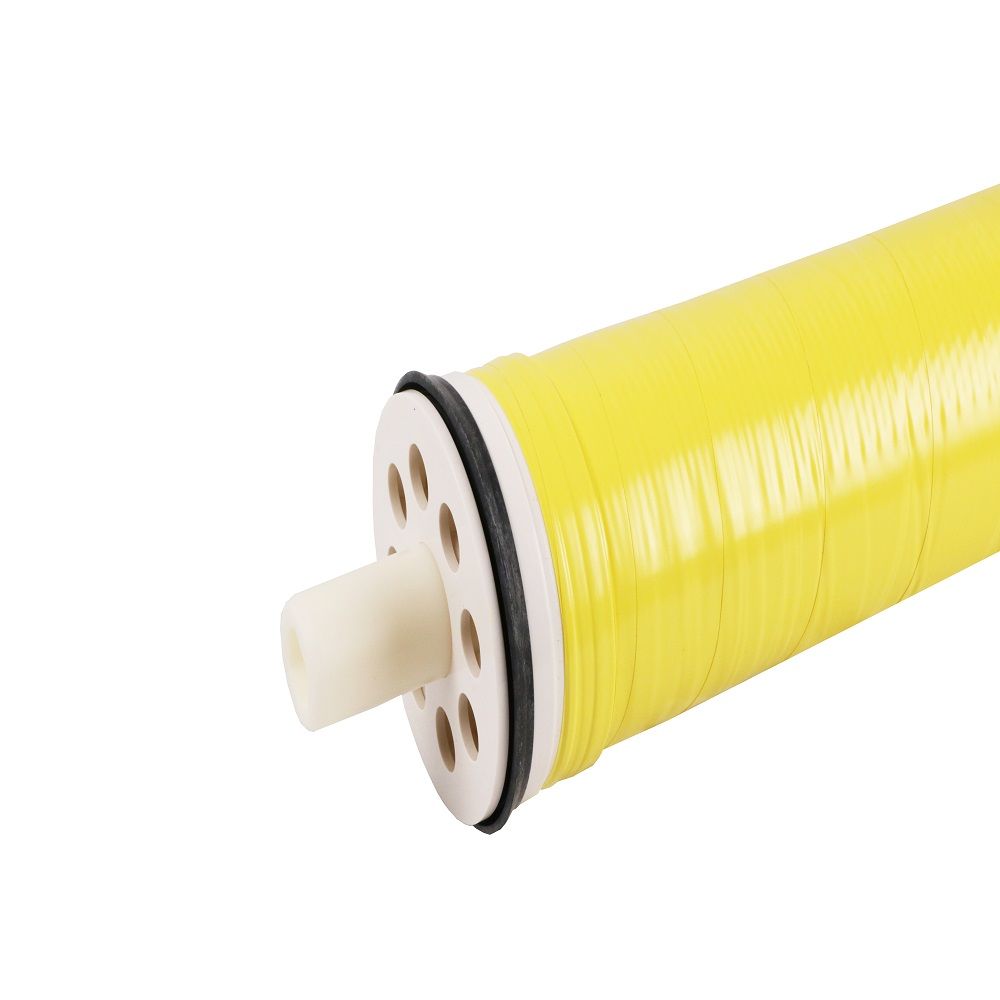

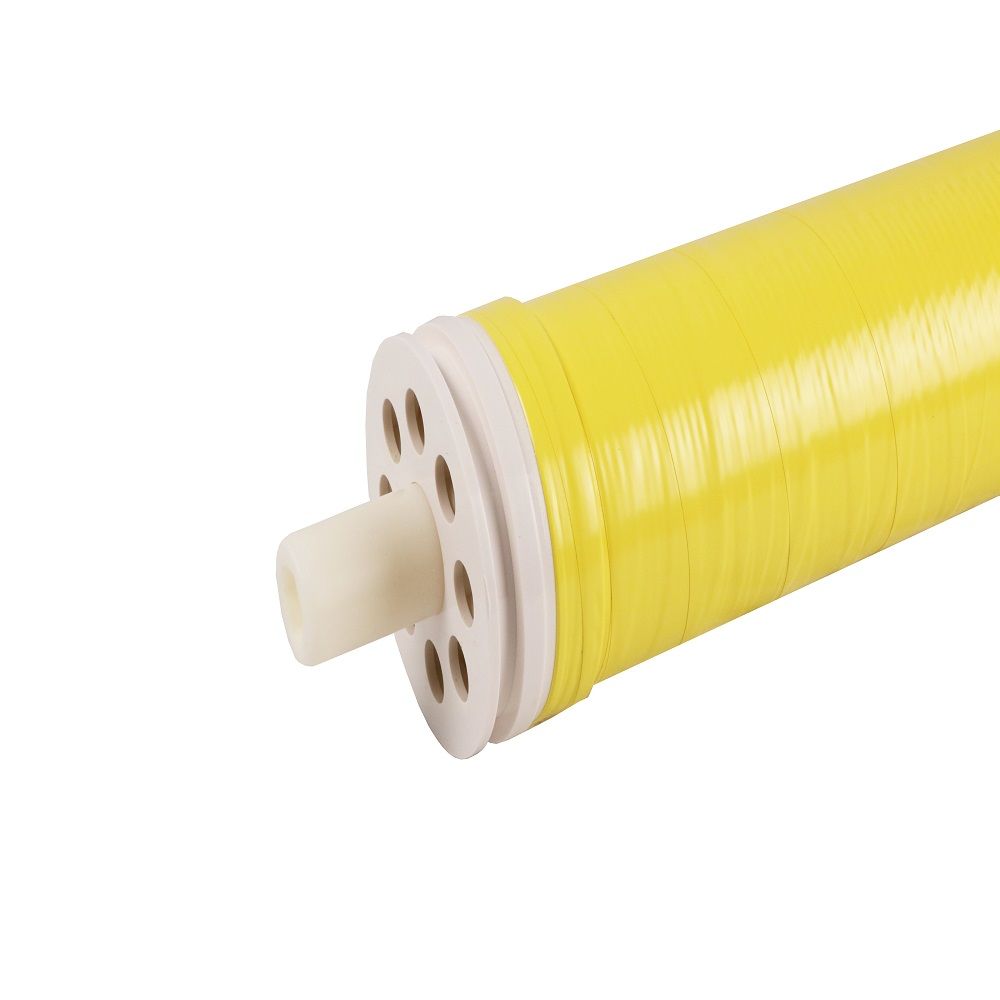

Veolia Osmonics Desal AG2540TM 740 GPD RO Membrane Element

The Veolia Osmonics Desal AG-Series is a family of proprietary thin-film reverse osmosis membrane elements which offer high flux and excellent sodium chloride rejection. Designed for brackish water, AG High Rejection Brackish Membranes are used when operating pressures as low as 200psi and high rejection is desired. These membranes are an industry standard and allow moderate energy savings.

Specifications:

• High Flux and Excellent NaCL Rejection
• Thin-Flim Reverse Osmosis Membrane Element
• Operating Pressures as low as 200 PSIG
• Male End Connections
• Permeate Flow: 740 Gallons Per Day
• Dimensions: 2.5" x 40"
• Feed Spacers: 28 mil
• Outer Wrap: Tape

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	29 sq. ft.
Average Nacl Rejection	0.995
Chlorine Tolerance	1,000 ppm-hrs
Cleaning Ph Range	2-11.5
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	200 PSI
Inner/Outer Wraps	Tape
Material Of Construction	Thin Film Membrane
Max Feed Silt Density Index	<5 SDI Silt Density Index
Max Feed Water Turbidity	<1 NTU Nephelometric Turbidity Units
Max Pressure Drop	12 PSI Differential
Max Pressure (Psi)	450psi
Max Temp (°F)	122 °F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.99
Permeate Flow Rate	710 gpd (2.7)
Permeate Tube Diameter	3/4"
Ph Range	4.0 - 11
Recovery Rate	0.15
Cartridge Style	Drop-in
Diameter	2.4"
Shipping Dimensions
Shipping Length	44.125 in.
Shipping Width	3.75 in.
Shipping Height	3.75 in.
Product Weight & Dimensions
Product Height	3
Product Length	43
Product Width	3
Product Weight (lbs)	3.223
