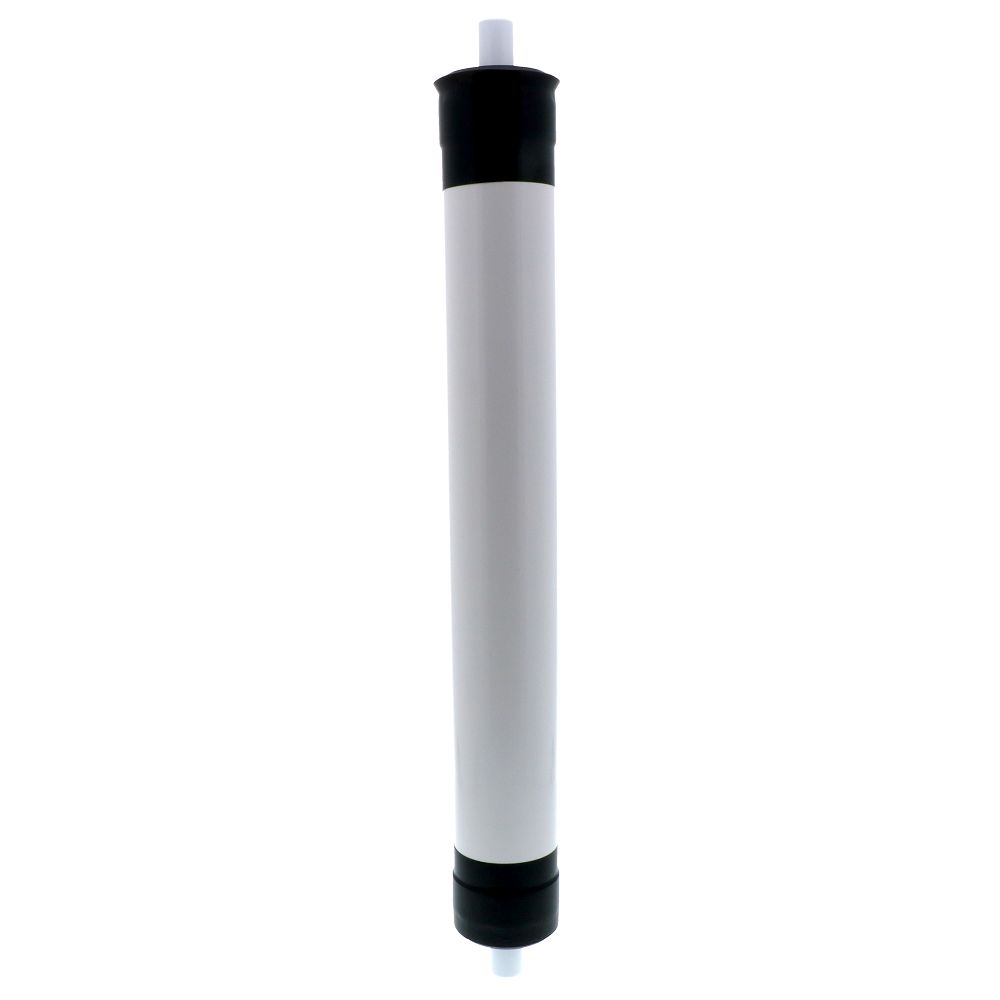

AXEON HR3-2521 250 GPD RO Membrane Element

AXEON HR3-2521 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HR3-2521 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested. The polyamide thin-film used in the AXEON HR3 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:

• Permeate Flow Rate: 250 gallons per day
• Membrane Type: Polyamide Thin-Film
• Applied Pressure: 225 psi
• Dimensions: 2.5" x 21"
• Minimum Concentrate Flow Rate: 5:1
• Chlorine Tolerance: 0 ppm
• Maximum Operating Temperature: 113° F
• Applications: Tap Water, Brackish Water
• Formerly known as RO UltraTec HR3-2521

AXEON RO membranes are dry packed

Compatible with:

Desal Membranes	AG2521TF, 1206719, AG2521FF
Filmtec Membranes	TW30-2521, BW30-2521
Watts	R9614-OSM, W-2521-TW

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water
Average Nacl Rejection	0.99
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Feed Water Temperature	77°F
Inlet Pressure	225 PSI
Inner/Outer Wraps	ABS
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Pressure Drop	30 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Minimum Salt Rejection Cl- (%)	0.96
Permeate Flow Rate	250 gpd / (0.95 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Diameter	2.4"
Shipping Dimensions
Shipping Length	24.75 in.
Shipping Width	3.5 in.
Shipping Height	3.5 in.
Product Weight & Dimensions
Product Length	21 in.
Product Weight (lbs)	1.864
