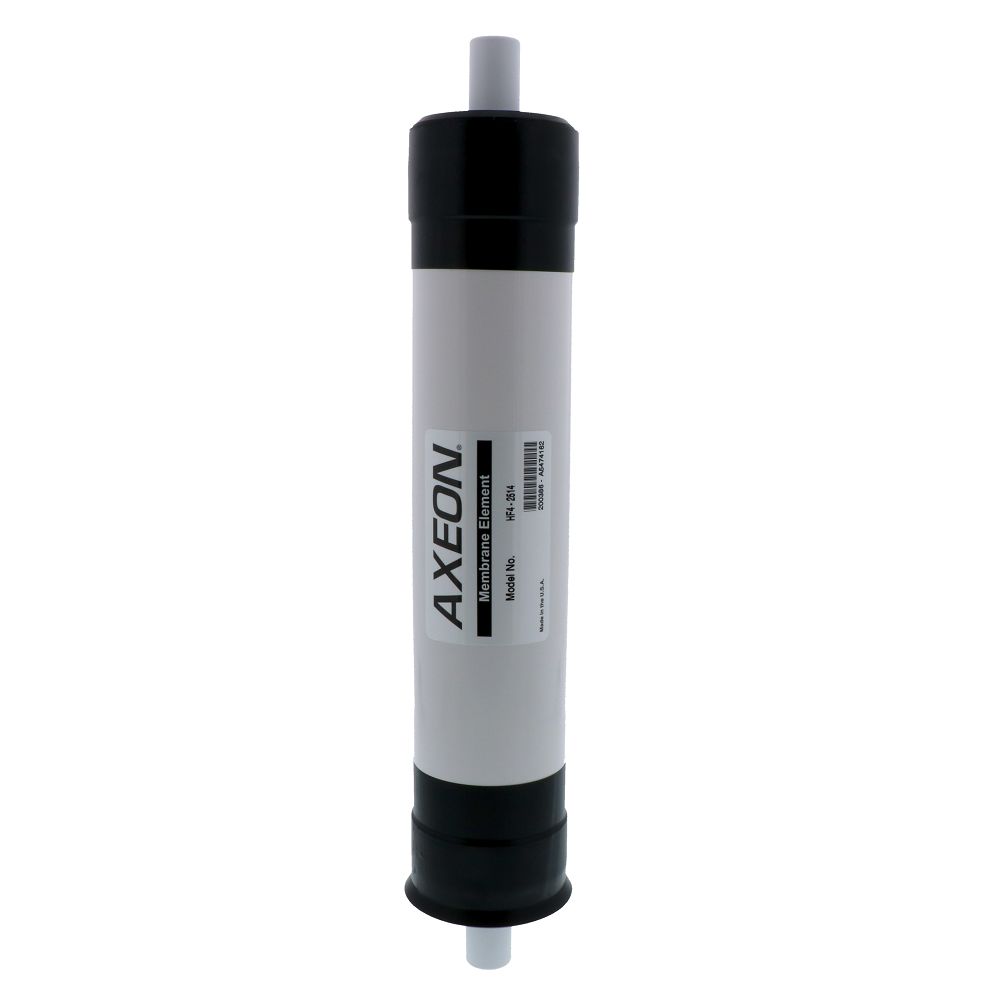

AXEON HF4-2514 225 GPD RO Membrane Element

The AXEON HF4-2514 Reverse Osmosis Membranes are one of the industry´s most reliable and highest performing reverse osmosis elements.The HF4-2514 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested. The polyamide thin-film used in the AXEON HF4 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:

• Permeate Flow Rate: 225 gallons per day
• Membrane Type: Polyamide Thin-Film
• Applied Pressure: 100 psi
• Dimensions: 2.5" x 14"
• Minimum Concentrate Flow Rate: 5:1
• Chlorine Tolerance: 0 ppm
• Maximum Operating Temperature: 113° F
• Applications: Extra Low Energy, Brackish Water
• Formerly known as RO UltraTec HF4-2514

AXEON RO membranes are dry packed

Compatible with:

Desal Membranes	AK2514TF, 1220978
Axeon Water	200374

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water
Average Nacl Rejection	0.98
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	100 PSI
Inner/Outer Wraps	ABS
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.96
Permeate Flow Rate	225 gpd / (0.85 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Diameter	2.4"
Shipping Dimensions
Shipping Length	15.5 in.
Shipping Width	3 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Height	3 in.
Product Length	15.5 in.
Product Width	3 in.
Product Weight (lbs)	1.256
