AXEON TFM-75 TFC Residential RO Membrane 75 GPD

The AXEON Residential Polyamide Thin Film Composite Membrane offer high performance and reliability and consistent quality. AXEON residential membranes operate as low as 50 psi and can yield up to 20% more safe, healthy drinking water than other membranes that operate at 65 psi.

Features:

• 75 Gallons Per Day
• Operates as low as 50 psi
• TFC (Thin Film Composite) Membrane is for use with non-chlorinated water
• Individually tested and sanitized
• Certified by NSF International against NSF/ANSI Standard 58 for material requirement

AXEON TFC-75 Residential Reverse Osmosis Membrane TE-1812-75 Specifications

AXEON RO membranes are dry packed

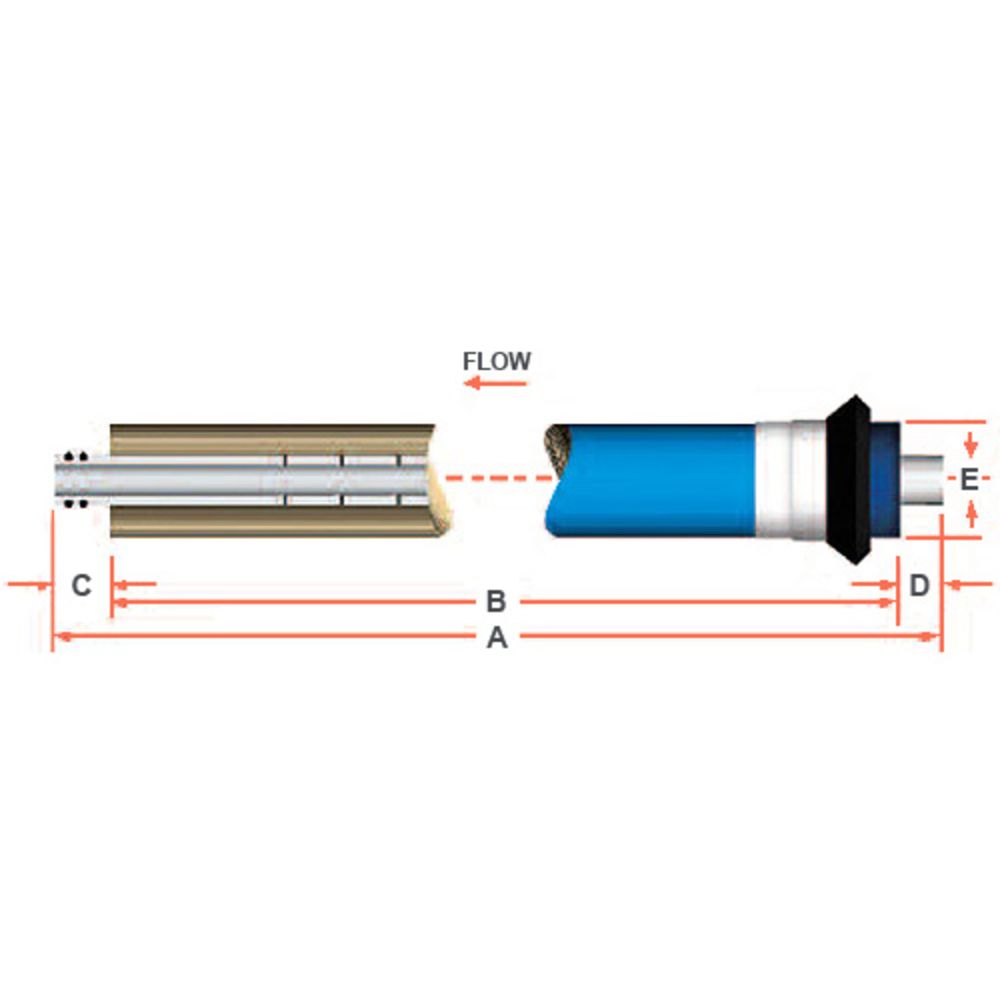

A	B	C	D	E
11.74" (298.2)	10.00" (254)	.86" (21.84)	.93" (23.62)	1.5" (38.1)

Compatible with:

APEC	RO-45, RO-90, RO-Perm, RO-Pump
Desal Membranes	TFM-75, 1204487
Filmtec Membranes	TW30-1812-75, 339146, BW60-1812-75
Pentair Water	TLC-75, 555693
PurePro	TW30-1812-80
GE Water	1204487

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Chlorine Tolerance	0 ppm
Direction	Outside - In
Inlet Pressure	60 psi
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure (Psi)	300 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	75 (11.83) GPD
Ph Range	2 - 11
Cartridge Style	Drop-in
Diameter	1.77"
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Shipping Dimensions
Shipping Length	11.74 in.
Shipping Width	2.5 in.
Shipping Height	2.5 in.
Product Weight & Dimensions
Product Height	2.5 in.
Product Length	11.74 in.
Product Width	2.5 in.
Product Weight (lbs)	0.03125
