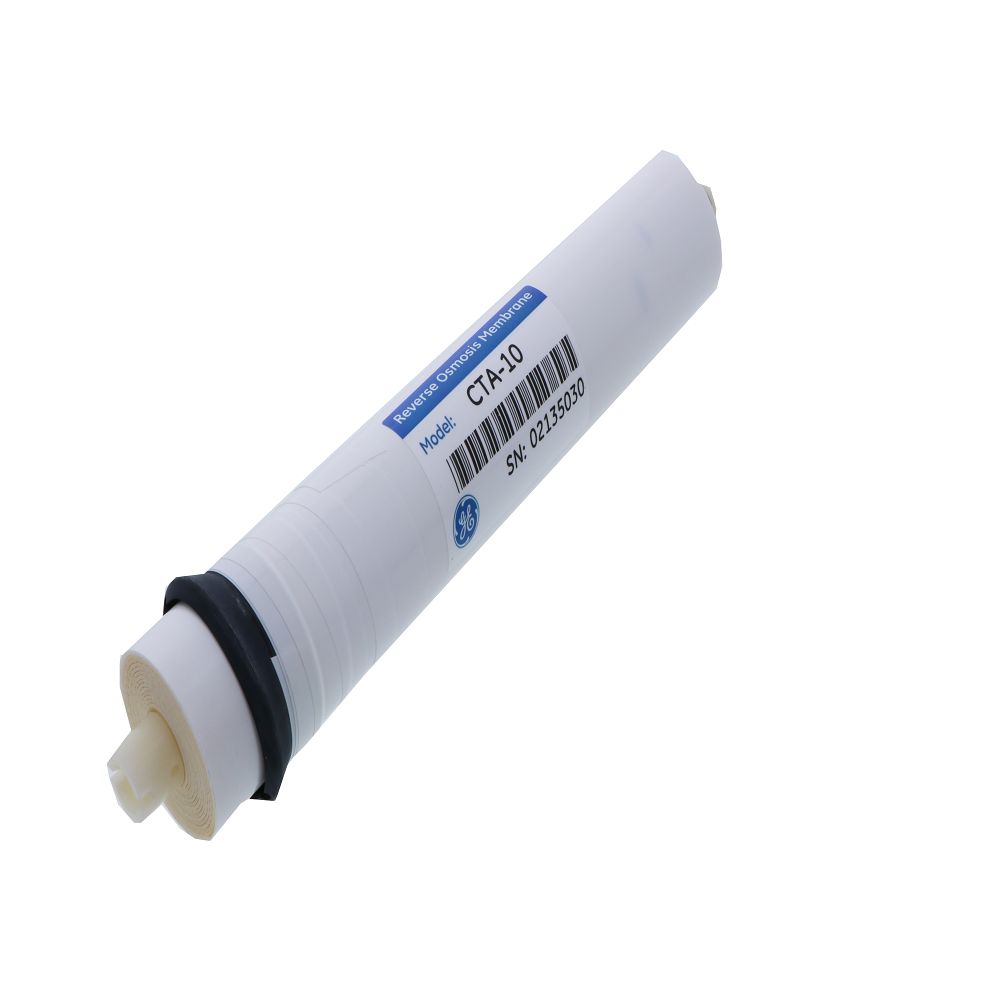

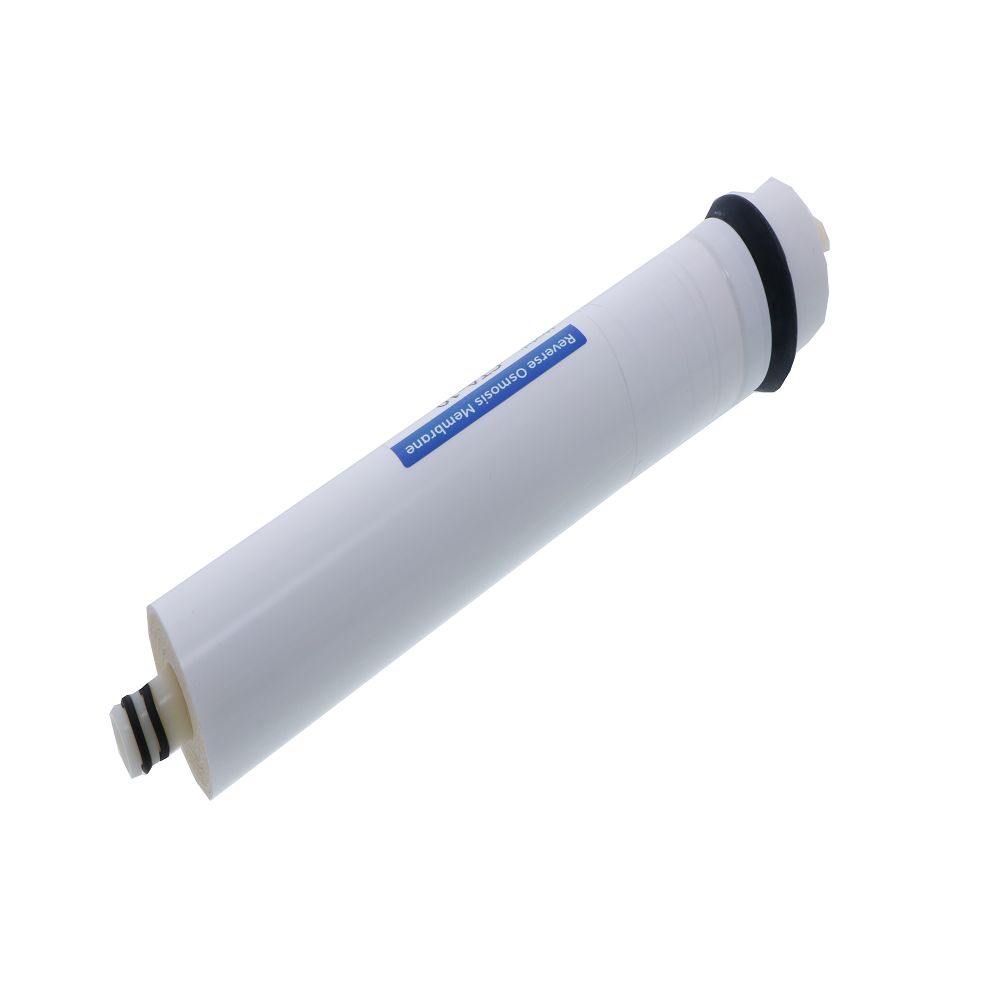

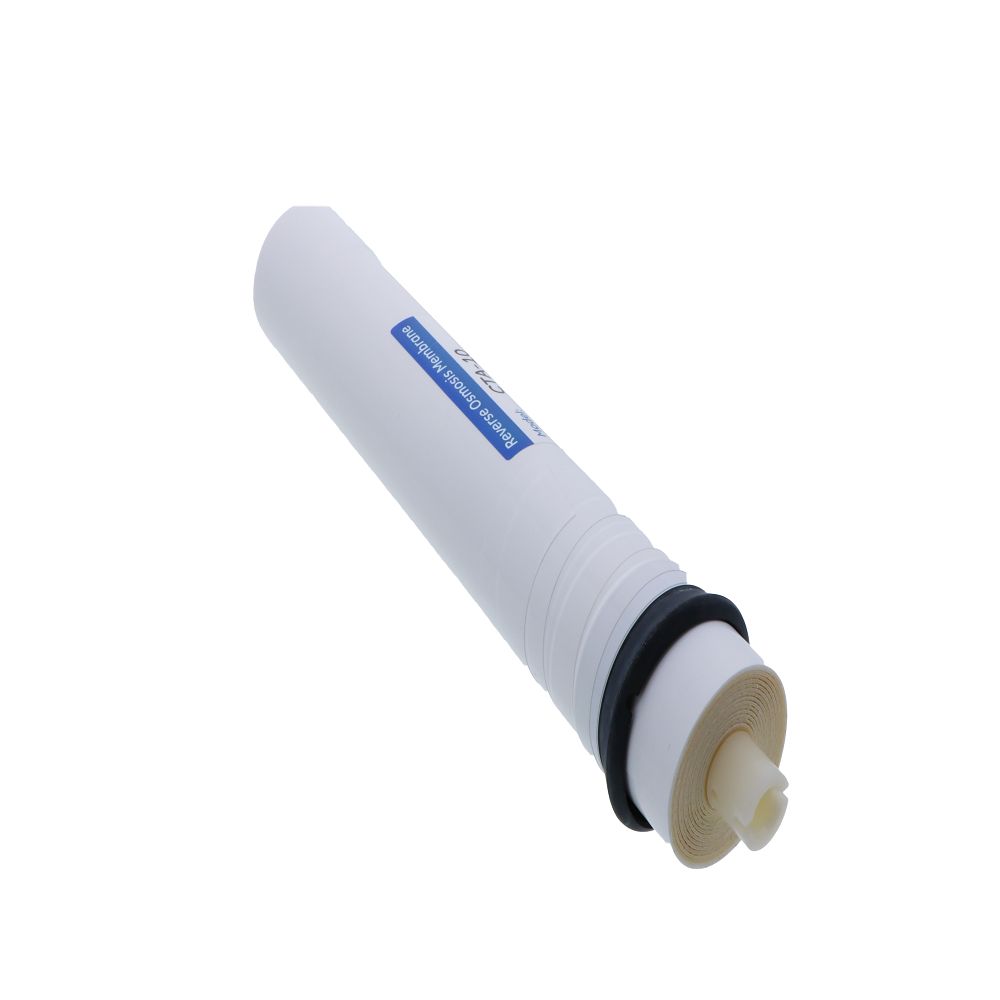

Veolia Osmonics Desal CTA-10 RO Membrane Element

Veolia Osmonics Desal CTA-10 RO Membrane-Separation Technology employs crossflow filtration where captured impurities on the membrane are constantly swept away by the concentrate stream. This continuously cleaning prolongs membrane life reducing maintenance costs. In common applications, the RO membrane element, within a pressure vessel, accepts inflow pressurized saline feedwater. Crossflow filtration across the membrane then divides the flow into two outflow streams: the cleansed permeate feed and the concentrate or reject stream.

Residential Applications:

• Purify varying qualities of saline water

Commercial Applications:

• Drinking water for restaurants
• Drinking water vending machines
• Aquarium water treatment
• Softened water for homes, hotels, commercial laundries and car washes
• Post-treatment of deionized water
• Pure water for pharmaceuticals, laboratories and electronics
• Hemodialysis
• Oil/water separation

Element Membrane Diagram (not the encapsulated model):

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Average Nacl Rejection	0.93
Direction	Outside - In
Inner/Outer Wraps	Tape
Material Of Construction	CA (Cellulose Acetate)
Membrane Type	Spiral Wound
Permeate Tube Diameter	0.68"
Cartridge Style	Drop-in
Change Frequency	12-18 Months
Diameter	1.83"
Flow Rate	10 GPD
Origin	China
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Length	11-3/4"
Product Weight (lbs)	4.25
