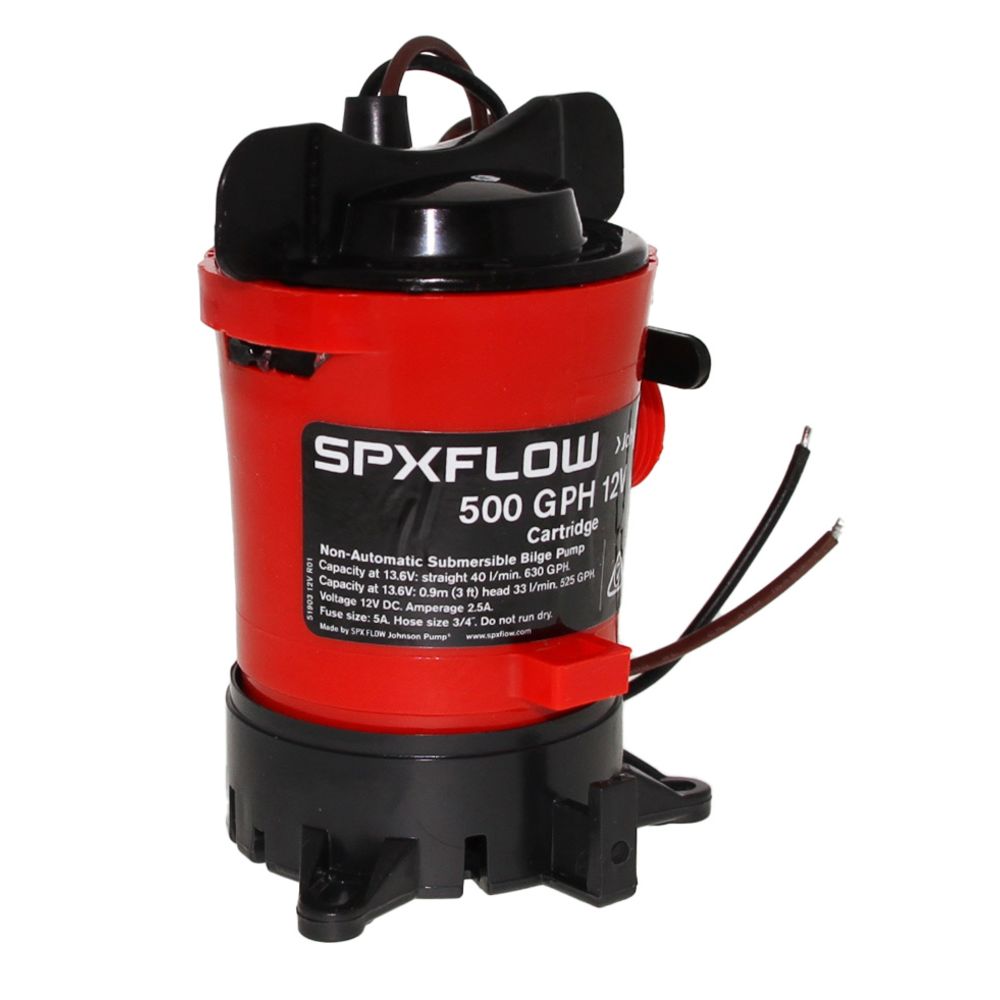

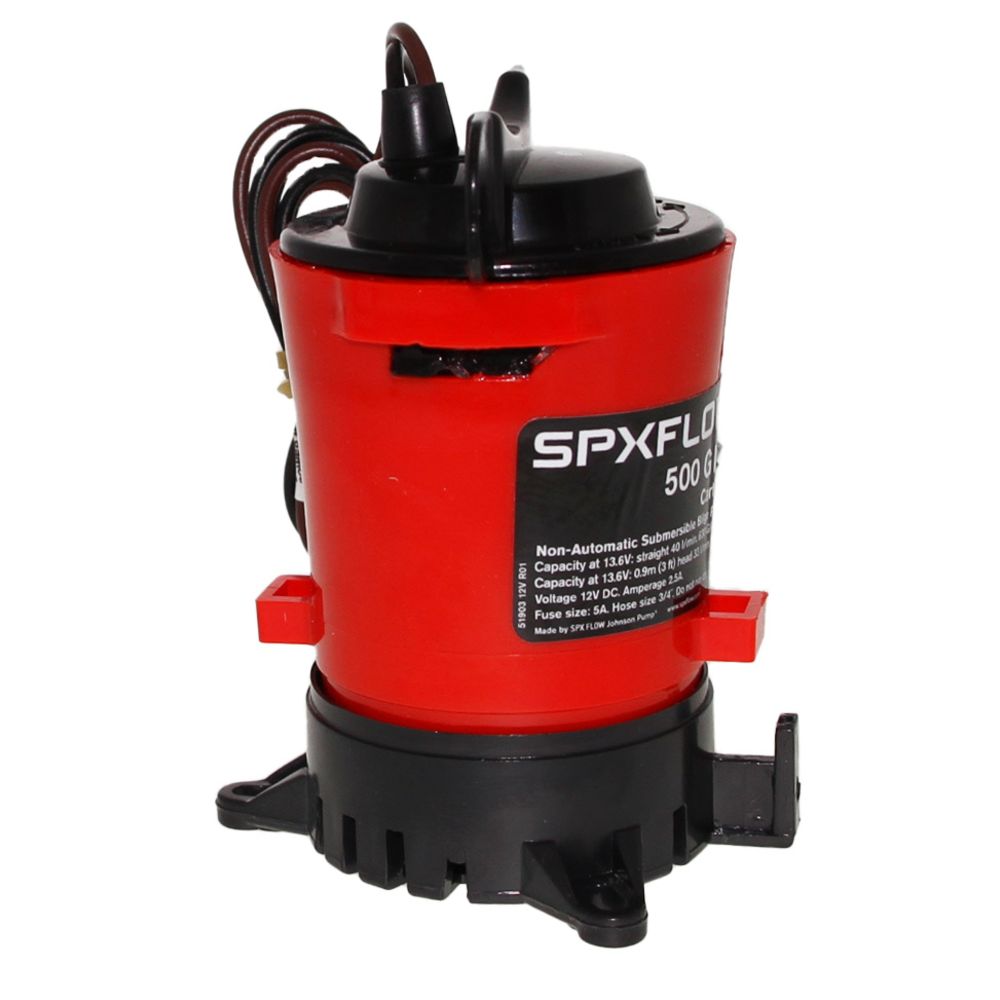

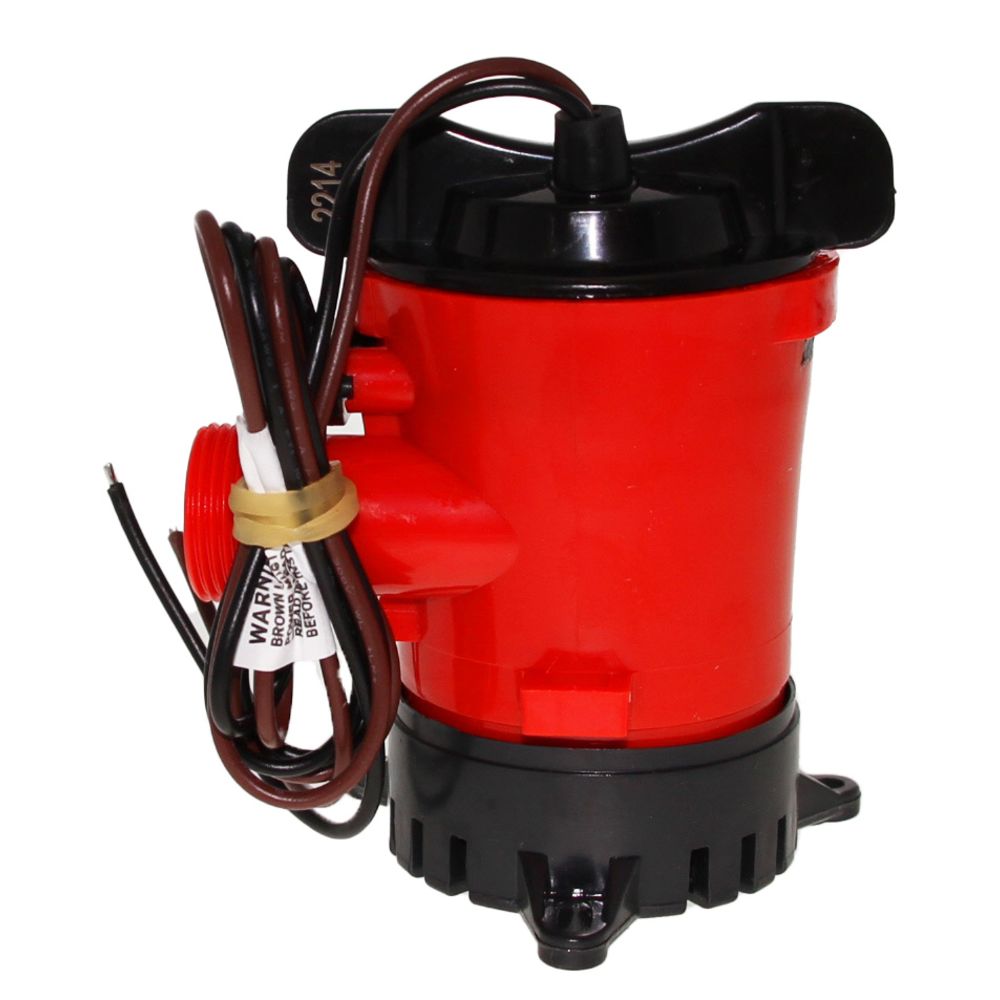

Johnson Cartridge - Submersible Bilge Pump 500 GPH

This Johnson Cartridge - Submersible Bilge Pump 500 GPH incorporates some of the most advanced features in the industry, features developed from service in a wide variety of uses including racing, cruising, sport fishing, and demanding commercial duties.

Features:

• Extremely energy efficient
• Water-cooled motor for long service intervals
• Compact, all-in-one motor/impeller unit with stainless steel (SS2343) shaft
• No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
• Easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps

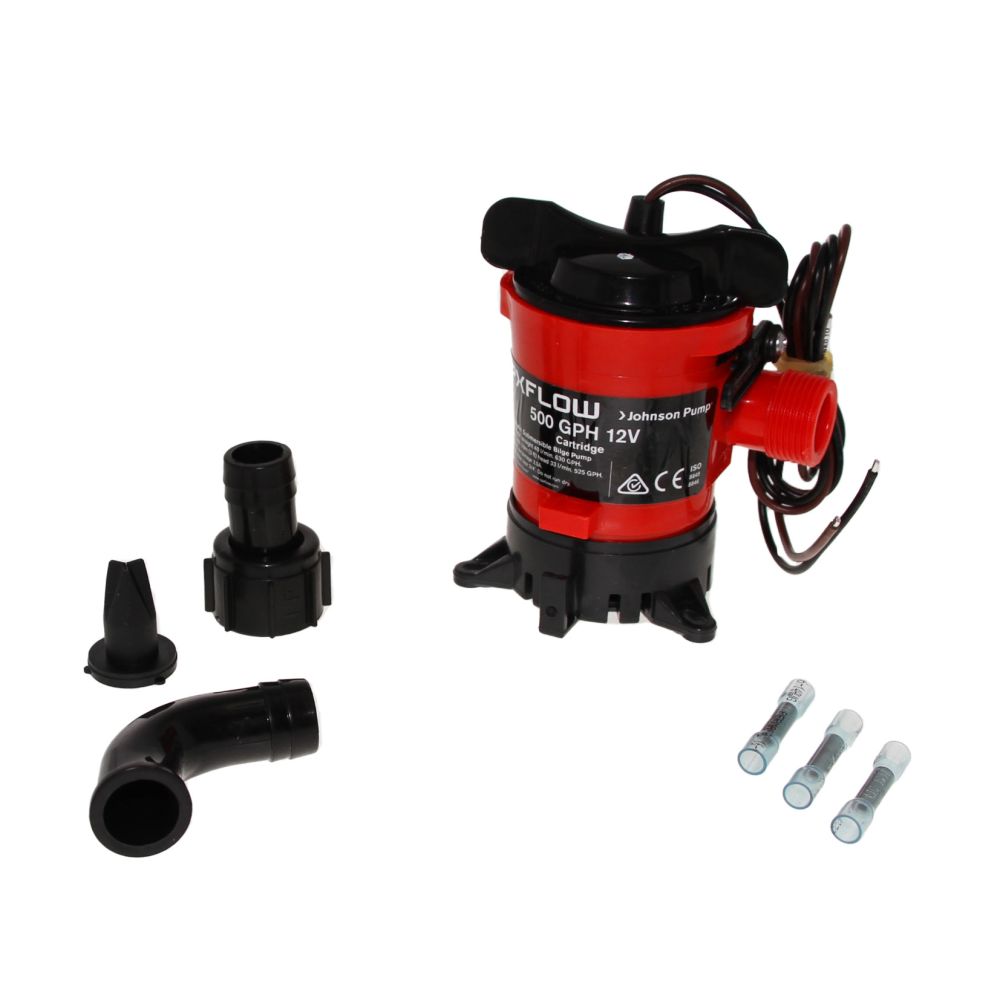

• Delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
• Meets the international standard, ISO 8849 marine
• Cartridge Pumps can be combined with either an automatic switch AS888, an electronic float switch or the Ultima Switch for automatic operation

Product Catalog

SPX Flow Product Catalog

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Bilge
Body Material	Thermoplastic
Capacity	3 ft (0.9 m) head (13.6V/27.2V) - 33 l/min - 525 GPH Straight (13.6V/27.2V) - 40 l/min - 630 GPH
Inlet Connection	3/4"
Outlet Connection	3/4"
Wire Option	16 GA
Flow Rate	500 GPH
Voltage	12V
Shipping Dimensions
Shipping Length	6.25 in.
Shipping Width	3.25 in.
Shipping Height	7.5 in.
Product Weight & Dimensions
Product Height	3.15
Product Length	4.41
Product Width	3.46
Product Weight (lbs)	1.25
