Flojet Quad II 4325 Series Automatic Washdown Pump 4.5 gpm 40 psi

The Flojet Quad II 4325 Series Automatic Washdown Pump is ideal for cleaning leisure boats, fish boxes, anchor chains and dinghies. This diaphragm pump is controlled by a pressure switch and is capable of flowing up 4.5 gallons per minute and pressure as high as 40 psi. The Quad II Diaphragm 4325 series heavy duty deck wash pump is available in 24V DC or 32V DC and includes and inlet strainer to protect the pump from debris.

Specifications:

• Can be used for washdown, baitwell circulation or as a fresh water pump
• Can be used in fresh water or salt water applications
• Flow Rate: up to 4.5 gpm
• Pressure: up to 40 psi
• Self-priming up to 2.4 m vertical lift
• Dry running
• Soft, noise absorbing mounts
• Corrosion resistant materials

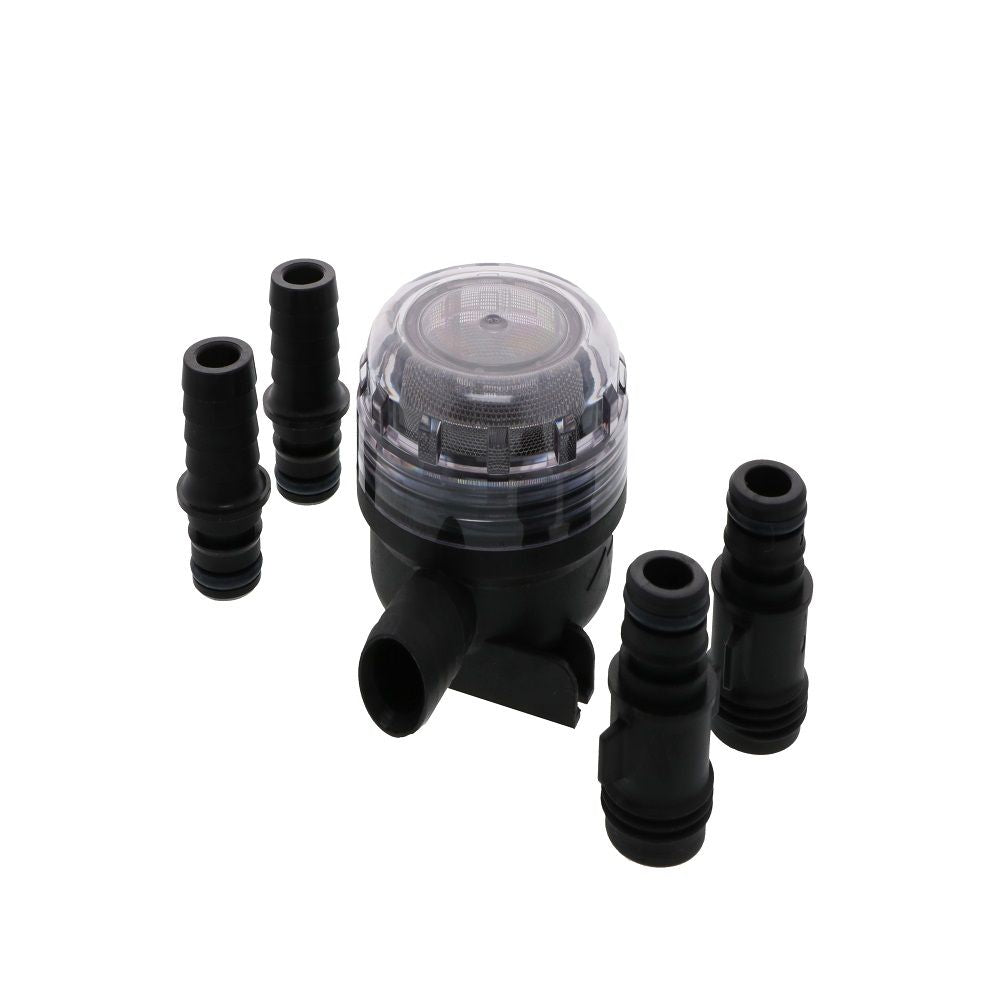

• Includes inlet strainer
• 3/4" hose barb and 3/4" MPT fittings included
• Other fitting options available for purchase

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	24V: 3.0 A 32V: 2.0 A Amps
Barb Size	3/4" ID
Inlet Connection	3/4" MPT
Outlet Connection	3/4" MPT
Pump Max Flow Rate (Gpm)	4.5
Series	4325
Size	3/4"
Suction Lift	2.4 meters Max
Voltage Type	DC
Wire Option	Bare Wire
Connection Type	Male (MPT)
Type	Diaphragm Pump
Voltage	24VDC 32VDC
Shipping Dimensions
Shipping Length	15.75 in.
Shipping Width	4.125 in.
Shipping Height	4.75 in.
Product Weight & Dimensions
Product Height	4.75 in.
Product Length	15.75 in.
Product Width	4.125 in.
Product Weight (lbs)	6.319
