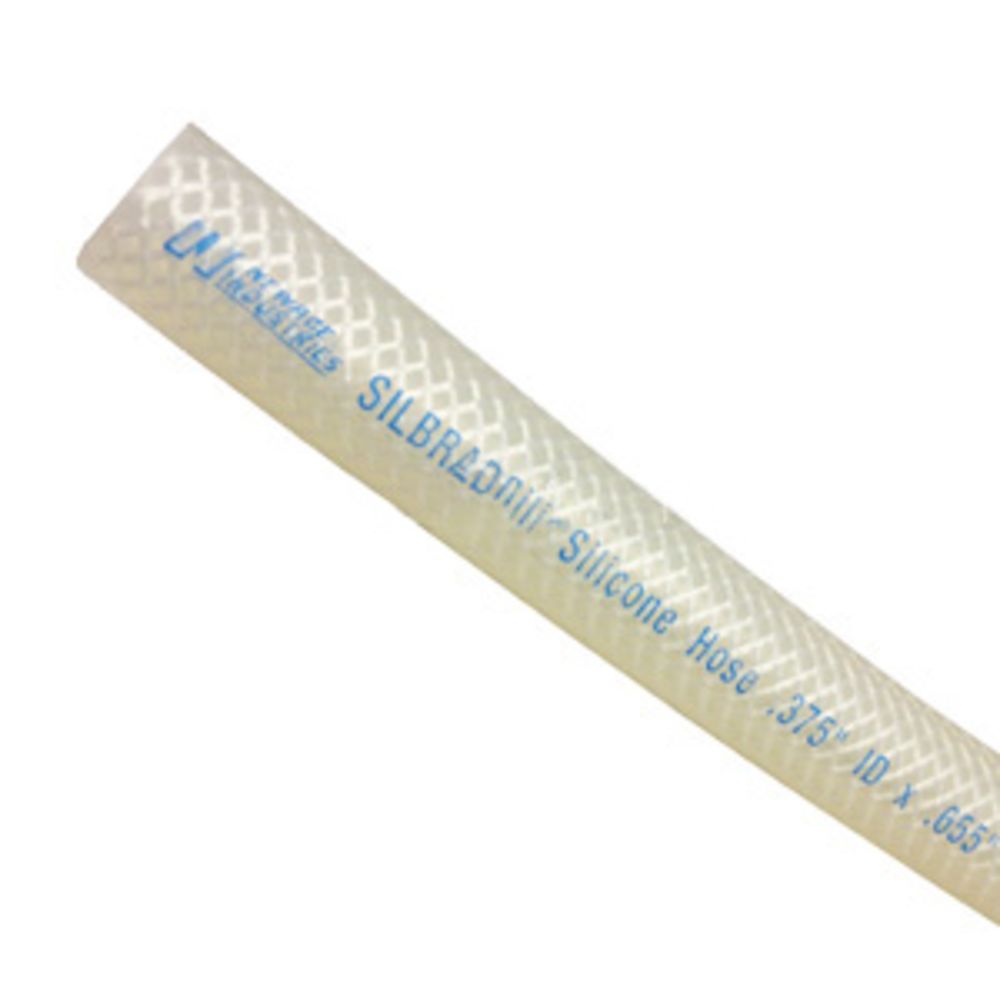

Silbrade Braid Reinforced Silicone Tubing 3/8 ID x .655 OD x 1´

Silbrade® Silicone Tubing enables silicone tubing to handle increased pressure applications as well as offering outstanding resistance to temperature extremes and is made of FDA-sanctioned ingredients. Silbrade® is a flexible design and allows excellent bend radii and permits installation in restricted spaces without impeding flow.

Specifications:

• Tubing ID: 3/8"
• Tubing OD: 0.655"
• Tubing Material: Peroxide-Cured Silicone with mesh polyester braid
• Temperature Range: -80° - 350° F
• Working Pressure: 166 psi @ 70° F
• Made from FDA-sanctioned ingredients
• Odorless, tasteless and inert
• Resists UV, ozone, gases and moisture
• NSF 51 certified for food equipment materials
• Coil Length: 100´*

Applications:

• Adhesive LInes
• Beverage Service
• Bottle Filling
• Chemical Feeds
• Deionized Water Treatment
• Fermenter Lines
• Hot Fill Lines
• Food Handling
• Laboratory
• Resin Feeds
• Stirring Vessels
• Viscous Material Handling

* Orders for lengths greater than 100´ will receive full coil(s). Any remaining length will be shipped as a separate segment. Note: Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Silicone
Material Of Construction	Braided silicone tubing
Max Pressure (Psi)	498
Max Temp (°F)	350° F
Outer Diameter	.655"
Temperature Range	-99° F to 350° F
Working Pressure (Psi)	166 @ 70° F
Color / Finish	Natural
Diameter	21/32"
Inner Diameter	3/8"
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	1.3
