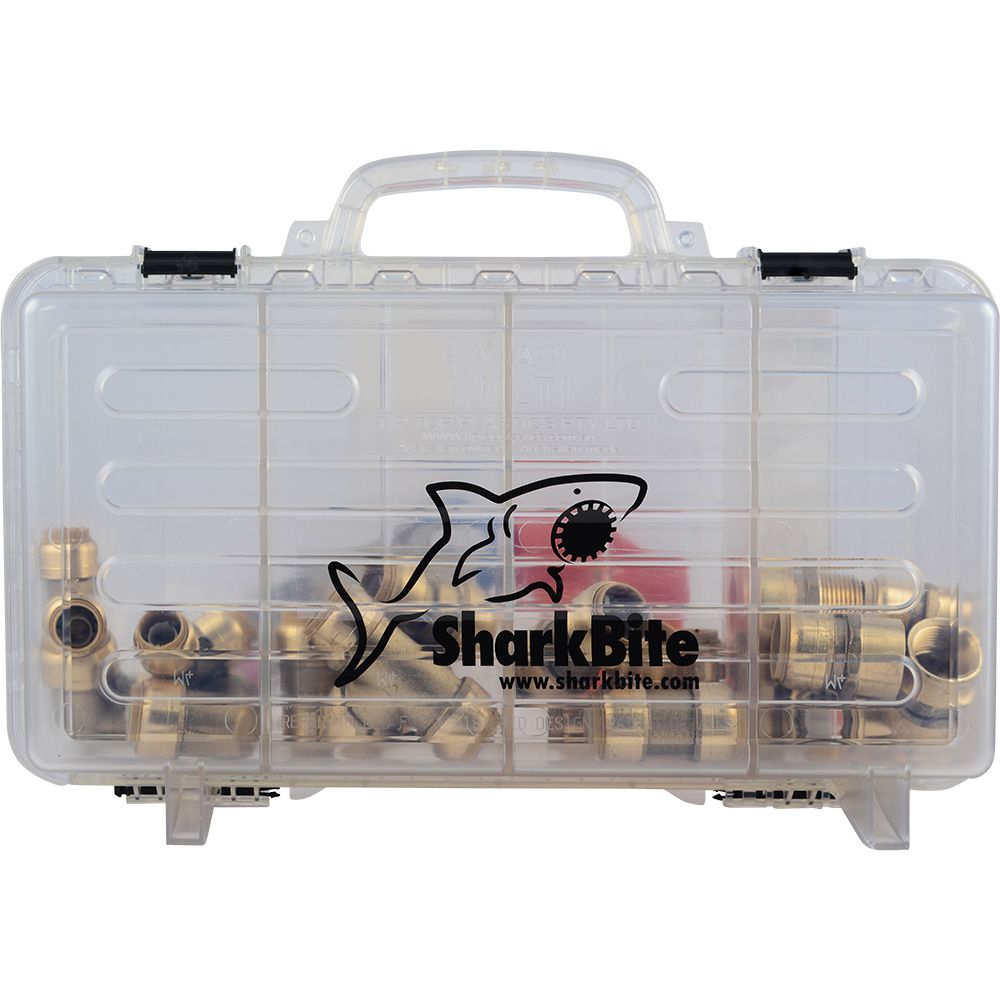

SharkBite® Contractor Kit Tool Box

The SharkBite® U4008LF Push-to-Connect Brass Coupling is designed to join piping together without the need of soldering, glue, tape, or clamps. As you insert the pipe into this push-to-connect fitting the stainless-steel teeth clamp down tightly while the built-in O-ring compresses ensuring a leak-free seal. If the U4008LF polybutylene conversion coupler needs to be disconnected simply slip the disconnect tool behind the collet firmly and the fitting will disconnect. Unlike many plumbing connectors, SharkBite® fittings can be rotated after assembly to make installation quick and easy. Conversion or transition couplings allow the user to transition from polybutylene pipe to PEX, copper, CPVC, PE-RT, or HDPE pipe.

Applications: Potable water and hydronic heating

Features:

• Innovative push-to-connect quick and reliable connection
• Lead-free construction for durability and safety
• Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
• Connect and Go – No additional securing needed
• Corrosion resistant to prolong the lifecycle of the fitting
• Demount or Disconnect Clip sold separately
• Compact and robust lead-free DZR brass body for strong corrosion resistance
• Pipe Insertion Depth for 1/2" Fitting: 0.938"

NOTE: SharkBite® fittings are certified by NSF to meet standards 14, 61 and 372. This ensures that this fitting can be used for potable water and hydronic heating applications.

*If you do not see the item you need on our site please call and speak with one of our certified water specialists to assist you with a specific item order.

Contractor Kit Includes:
Quantity	Part Number	Description
2	U008LF	1/2" Coupling
2	U016LF	3/4" Coupling
2	U058LF	3/4" x 1/2" Reducing Coupling
2	U072LF	1/2" x 1/2" FNPT Straight Adapter
2	U088LF	3/4" x 3/4" FNPT Straight Adapter
2	U120LF	1/2" x 1/2" MNPT Straight Adapter
2	U134LF	3/4" x 3/4" MNPT Straight Adapter
2	U248LF	1/2" Elbow
2	U256LF	3/4" Elbow
1	U362LF	1/2" Tee
1	U370LF	3/4" Tee
1	U514LF	1/2" End Stop
1	U518LF	3/4" End Stop
1	U710	1/2" Disconnect Clip
1	U712	3/4" Disconnect Clip
1	U711	1/2" Disconnect Tongs
1	U713	3/4" Disconnect Tongs
1	U702	Safe Seal & Pipe Deburring Tool

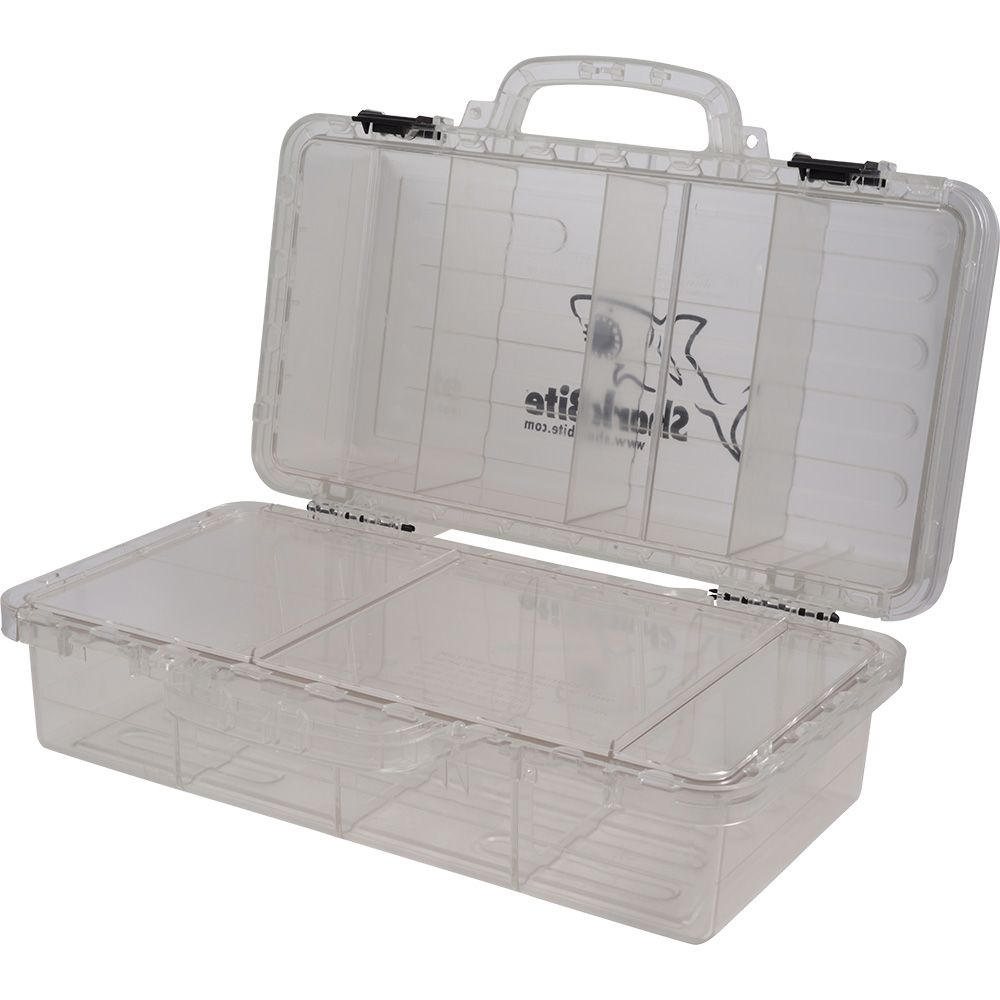

1	U3001A	Heavy-Duty Tool Box

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Lead-Free Brass
Inlet Connection	1/2" FPT 3/4" FPT 1/2" MPT 3/4" MPT
Max Pressure (Psi)	200
Max Temp (°F)	200
O-Rings	EPDM
Outlet Connection	1/2" FPT,3/4" FPT,1/2" MPT,3/4" MPT
Push-In Size	1/2" ID 5/8" OD 3/4" ID 7/8" OD
Size	1/2" 3/4"
Connection Type	Female (FPT) Male (MPT)
Type	Fitting Kits
Warranty & Certifications
Certifications	NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ASSE 1061
Warranty	25 Year
