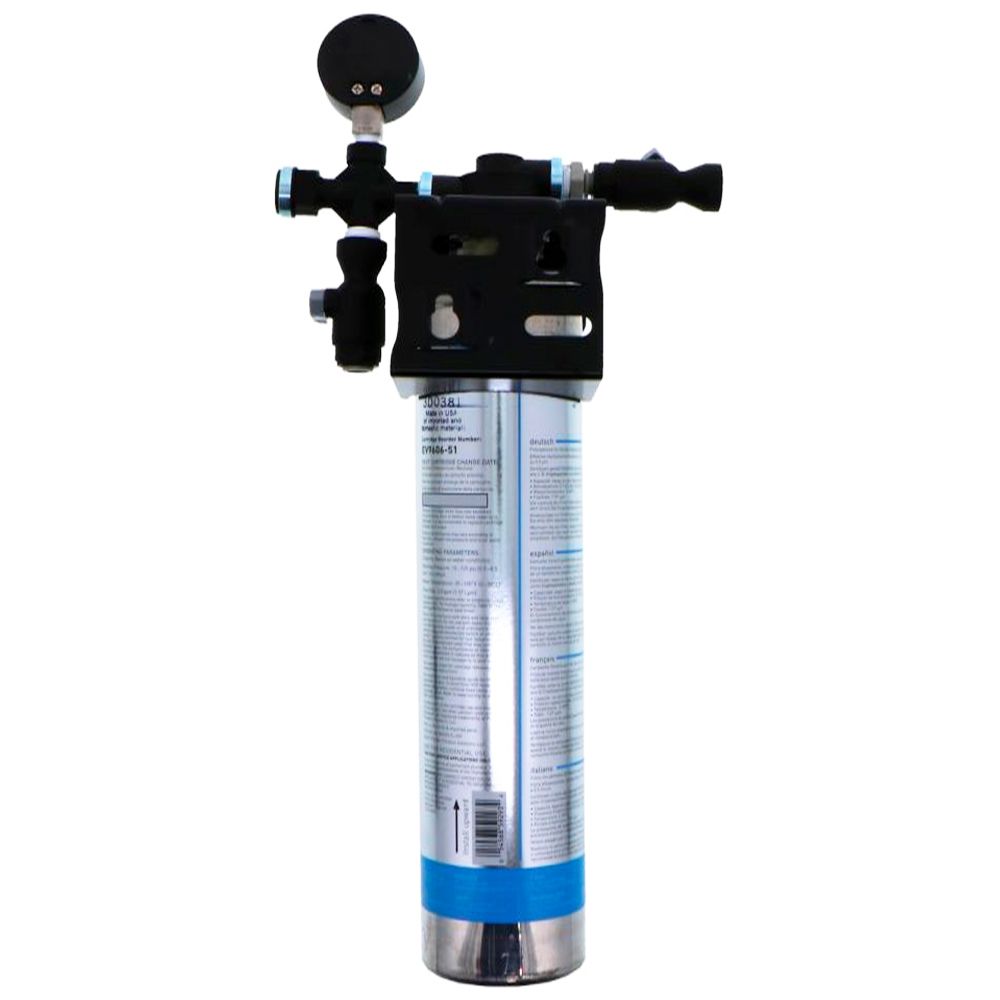

Everpure Insurice Single-4SI Filter System EV9324-60

The Everpure Insurice 4SI Single System EV9324-60 is a Sediment filtration system specifically designed for ice applications. This system effectively removes dirt and other particles as small as 1/2 a micron through mechanical means. The 4SI catridge features superior dirt-holding capacity through its depth filtration and Fibredyne™ media. The EV9324-60 will reduce ice machine maintenance, service costs, and downtime by removing scale buildup and other damaging contaminants. This filter should be replaced every 6 months for maximum performance. Features:

• Ideal for most cubers up to 500 lbs./day or flakers up to 1,500 lbs./day
• Reduces water-related ice machine problems caused by scale build-up from dirt and dissolved minerals
• Includes a self-contained scale inhibitor feed that keeps ice machines functioning at full capacity
• Reduces maintenance and service costs by reducing scale and clogging of distribution lines, evaporator plate and pump
• Reduces dirt and particles as small as 1/2 micron in size
• Reduces health contaminants such as asbestos fibers and cryptosporidium and giardia cysts
• Sanitary quick change cartridge is easy to install and replace
• This system leaves chlorine and chloramines in the water to reduce slime growth in the ice machine and ice bin

Save electricity and boost your ice production volume with the compatible: ChillTech Heat Exchanger.

• Increase ice production up to 30%
• Reduce your ice maker cycle times
• Lowers kWh consumption up to 30%
• Includes 2 year warranty
• Self cleaning and maintenance free

Hoshizaki
Systems	Cubers (lbs)	Flakers (lbs)	Nuggets (lbs)
Insurice Single	<200	-	<300
Insurice Twin	<800	<800	<800
Insurice Triple	<1200	<1600	-
Insurice Quad	<1500	-	-
Insurice Triple 7FC-S	<1900	<1600	-

Iceomatic
Systems	Cubers (lbs)	Flakers (lbs)	Pearls (lbs)
Insurice Single	<500	-	<500
Insurice Twin	<1000	<1000	<1100
Insurice Triple	<1900	<1500	<1400

Manitowoc
Systems	Cubers (lbs)	Nuggets (lbs)
Insurice Single	<500	<300
Insurice Twin	<800	-
Insurice Triple	<1500	-
Insurice Triple 7FC-S	<2200	-
Insurice Quad 7FC-S	<3500	-

Scotsman
Systems	Cubers (lbs)	Flakers (lbs)	Nuggets (lbs)
Insurice Single	<600	<600	<600
Insurice Twin	<1000	<900	<1100
Insurice Triple	-	<1300	<1400
Insurice Triple 7FC-S	-	<1900	<1600
Insurice Quad 7FC-S	<2600	<2500	<2400

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Ice System
Capacity	15000 Gallons
Max Pressure (Psi)	125
Max Temp (°F)	100
Min Pressure (Psi)	10
Min Temp (°F)	35
Push-In Size	3/8" OD
Change Frequency	15,000 Gallons
Contaminants Reduced	Cysts Scale Sediment/Dirt/Rust
Flow Rate	Max 2.0 GPM
Type	Ice Filtration System
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	20.75 in.
Shipping Width	10 in.
Shipping Height	6.5 in.
Product Weight & Dimensions
Approx Depth	5-1/4"
Product Height	6.5 in.
Product Length	20.75 in.
Product Width	10 in.
Product Weight (lbs)	4.028125
