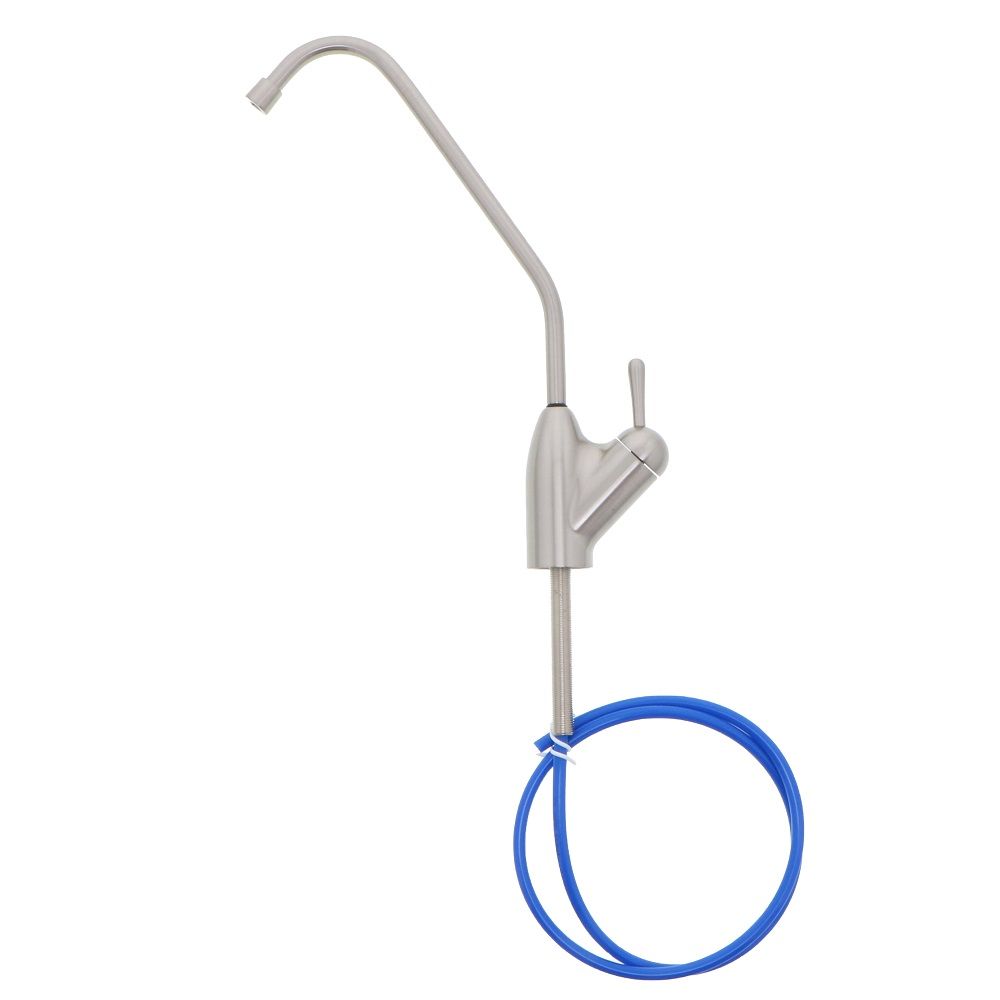

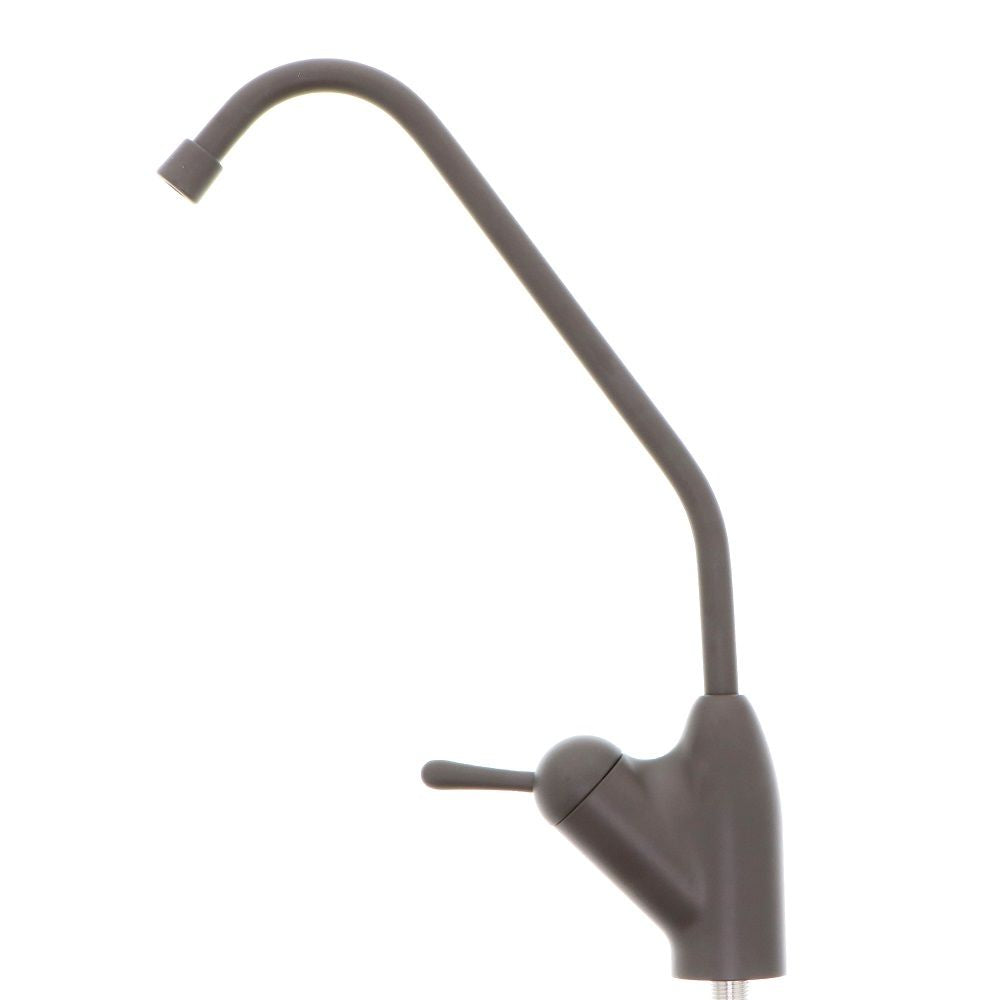

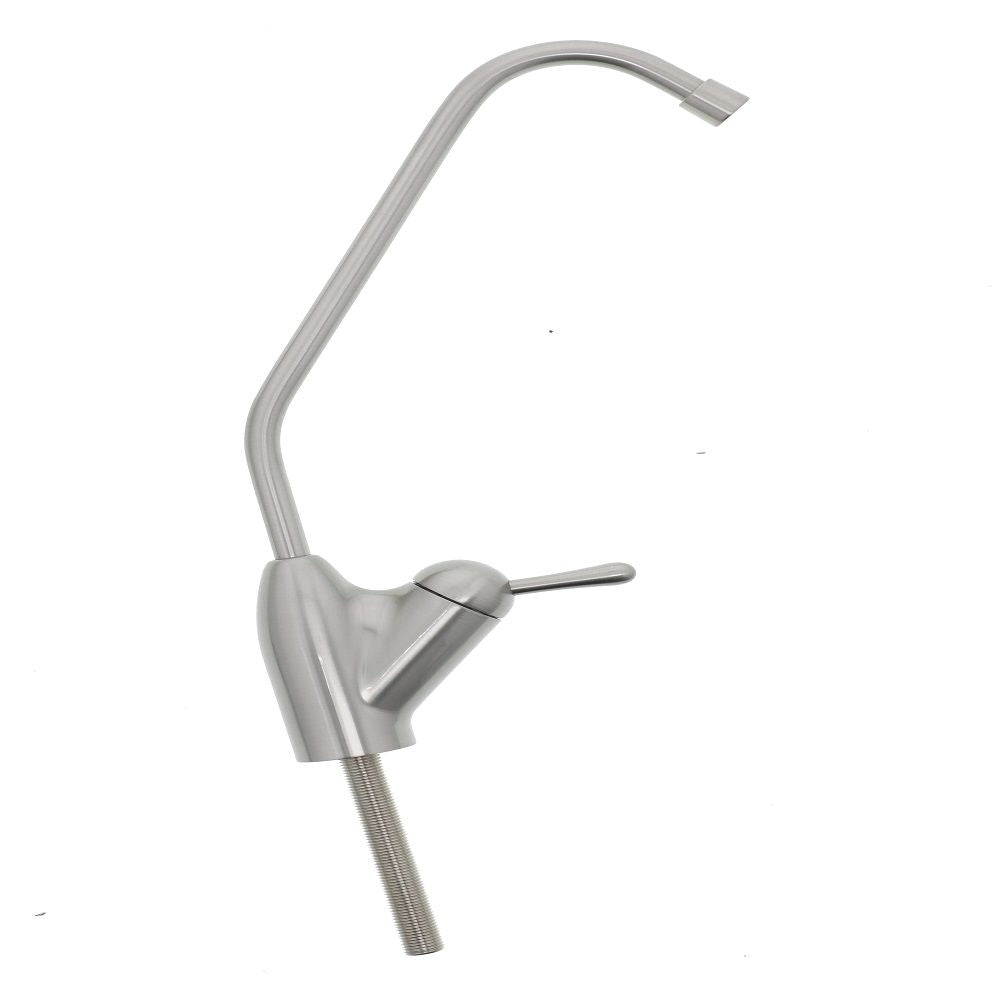

Tomlinson - Drinking Water Faucet

Features:

• Tubing attached
• Non air gap drinking water faucet for drinking water systems
• Connection: 1/4" Compression
• Construction: Lead Free Brass
• Temperature Range: 40 - 158 Degrees Fahrenheit
• Required Hole Size: 7/8"
• Certifications: AB1953 Compliant & NSF Certified to Standard 61

Finish	Tomlinson Part #	FWS Part #
Chrome	1022298	FCT-713-CH
Antique Bronze	1022302	FCT-713-ABZ
Brushed Nickel	N/A	FCT-713-BN
Satin Nickel	1022300	FCT-713-SN
Oil Rubbed Bronze	N/A	FCT-713-ORB

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Base Size	1-1/2"
Faucet Type	Non Air Gap Drinking Water
Hole Size	7/8"
Material Of Construction	Lead-Free Brass
Max Flow Rate	1 GPM
Max Temp (°F)	158
Min Temp (°F)	40
Reach	5"
Color / Finish	Chrome Oil Rubbed Bronze Brushed Nickel
Origin	China
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	10"
Product Weight (lbs)	1.65
