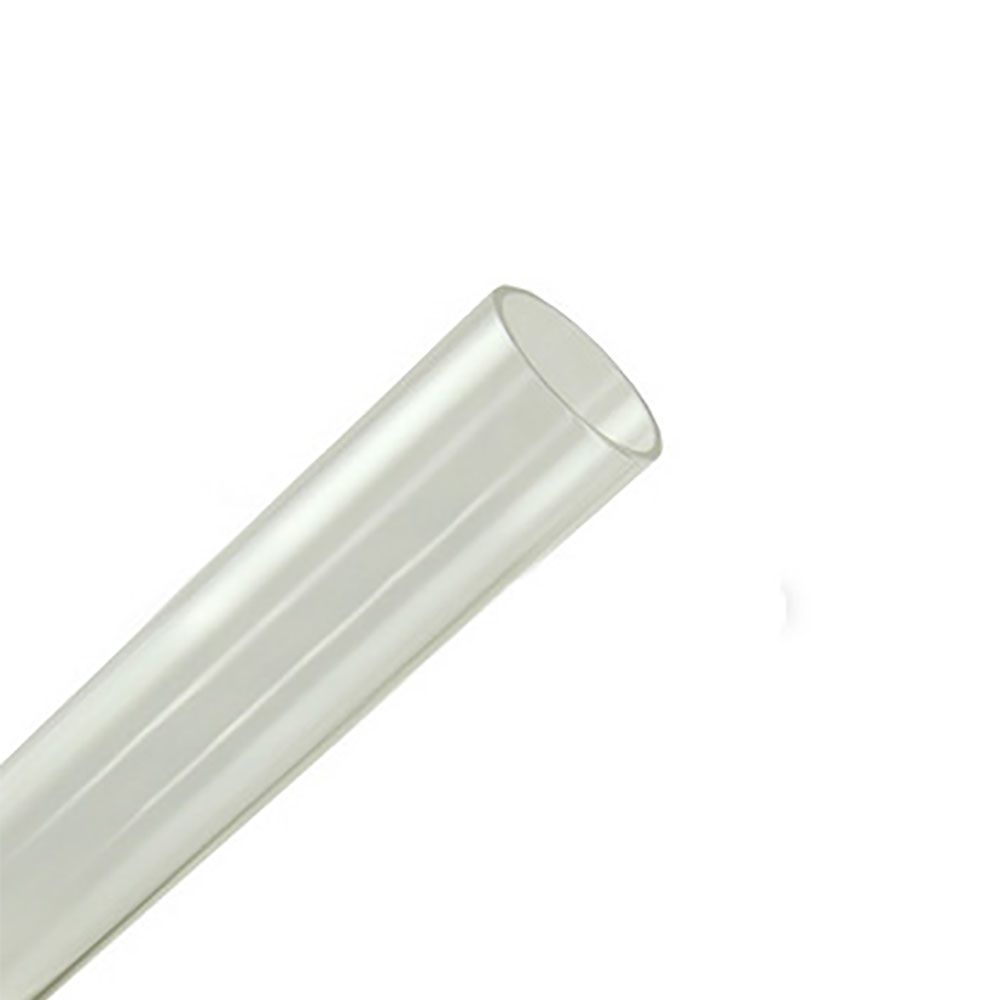

Sterilight QS-463 Quartz sleeve for S5Q´s, SSM-24

All Sterilight UV systems include a quartz sleeve, which surrounds the lamp. The quartz material used in R-Can´s quartz sleeves are a 100% fused silica which lend to the sleeve´s high transmittance. A high transmittance is important as the UV light must travel through the sleeve to get to the water.

There are a variety of quartz sleeve designs, depending on the system that they are being used in. The QS-463 is an open ended quartz sleeve which is used in the Silver™, Silver ´Plus´™, the old style GOLD series, the 6 gpm 12V DC system and the 6 gpm vending system.
Specifications:

• Origin: Fabricated in the USA
• Warranty: One year manufacturer warranty

NOTE: The QS-463 Quartz Sleeve is compatible with the S5Q-GOLD, S5Q-P/12VDC, S5Q-PA, S5Q-PV, SV5Q-PA, SSM-24, and the SSMV-24 UV systems.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Diameter	16mm
End Cap Type	Double Open Ended (DOE)
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Height	0.875 in.
Product Length	20 in.
Product Width	0.875 in.
Product Weight (lbs)	1
