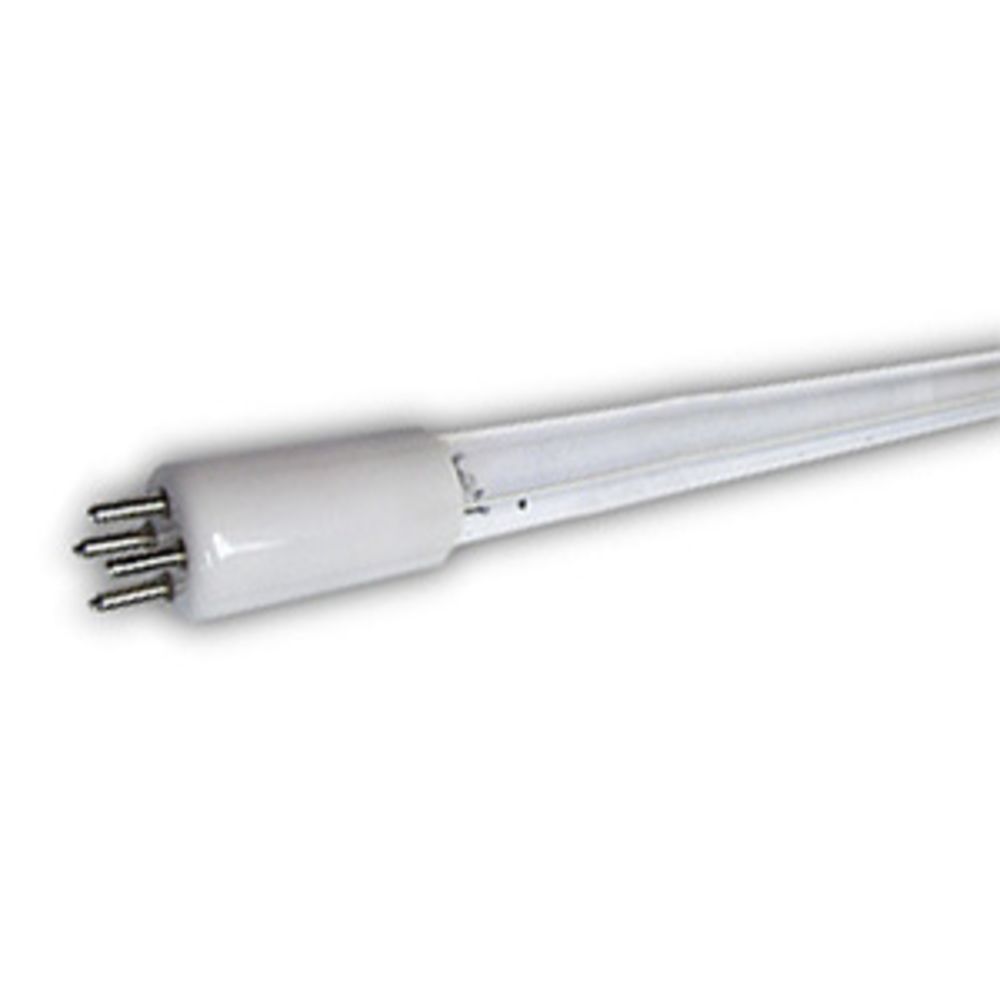

UV Lamp for DWS-8V, EV-8E, SE-8V, SL-8, SL-8V, SL-5

This UV Lamp is compatible with DWS-8V, EV-8E, SE-8V, SL-8, SL-8V, SL-5.
This bulb ensures clean quality water for Aqua Treatment Services. UV light technology has a lethal effect on bacteria, protozoa, molds, viruses, and other harmful pathogens. This UV lamp destroys the genetic structure of the microorganisms and makes the water that passes through it safe for consumption. The germ sterilizing power lasts for one year. It is important to replace your bulb annually because after 12 months of operation, the light may still be visible, but its germ killing efficiency quickly diminishes.

UV System Disinfection
Ultraviolet Water Purification Treatment Systems are designed to protect your water from bacteria, virus, and cysts.

Compatible Replacement The UV Bulb is a compatible replacement for DWS-8V, EV-8E, SE-8V, SL-8, SL-8V, SL-5.

Typical Applications The AquaPure UVLB-1X is commonly used for treating drinking water, beverage services, pools, and spas.
Bulb Specifications:

• Lamp Life: 10,000 hours
• Operating Current: 425mA
• Lamp Voltage: 15.53V
• Lamp Wattage: 22 Watts
• Output UVC Watts: 6.6 Watts
• Output uW/cm^2 @ 1m: 62
• Peak UV Output: 253.7nm
• Total Length: 17.72 inches (450mm)
• Arc Length: 14.57 inches (370mm)
• Lamp Quartz Diameter: 15mm
• Glass Type: Non Ozone
• Base Style: 4 pins on a single end
• Base Material: Ceramic
• Use O-Ring: # ATS8-544

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Germicidal (254nm), Preheat
Pin Configuration	4 Pin
Cap Material	Ceramic
Change Frequency	10,000 Hours
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Weight (lbs)	0.95
