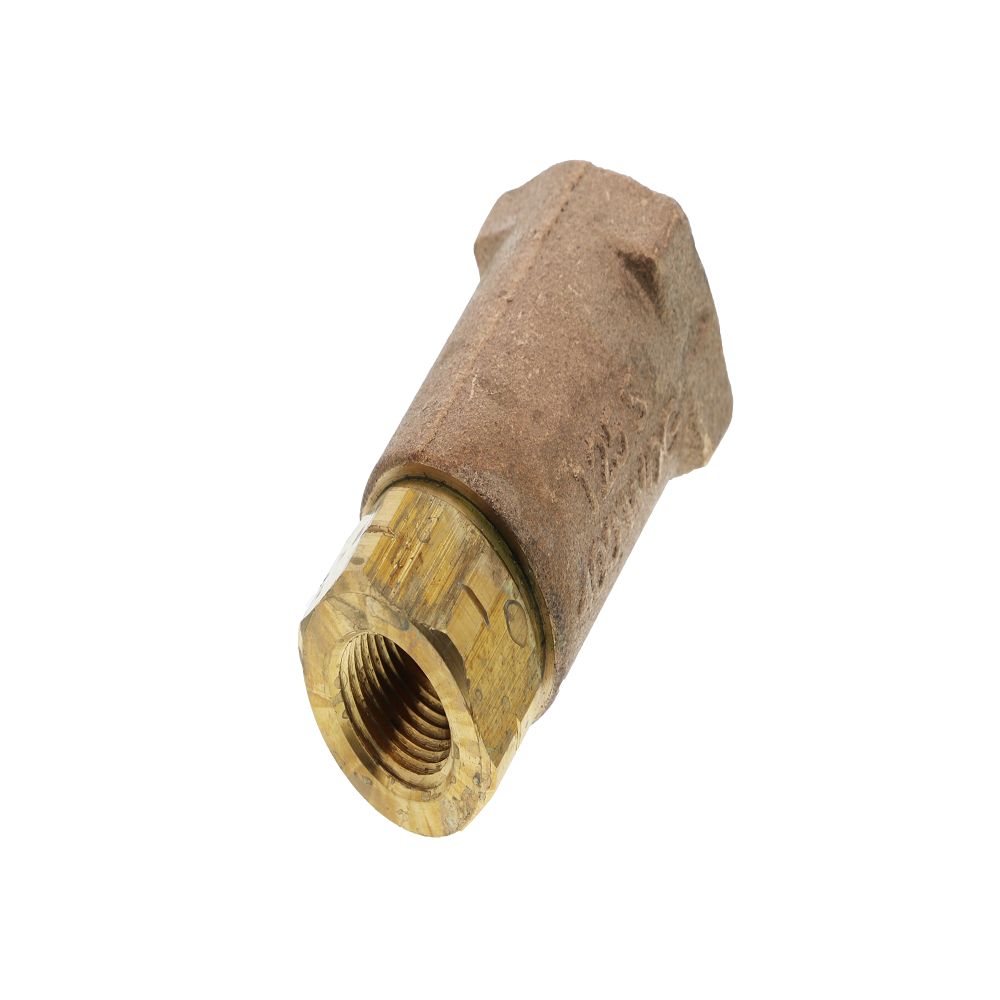

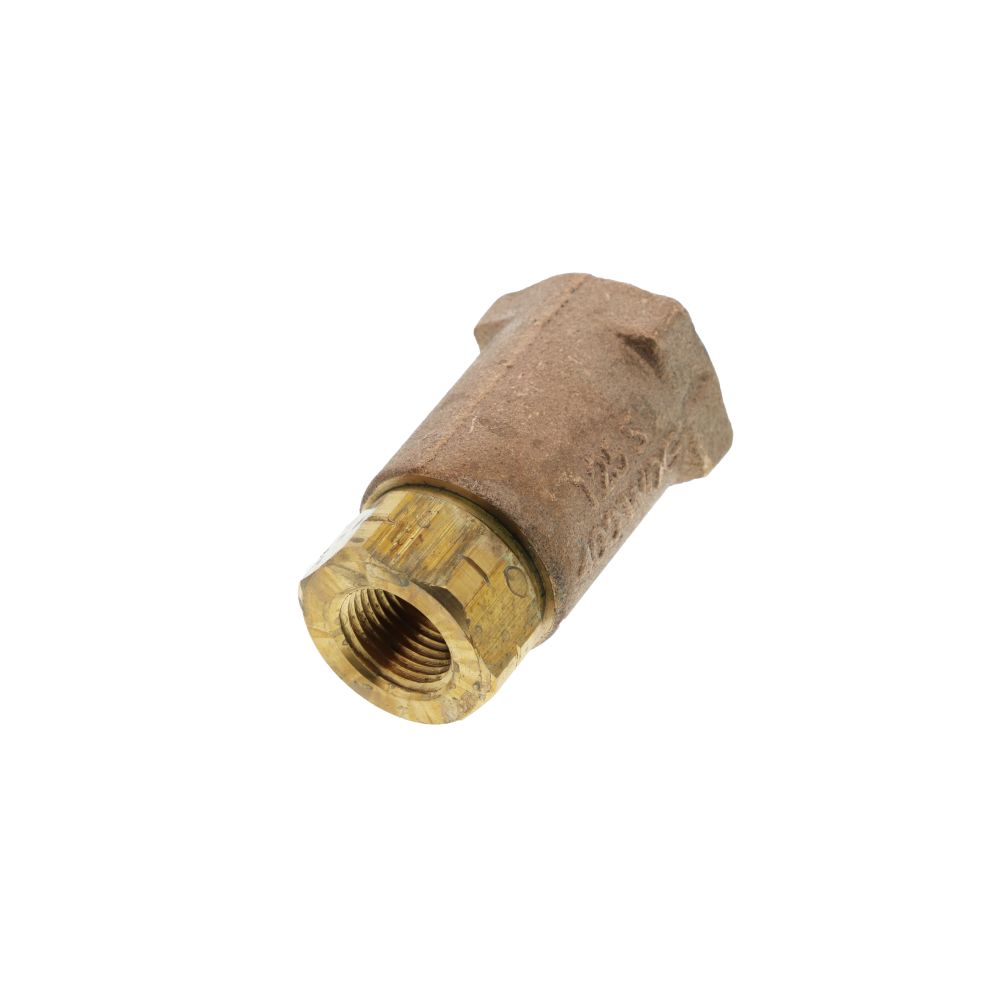

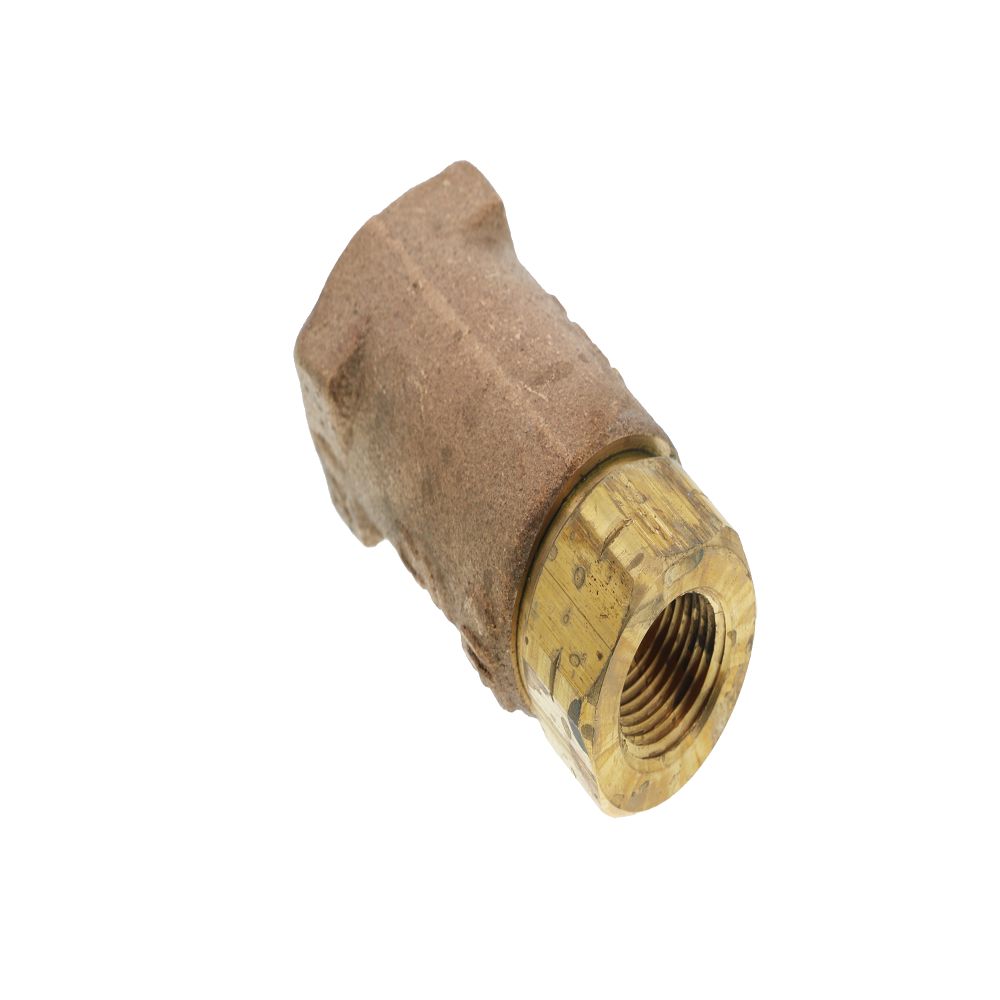

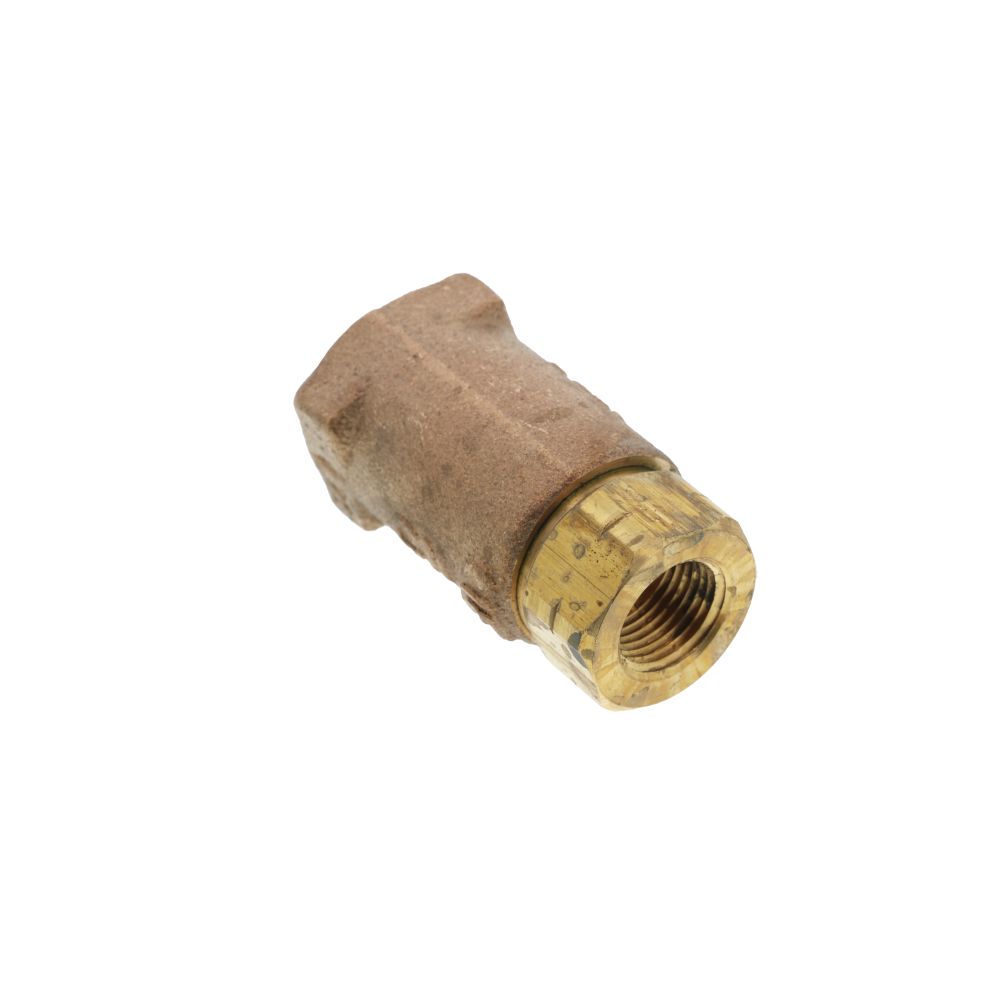

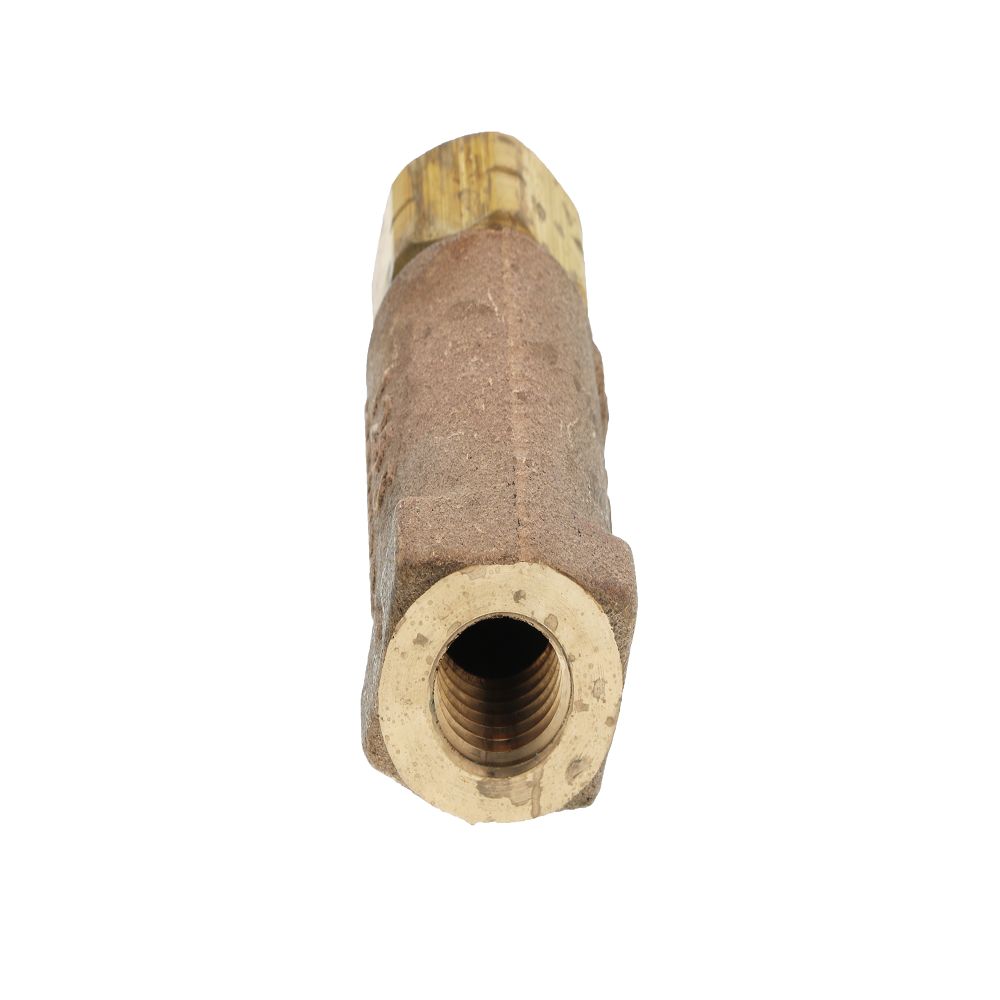

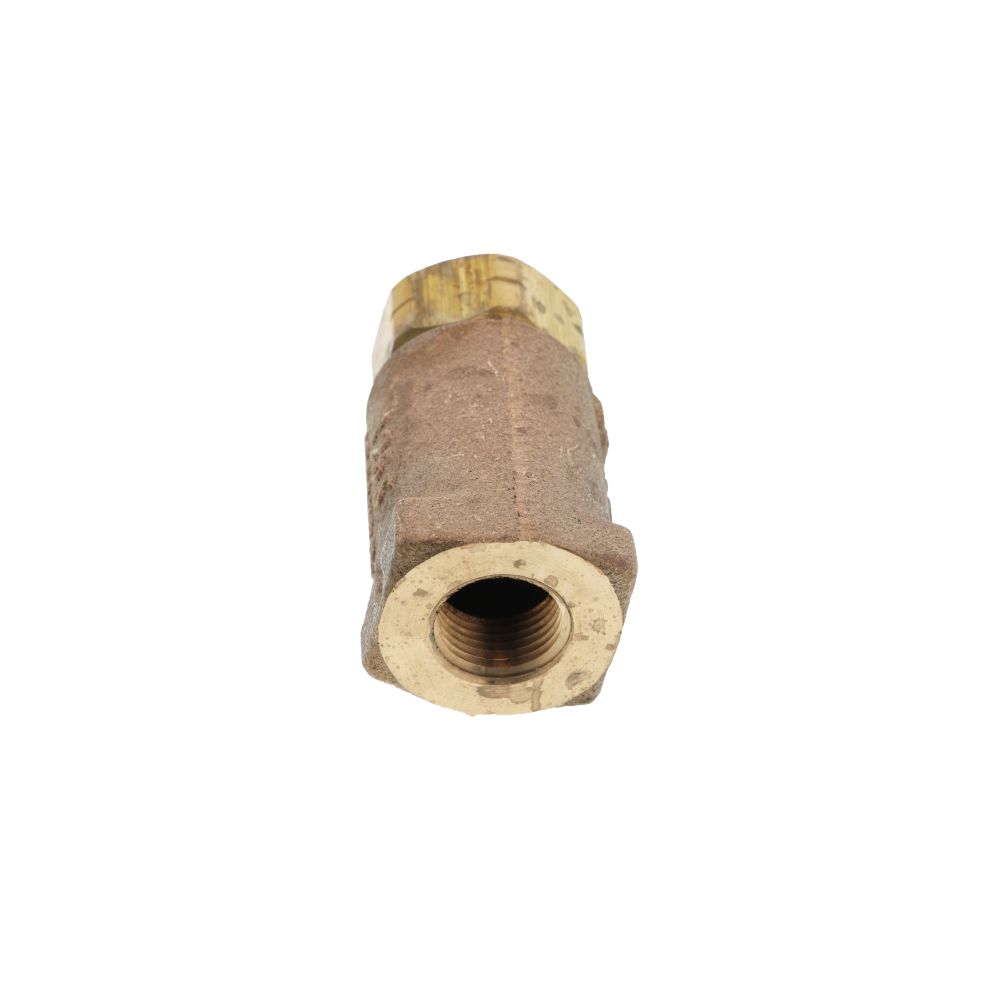

T&S Brass B-CVH3-8 Check Valve for Horizontal or Vertical use, 3/8" FNPT

The T&S Brass B-CVH3-8 Check Valve is designed for horizontal or vertical use and has a 3/8" FNPT connection. This check valve is constructed from brass and is meant for water use only.

Specifications:

• Pressure Rating: 20 - 400 PSI
• Temperature Range: 40 - 200° F (4.44 - 93.33° C)
• Flow Rate: 5.0 GPM @ 60 PSI
• Material: Brass
• Low Lead Content (0.25% Max)
• NSF/ANSI 372

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Base Size	1"
Max Flow Rate	5 GPM
Max Pressure (Psi)	400
Max Temp (°F)	200
Min Pressure (Psi)	20
Min Temp (°F)	40
Color / Finish	Brass
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	12 Months from Date of Purchase
Product Weight & Dimensions
Product Height	8"
Product Length	5"
Product Weight (lbs)	0.45
