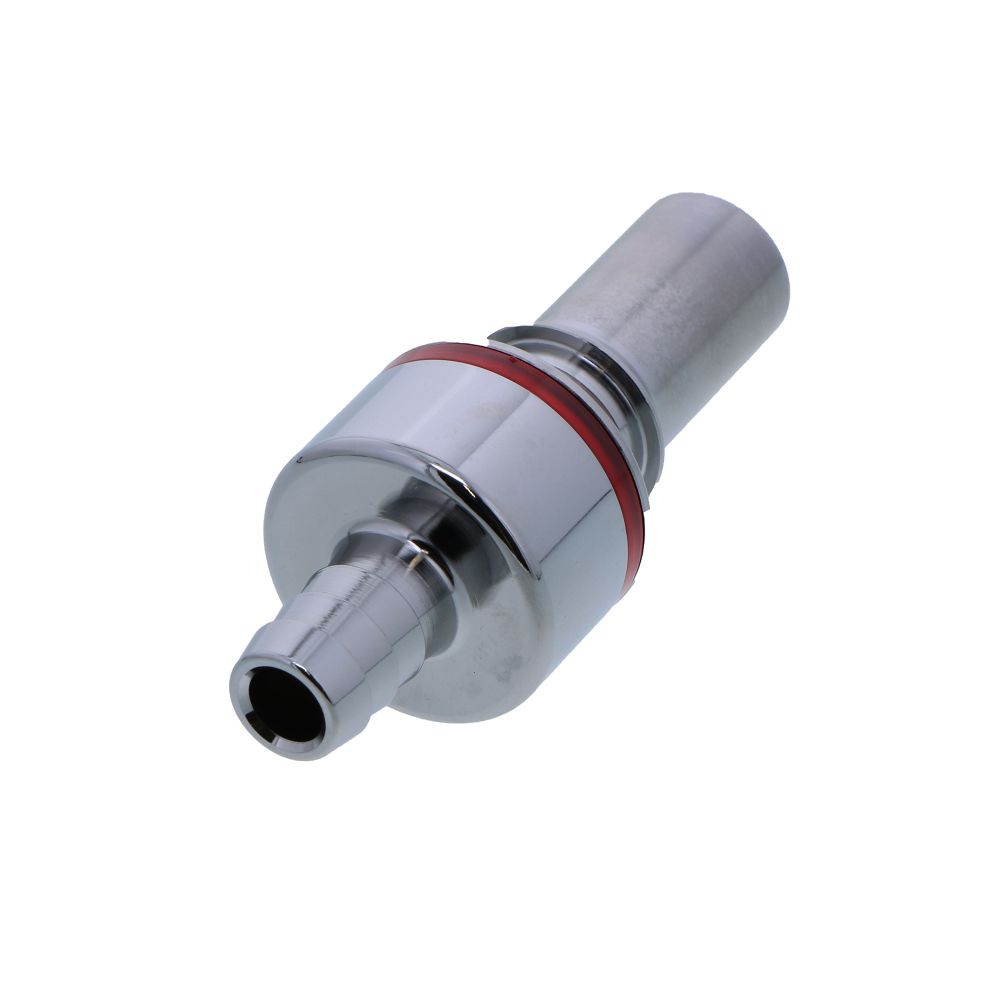

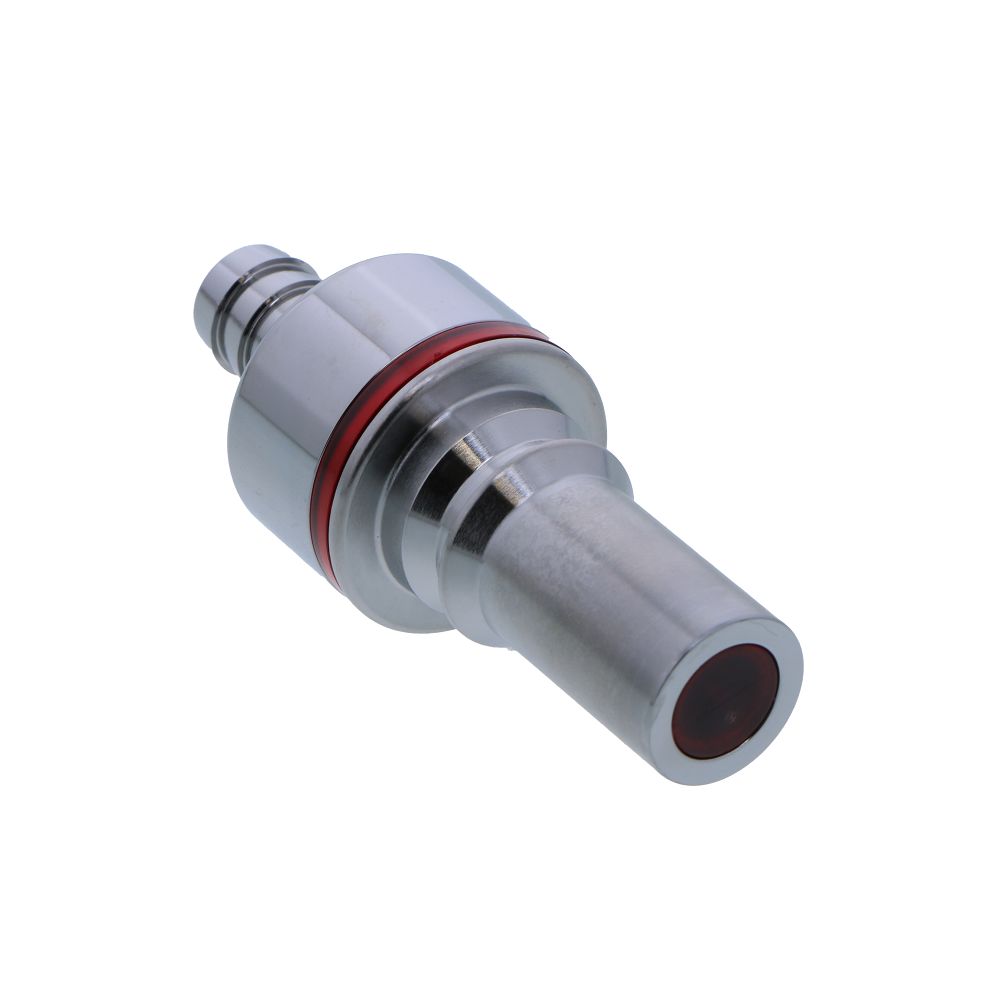

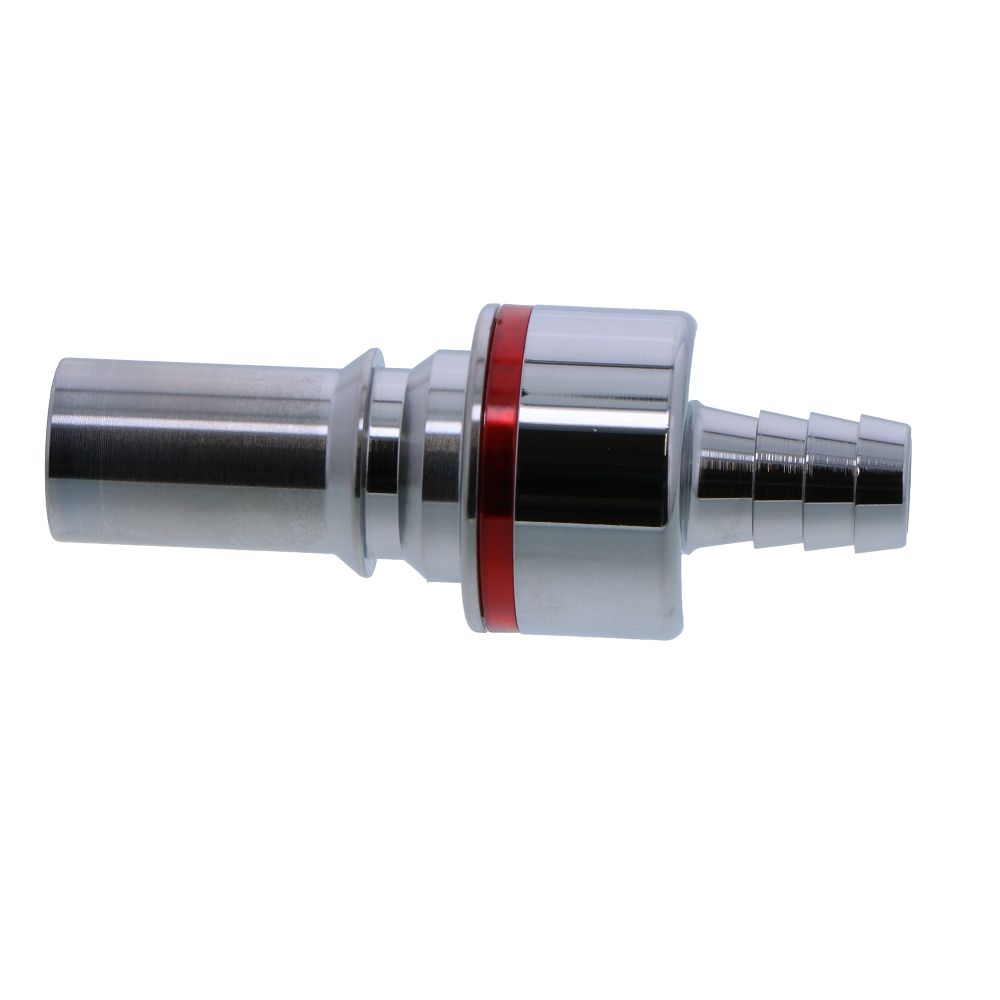

LQ6D22006RED Valved In-Line Liquid Cooling Coupling Insert 3/8 ID Barb Warm Red

Colder’s LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6´s closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in blue.

Specifications;

• Material: Brass
• Pressure Range: Vacuum to 120 psi, 8.3 bar
• Mounting Option: Free Floating
• Valve Option: Valved
• Finish: Chrome
• Color Coding: Cool Blue or Warm Red
• Temperature Range: -0ºF to 240ºF
• Max Flow at Disconnect: 4.0 gpm
• Valve Spring: 302 Stainless Steel
• Valve: Polysulfone
• Lubricants: Krytox® PFPE
• Seal Options: EPDM
• Spillage:
• <0.05 cc per disconnect (at 0 psi)
• <0.125 cc per disconnect (at 120 psi)
• Inclusion: <0.42 cc per connect
• Tubing Size: 3/8" ID

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Cooling Systems
Barb Size	3/8" ID
Body Material	Chrome-Plated Brass
Max Pressure (Psi)	120
Max Temp (°F)	240
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	LQ6
Shape	Straight
Spring	302 Stainless Steel
Valve Type	Valved
Color / Finish	Red
Origin	U.S.A.
Type	Coupling Insert
