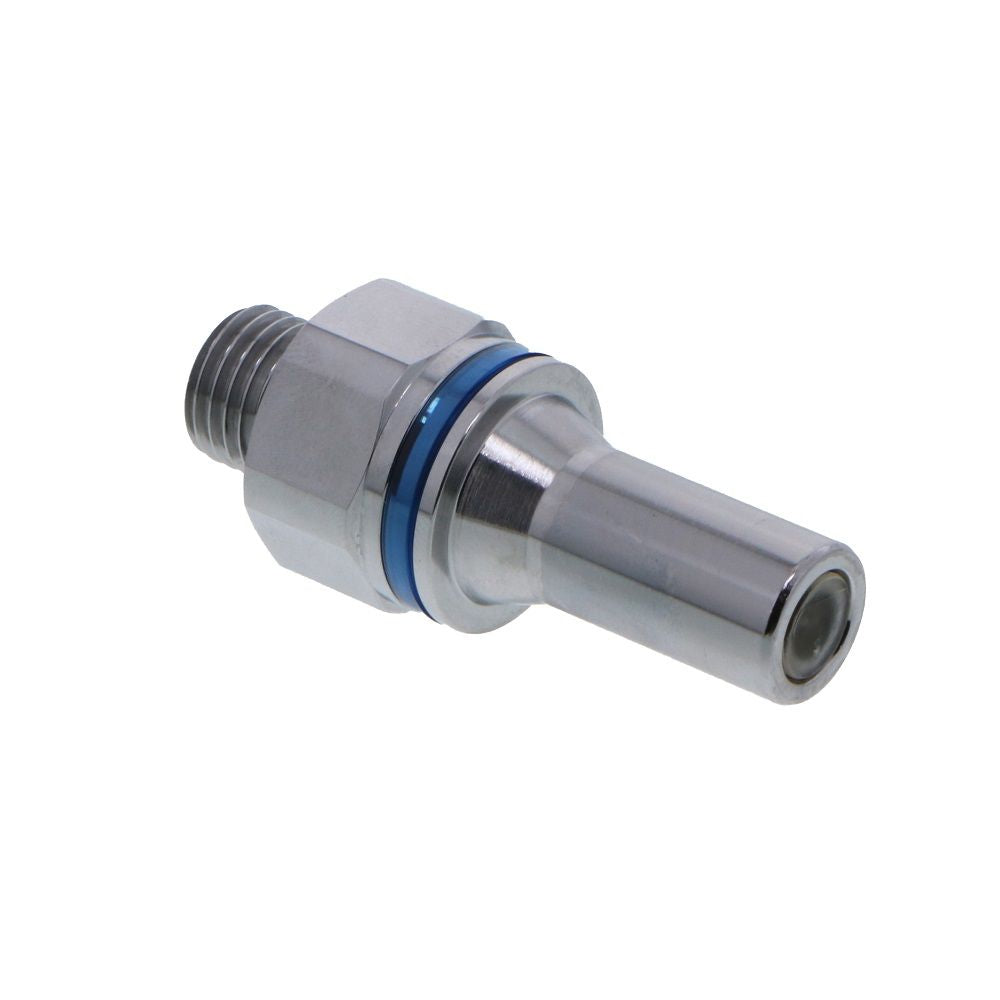

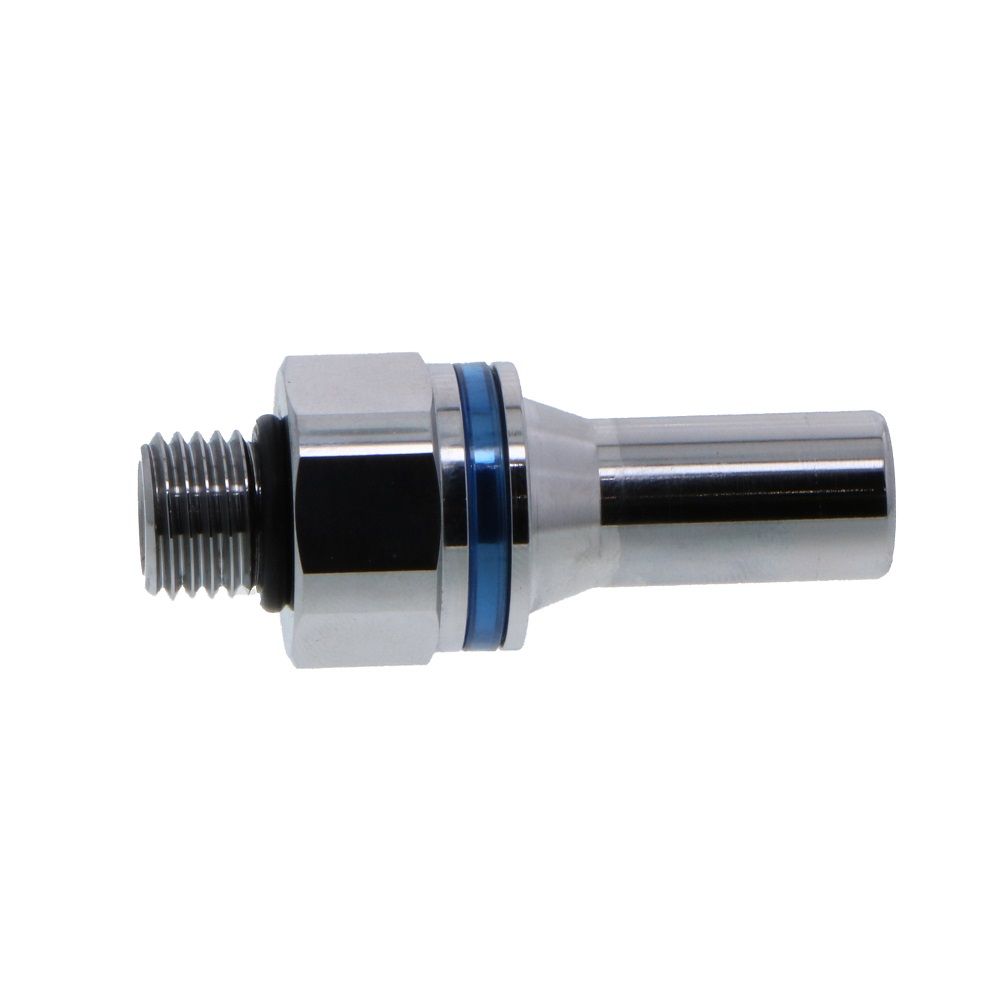

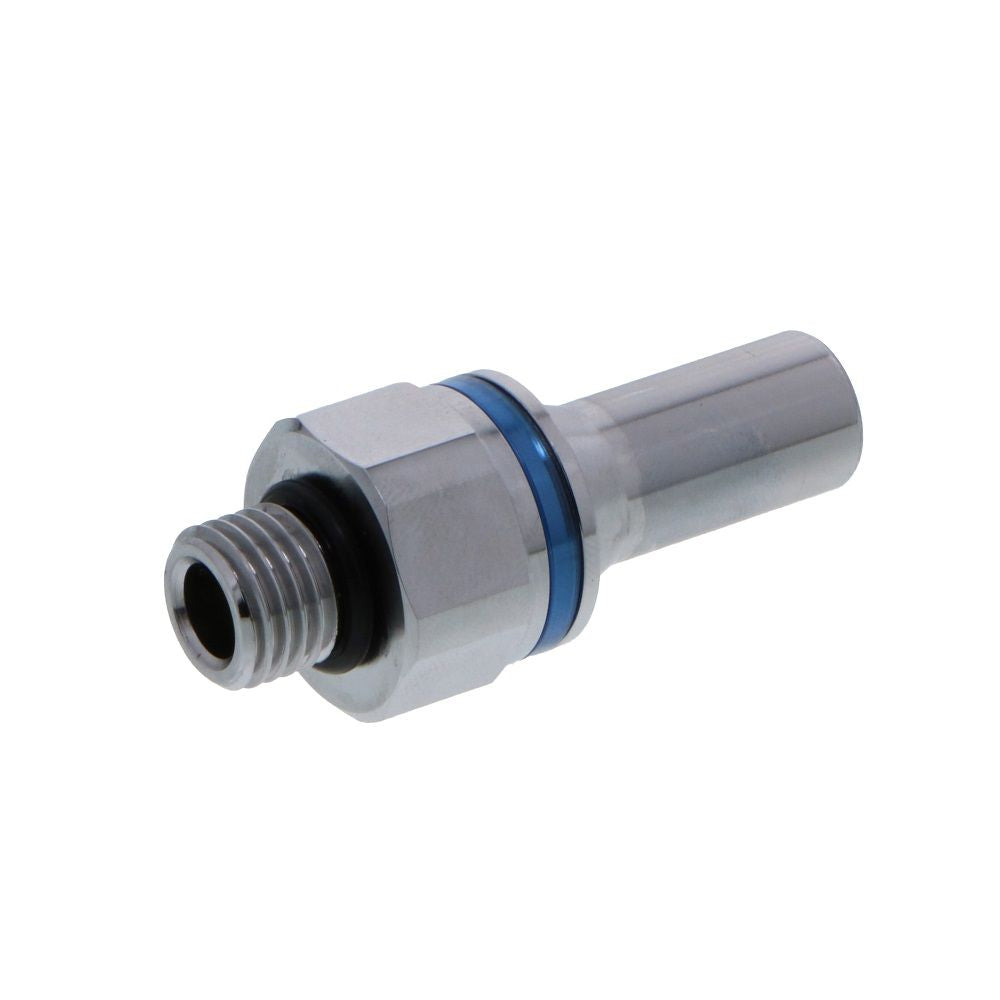

RPLQ4D46004BLU Rack and Panel Insert Straight Thread Port 1/4 SAE-04 Cool Blue

Colder RPLQ4 Series Quick Disconnect Couplings are reliable, dripless connectors designed for use in rack-mounted liquid cooling applications. The non-spill design and durable construction of the RPLQ4 series ensures that the connectors continue to protect valuable electronics over time. Couplings need only be within 1/8" of fully engaged in order to achieve the maximum flow. These RPLQ4 connectors are constructed out of chrome-plated brass with polysulfone valves, and come with either cool blue or warm red color rings for quick identification.

Specifications

• Material: Chrome-plated brass
• Valves: Polysulfone
• Valved Spring (wetted): Stainless steel
• Seals: EPDM
• Lubricants: Krytox® PFPE
• Color: Chrome with cool blue or chrome with warm red
• Flow Capacity: 1/4" nominal flow
• Operating Pressure: Vacuum to 120 psi, 8.3 bar
• Temperature: 0°F to 240°F
• Max Flow at Disconnect: 3.0 gal/min

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Cooling Systems
Body Material	Chrome-Plated Brass
Inlet Connection	1/4" SAE
Max Pressure (Psi)	120
Max Temp (°F)	240
Min Pressure (Psi)	Vacuum
Min Temp (°F)	0
Mounting Options	Thread
Nsf Version	No
Number Of Seals	2
Outlet Connection	1/4" SAE
Seal Material	EPDM
Series	RPLQ4
Shape	Straight
Size	1/4"
Spring	Stainless steel
Valve Type	Valved
Color / Finish	Blue
Connection Type	SAE
Origin	U.S.A.
Type	Coupling Insert
