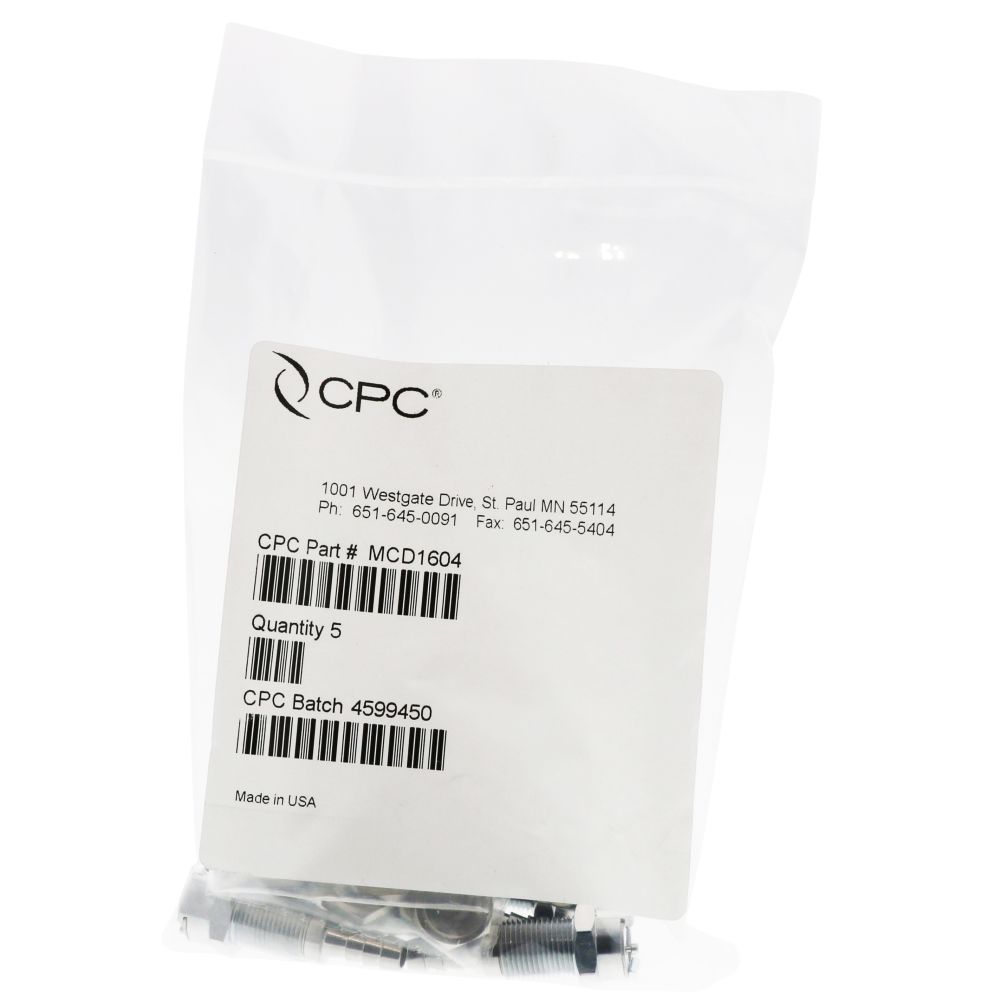

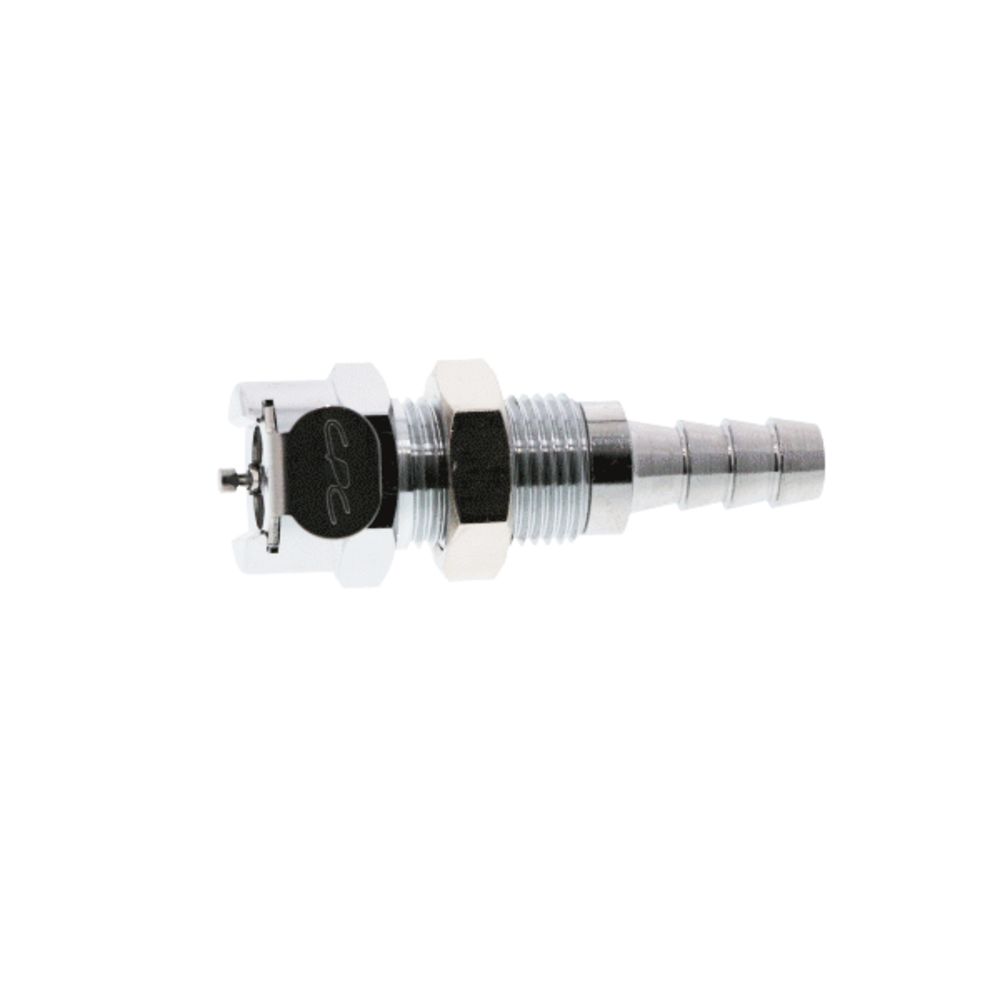

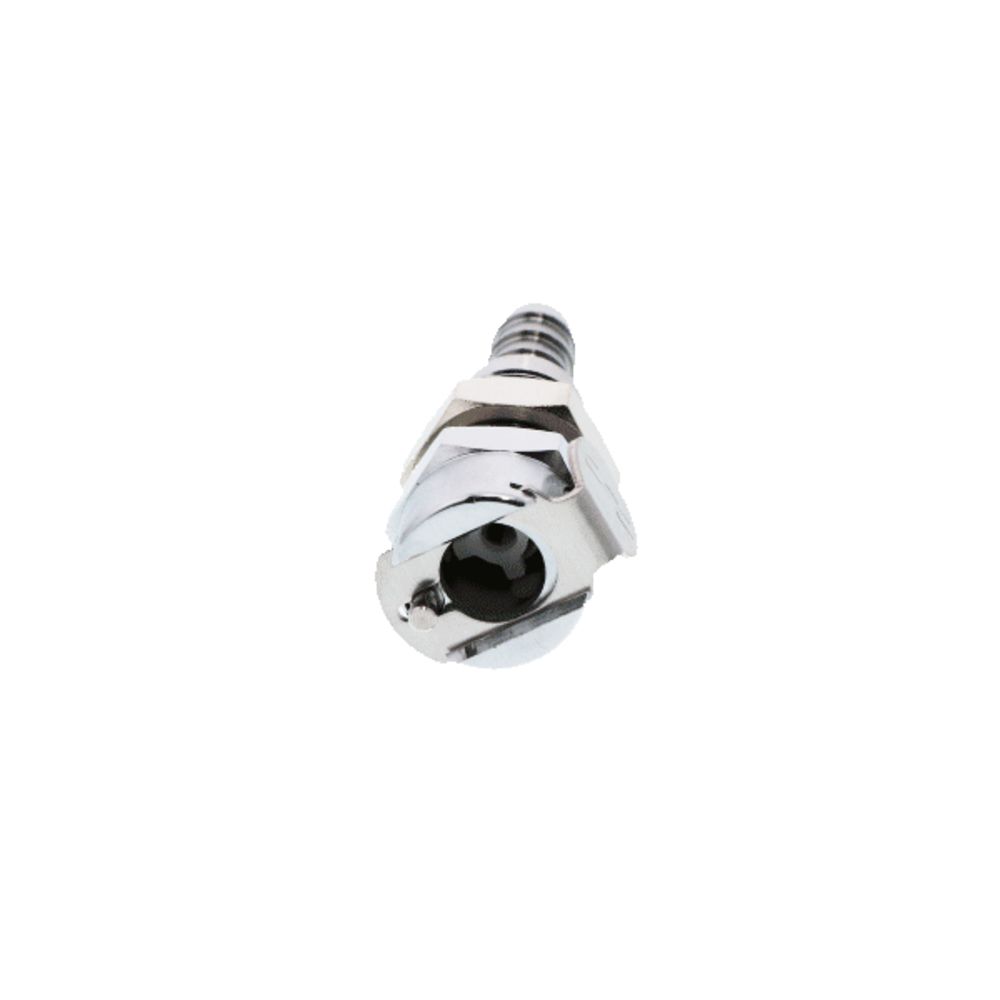

MCD1604 Valved Panel Mount Hose Barb Coupling Body 1/4 ID Barb

The John Guest Copper Tube Size Plastic Half Cartridge are designed for use in plumbing, recreational vehicle and marine applications, and provides a quick, efficient and easy way of securing a Speedfit push-in connection into a wide variety of original equipment. As the cartridge requires low insertion loads it is suitable for many different housing materials.

Specifications:This Half Cartridge includes the following three components

• A gray collet or gripper
• EPDM o-ring spacer
• A gray plastic body with stainless steel teeth.

As with all Speedfit products, the push-in connection can be used on plastic or soft metal tubes in both inch and metric sizes. The cartridges are suitable for a very wide selection of original equipment including manifolds and multi-connection points and, because they are produced in food grade materials, Drinks Dispense and Water Purification equipment.

As Plastic Half Cartridges are intended for use by Original Equipment Manufacturers they are only supplied in bulk quantities.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Chrome-Plated Brass
External Springs And Pin	Stainless Steel
Max Pressure (Psi)	180
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Panel Mount
Nsf Version	No
Seal Material	Buna-N
Series	MC
Shape	Straight
Spring	316 Stainless Steel
Thumb Latch	Stainless Steel
Valve Type	Valved
Color / Finish	Chrome
Origin	U.S.A.
Type	Coupling Body
