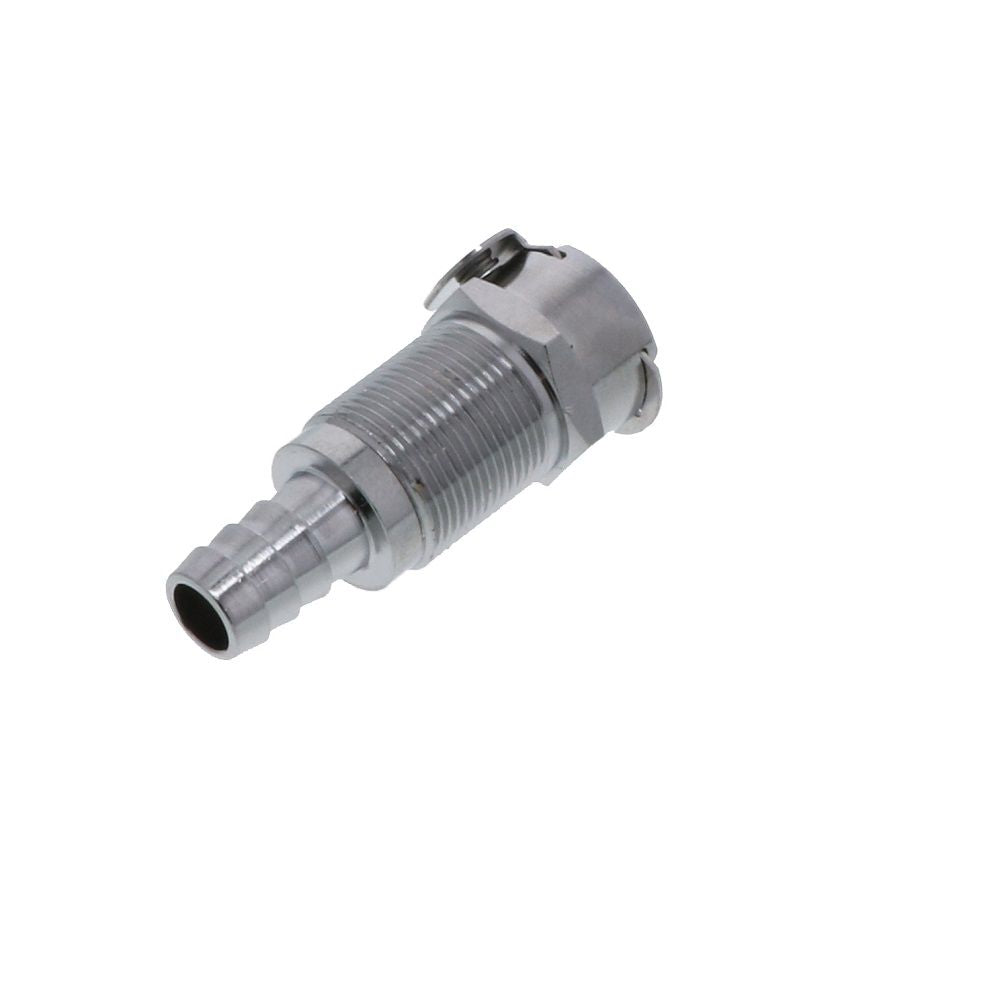

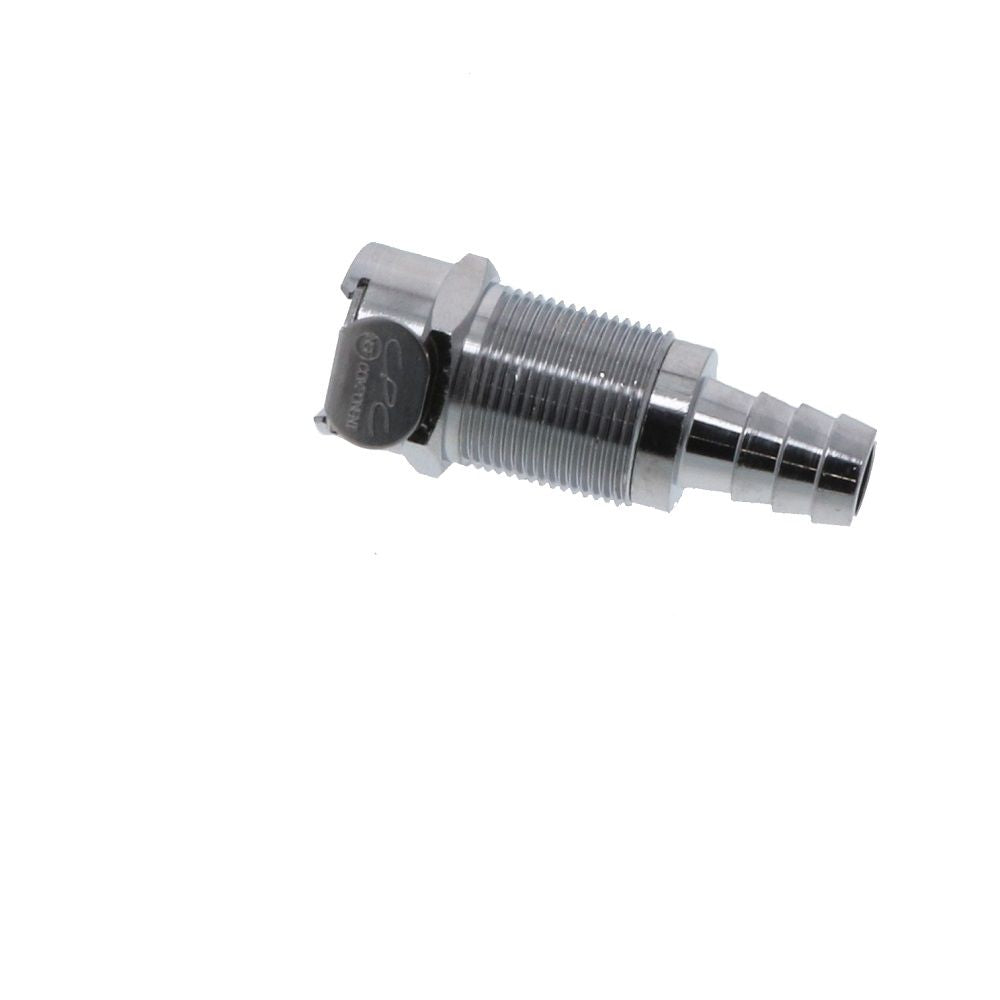

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.
Specifications:- Material: Brass
- Material Finish: Chrome
- Color: Chrome
- Mounting Option: Panel Mount
- Temperature Range: -40°F to 180°F (-40°C to 82°C)
- Pressure range: Vacuum to 250 psi, 17.3 bar
- Valve Option: Non-Valved
California residents
Prop 65 Warning
WARNING! This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
| Product Details |
|---|
Application | Water |
Barb Size | 3/8" ID |
Body Material | Chrome-Plated Brass |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | Yes |
Number Of Seals | 0 |
Series | LC |
Shape | Straight |
Spring | 316 Stainless steel |
Thumb Latch | Stainless steel |
Valve Type | Non-Valved |
Color / Finish | Chrome |
Type | Coupling Body |
| Warranty & Certifications |
|---|
Product Certification Standard | NSF/ANSI 169 |
