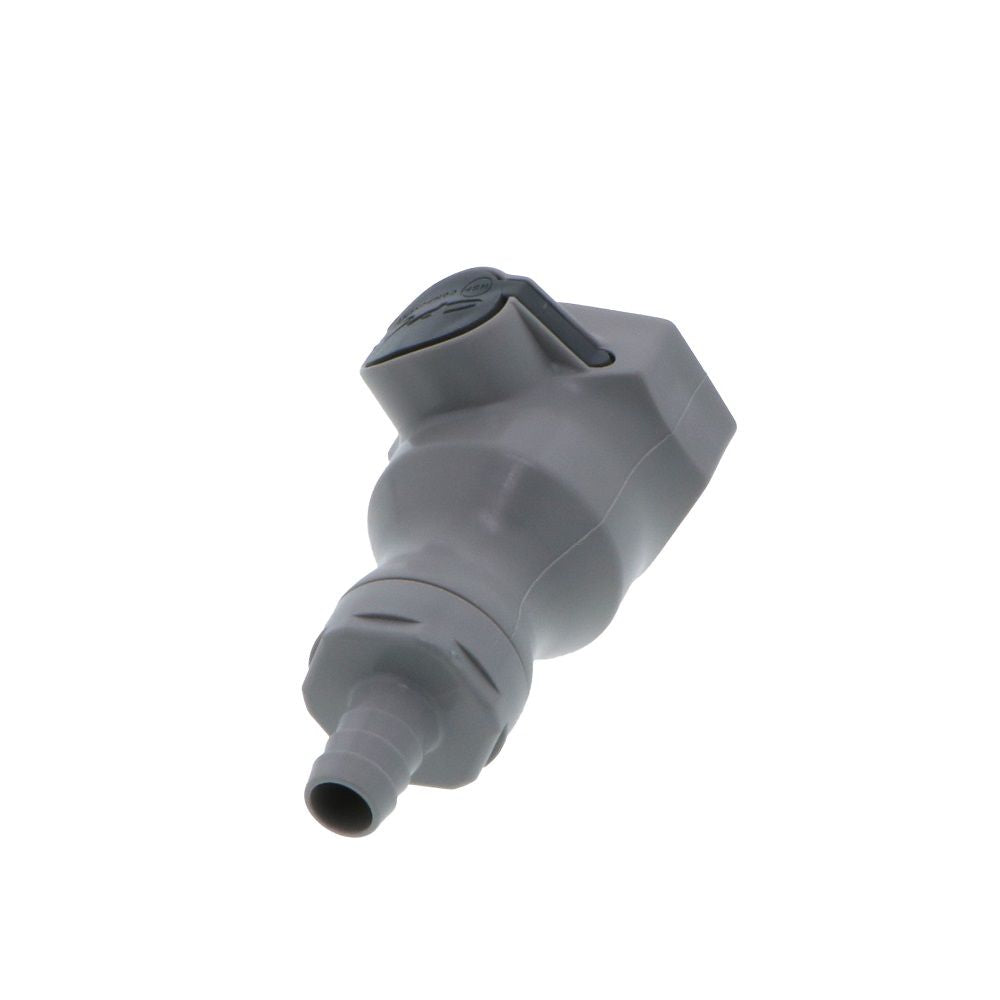

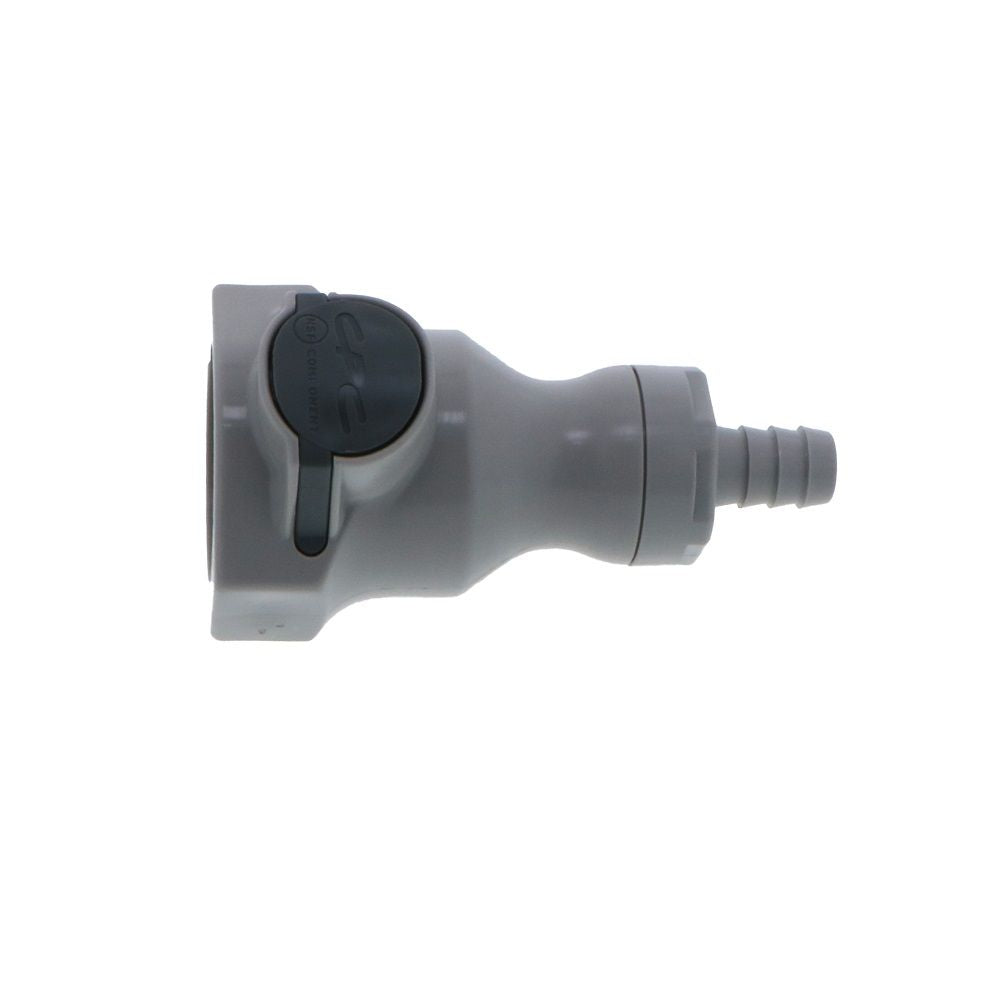

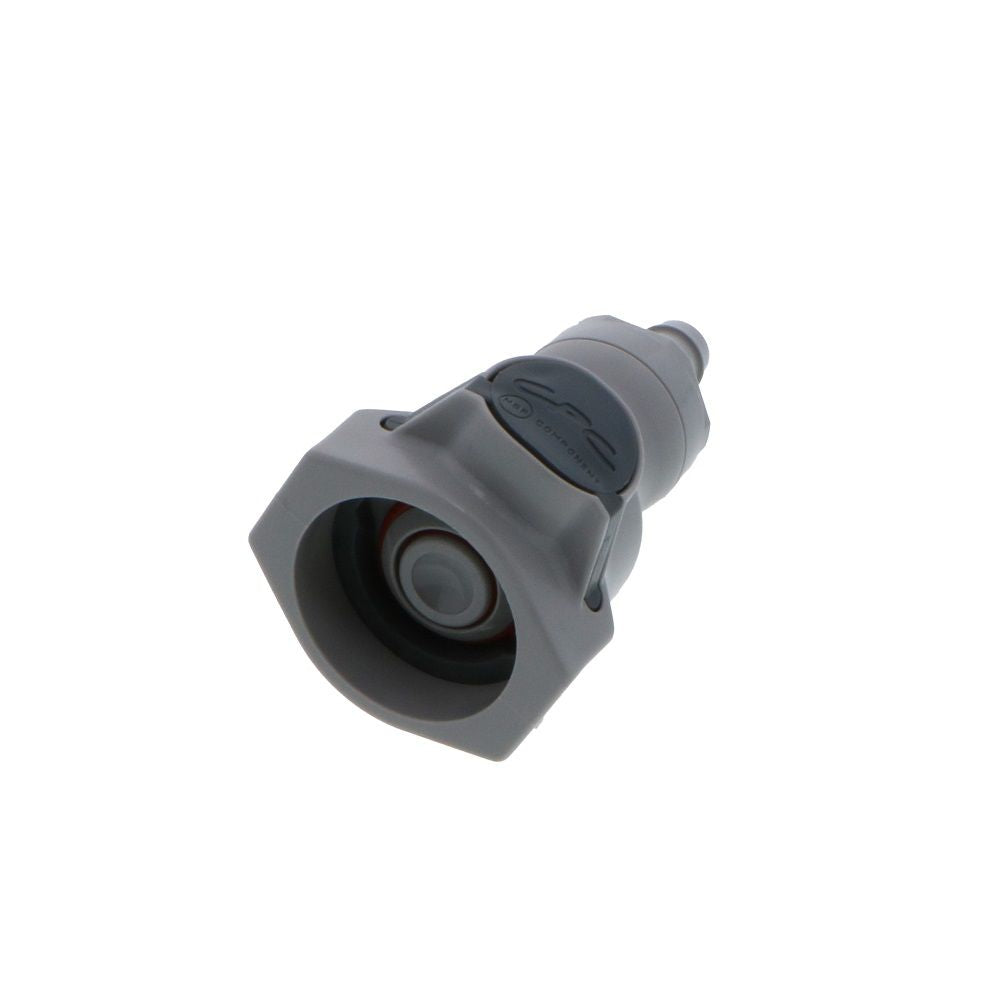

UDC Valved In-Line Hose Barb Coupling Body - 3/8 ID Barb Silicone O-Ring

Colder UDC Series Universal Dispensing Couplings provide a universal connection to a 38 mm fitment neck. This allows you to make instant connections to bulk packaging systems including bag-in-box (BIB), flexible and rigid packaging styles. The couplings feature automatic flush face valves to minimize costly or dangerous spillage. The ergonomic design and large, shrouded thumb latch pad of the UDC Series produce a coupling that is easy to grip and simple to operate. UDC Series couplings are NSF-listed and are suitable for dispensing liquids, condiments or other food-based material.

Specifications

• Material: Polypropylene
• Color: Gray
• Pressure Range: 20" Hg vacuum to 15 psi (1 bar)
• Mounting Option: Free Floating
• Valve Option: Valved
• Valve Spring: 316 stainless steel
• Temperature Range: 32ºF to 160ºF
• Seal Options: FDA Silicone
• Tubing Size: 3/8" ID
• NSF 169 Listed
• Available in Bags of 5 units

NOTE: This specialty item from Colder has a minimum quantity order of 25 fittings.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Bag-in-Box
Barb Size	3/8" ID
Body Material	Polypropylene
Max Pressure (Psi)	15
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Number Of Seals	1
Seal Material	FDA Silicone
Series	UDC
Shape	Straight
Spring	316 stainless steel
Valve Type	Valved
Color / Finish	Gray
Origin	U.S.A.
Type	Coupling Body
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
