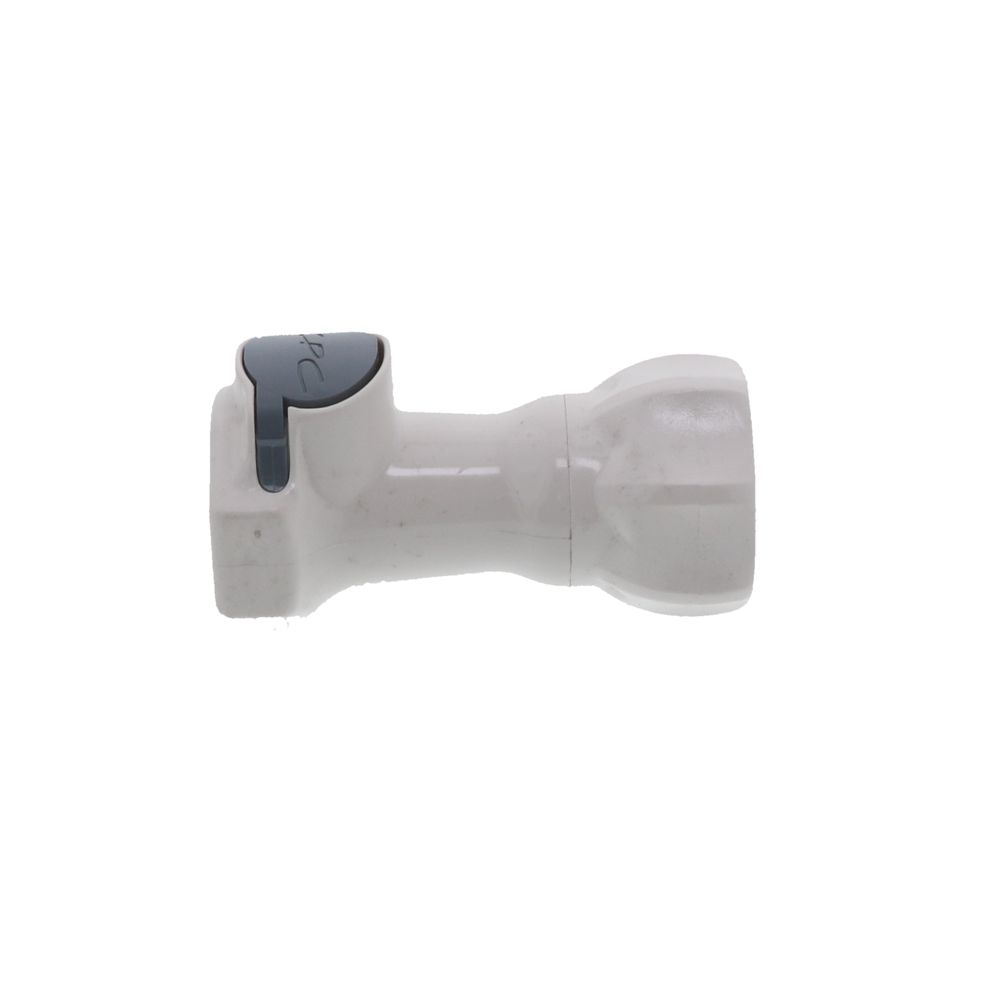

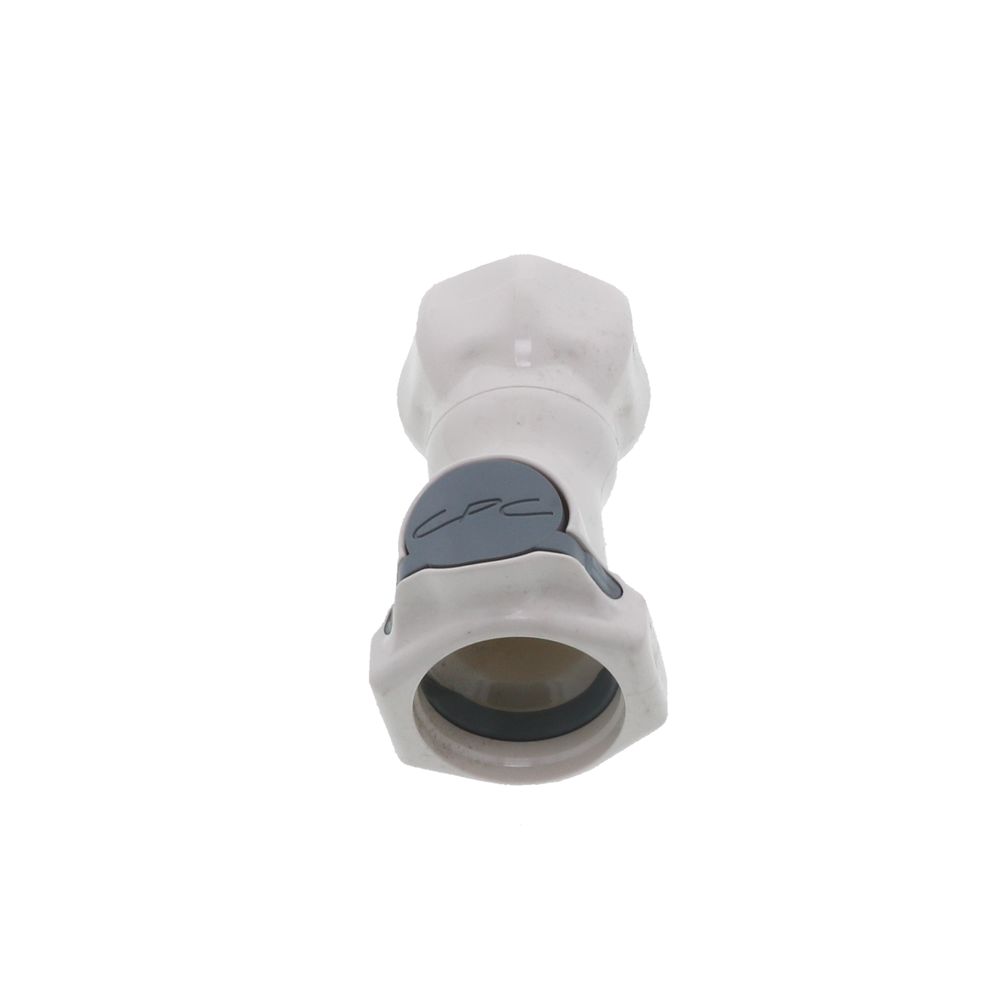

FFC191235BSPP Non-Valved Female Thread Coupling Body 3/4 BSPP

The FFC35 Series 1/2" flow couplings feature twice the flow of the HFC35 Series couplings and are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability. The FFC35 has a non-valved bore that increases flow and minimizes turbulence.

Specifications:

• Material: Polysulfone
• Color: White
• Pressure Range: Vacuum to 125 psi, 8.6 bar
• Mounting Option: Female BSPP Thread
• Valve Option: Non-Valved
• Temperature Range: -40ºF to 280ºF
• Seal Options: FDA Buna-N
• Available in Bags of 10 units

Note: A restocking fee of 25% will be charged on returns for Colder FFC35 Series Couplings. Also, there is a minimum quantity order of 30 fittings.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Polysulfone
External Springs And Pin	316 Stainless Steel
Inlet Connection	3/4" BSP
Max Pressure (Psi)	125
Max Temp (°F)	280
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/4" BSP
Seal Material	FDA Buna-N
Series	FFC35
Shape	Straight
Size	3/4"
Spring	316 stainless steel
Thumb Latch	Polysulfone
Valve Type	Non-Valved
Color / Finish	White
Connection Type	BSP
Type	Coupling Body
