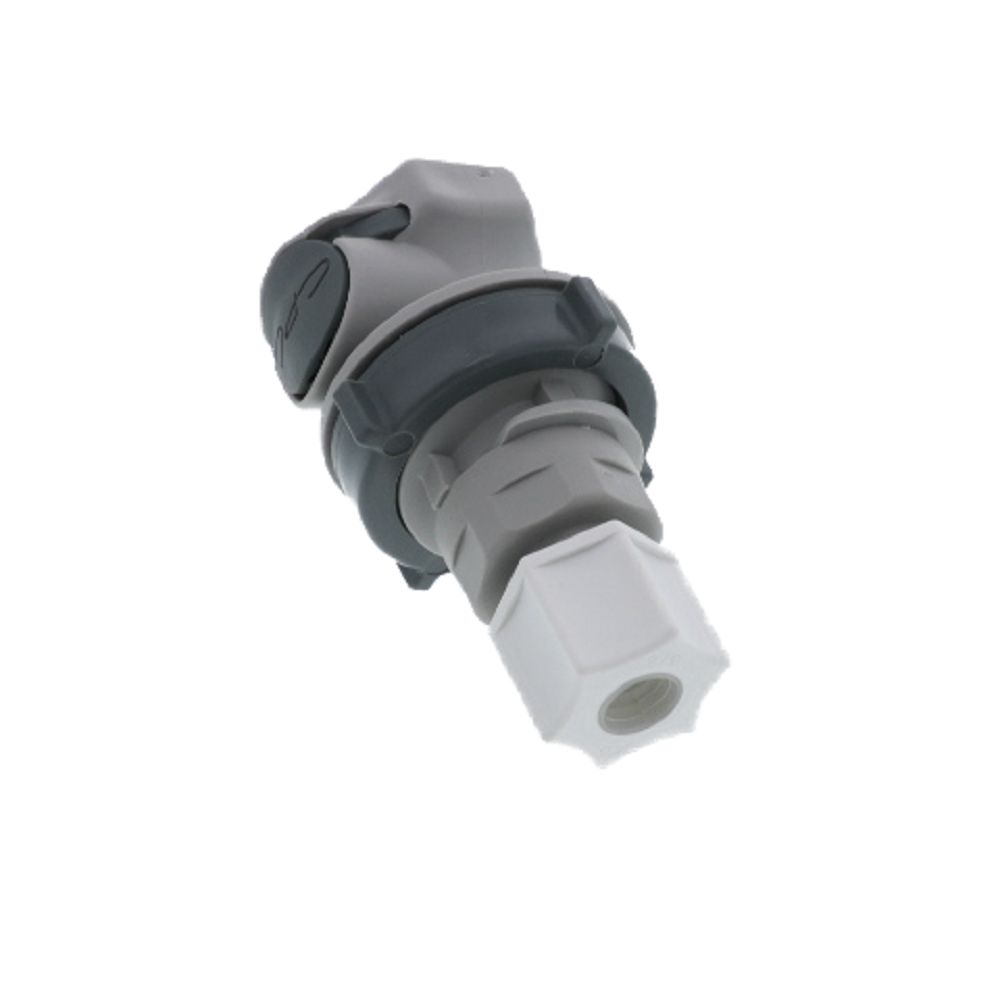

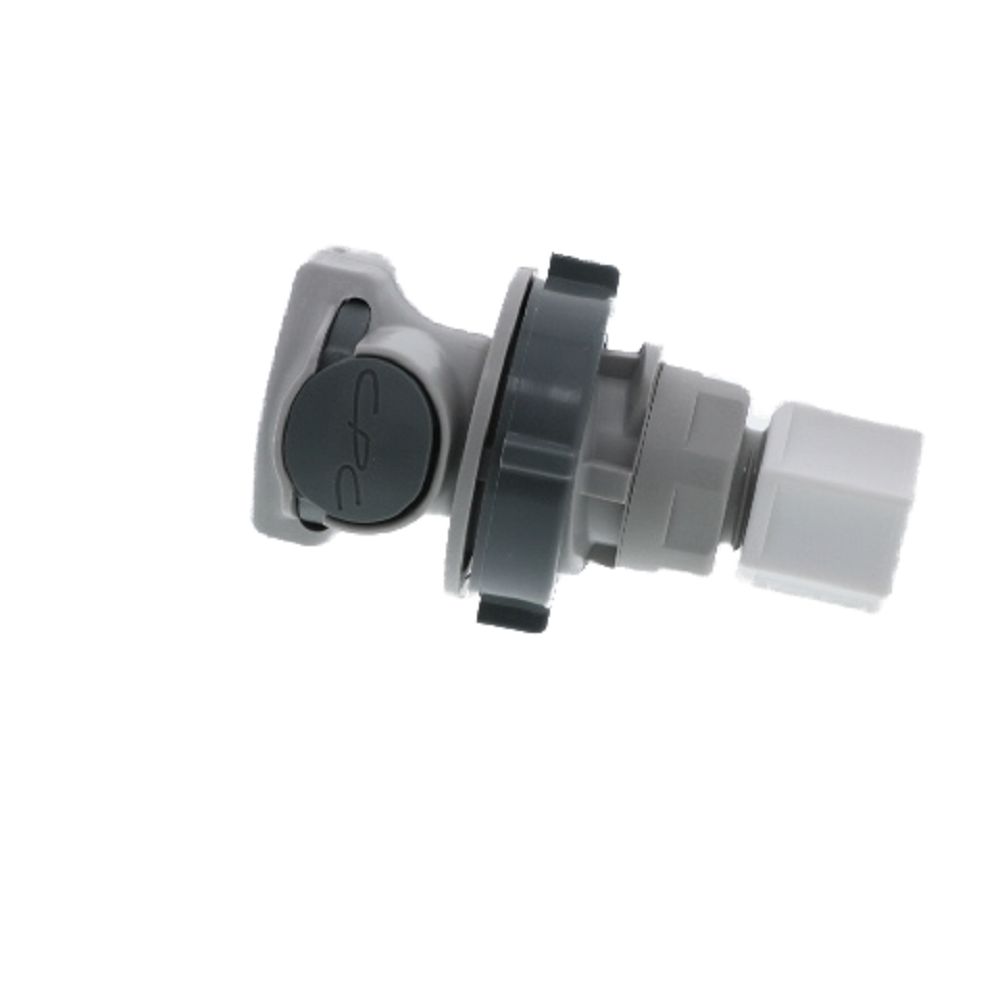

HFCD12612 3/8" Compression Valved Panel Mount Coupling Body

The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:

• Material: Polypropylene
• Material Finish: Molded Grey
• Color: Gray
• Pressure Range: Vacuum to 60 psi, 4.2 bar
• Mounting Option: Panel Mount
• Valve Option: Valved
• Temperature Range: 32ºF to 160ºF
• Seal Options: EPDM
• Available in Bags of 10 units
• NSF Listed Version (part # 62600) Available Upon Request

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Polypropylene
Max Pressure (Psi)	60
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Panel Mount
Nsf Version	No
Seal Material	EPDM
Series	HFC12
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Gray
Type	Coupling Body
