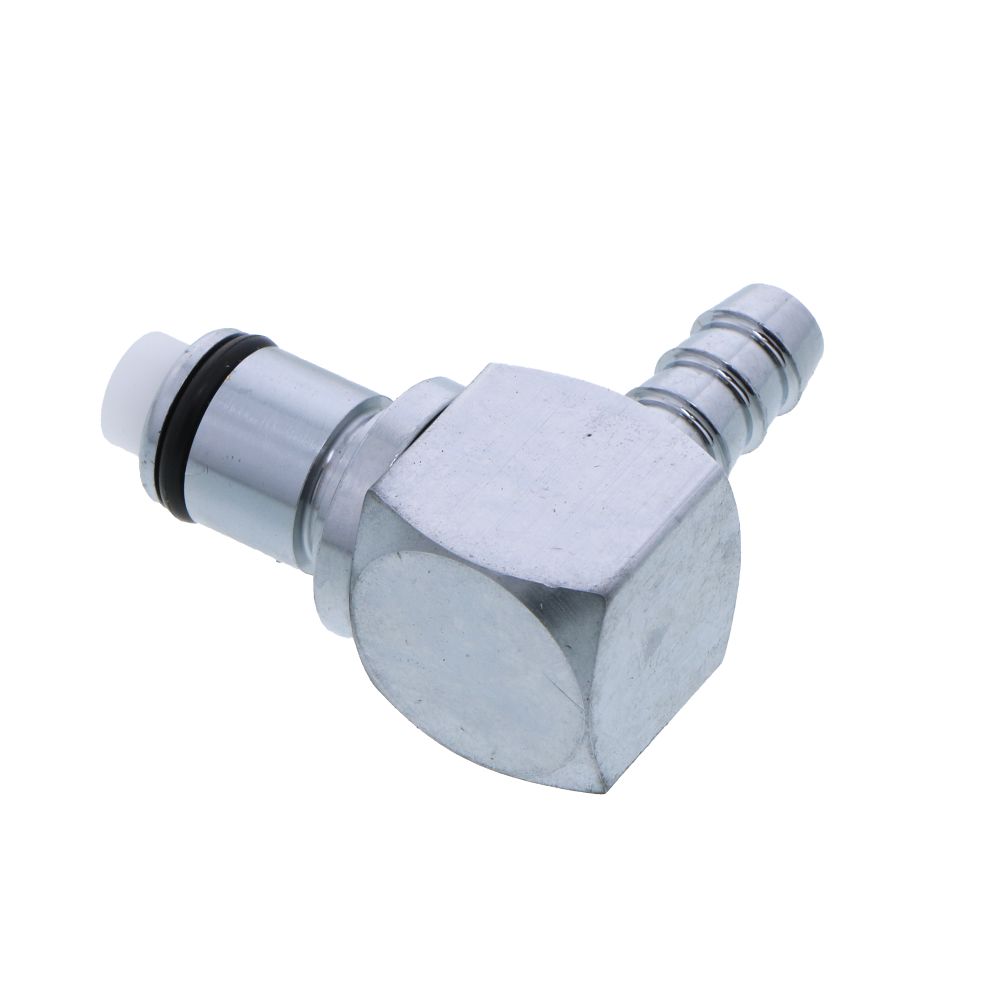

LCD23005V Valved Elbow Hose Barb Coupling Insert 5/16 ID Barb FKM (Viton) O-rings

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

This 5/16" Barb Size is compatible with the 8mm Europe fitting and is often used for fuel systems on motorcycles.

Specifications:

• Material: Brass
• Pressure Range: Vacuum to 250 psi, 17.3 bar
• Mounting Option: Free Floating
• Valve Option: Valved
• Finish: Chrome
• Temperature Range: -40ºF to 180ºF
• Valve Spring: 316 Stainless Steel
• Seal Options: FKM (Viton)

Compatible with:

LINKTECH 40CBV-PV4-05

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
External Springs And Pin	Stainless Steel
Max Pressure (Psi)	250
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Number Of Seals	2
Seal Material	FKM (Viton)
Series	LC
Spring	316 Stainless Steel
Thumb Latch	Stainless steel
Valve Type	Valved
Color / Finish	Chrome
Origin	U.S.A.
Type	Coupling Insert
