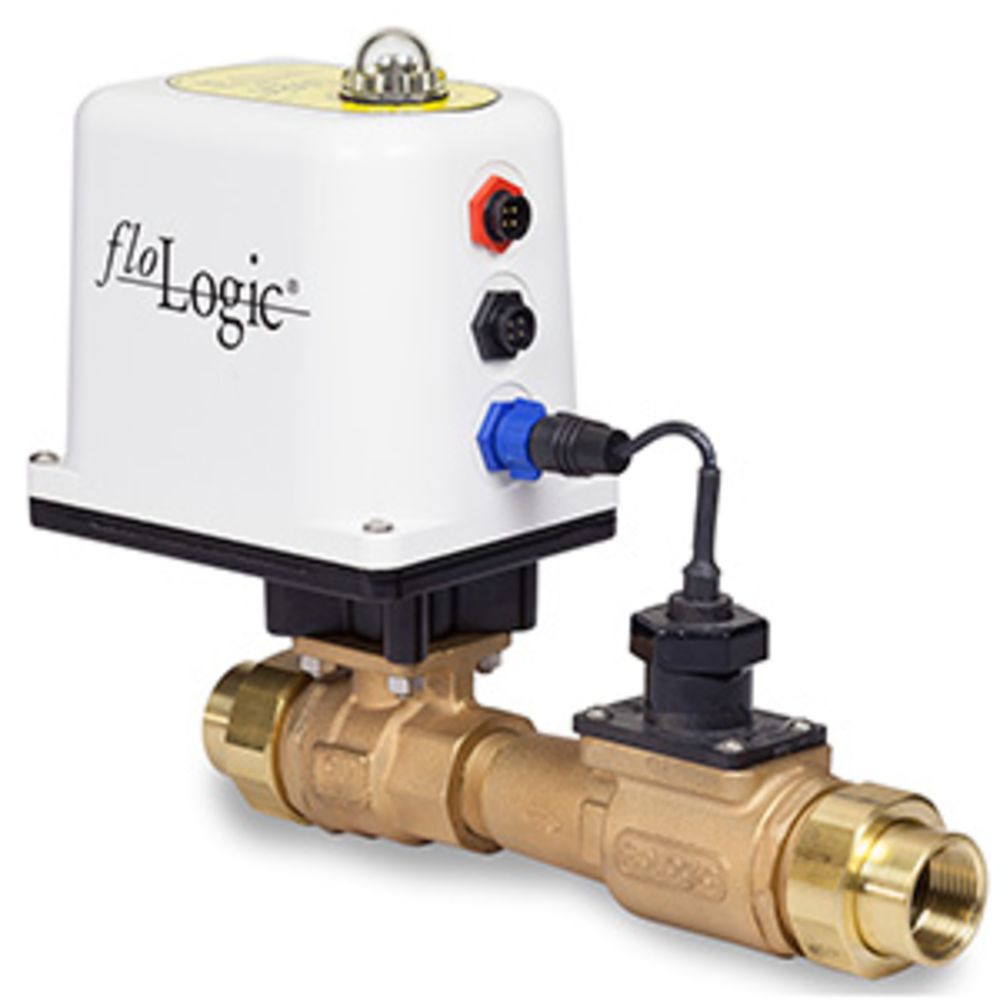

FloLogic System 3.5 Replacement Actuator & Valve Assembly

The FloLogic Replacement Actuator with Valve Assembly for System 3.5 features revolutionary technology designed to protect the plumbing in your home or business by detecting irregular water flow before major damage occurs. The ACTASSY0035 actuator includes the VPCB3002 circuit board and the ACT3002 valve assembly. The actuator cover protects the unit from harmful environments both indoor and out. The valve assembly is included making installation quick and easy.

The FloLogic Actuator will detect and stop leaks resulting from:

• Frozen pipes
• Malfunctioning appliances
• Running exterior hose bibs
• Any accidental water waste
• Pinhole leaks in copper pipes
• Irrigation line or valve failures
• Radiant heating distribution lines
• Ruptured supply lines and fittings
• Leaking boilers and water heaters
• Stuck flappers and toilet fill valves

Specifications :

• Working Pressure: 100 PSI
• Air Temperature: 35° - 120° F
• Max Working Pressure: 150 PSI
• Water Temperature: 35° - 140° F
• Certifications: UL, cUL, UPC, cUPC -NSF 61-8
• Minimal Detection: 1/2 oz per minute
• Pressure Drop <3 @30 PSI & under 5 PSI @ 50 PG
• Connections: 1" FPT on both ends of the Assembly
• Valve Assembly Dimensions: 9-1/2" L x 4-3/4" D x 9-1/2" H
• WaterProof Valve Assembly (IP68) for Indoor & Outdoor Use

Note: The FloLogic ACTASSY0035 Replacement Actuator comes with a replacement valve, but does not include the flow sensor.


California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	35-120 °F
Inlet Connection	1" FPT
Liquid Temperature	35-140 °F
Max Pressure (Psi)	150
Min Pressure (Psi)	100
Outlet Connection	1" FPT
Power	AC + Battery
Size	1"
Connection Type	Female (FPT)
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	Five-year warranty on primary valve and one-year warranty on electronics
Product Weight & Dimensions
Product Height	9-1/2"
Product Length	4-3/4"
Product Width	9-1/2"
Product Weight (lbs)	2.5
