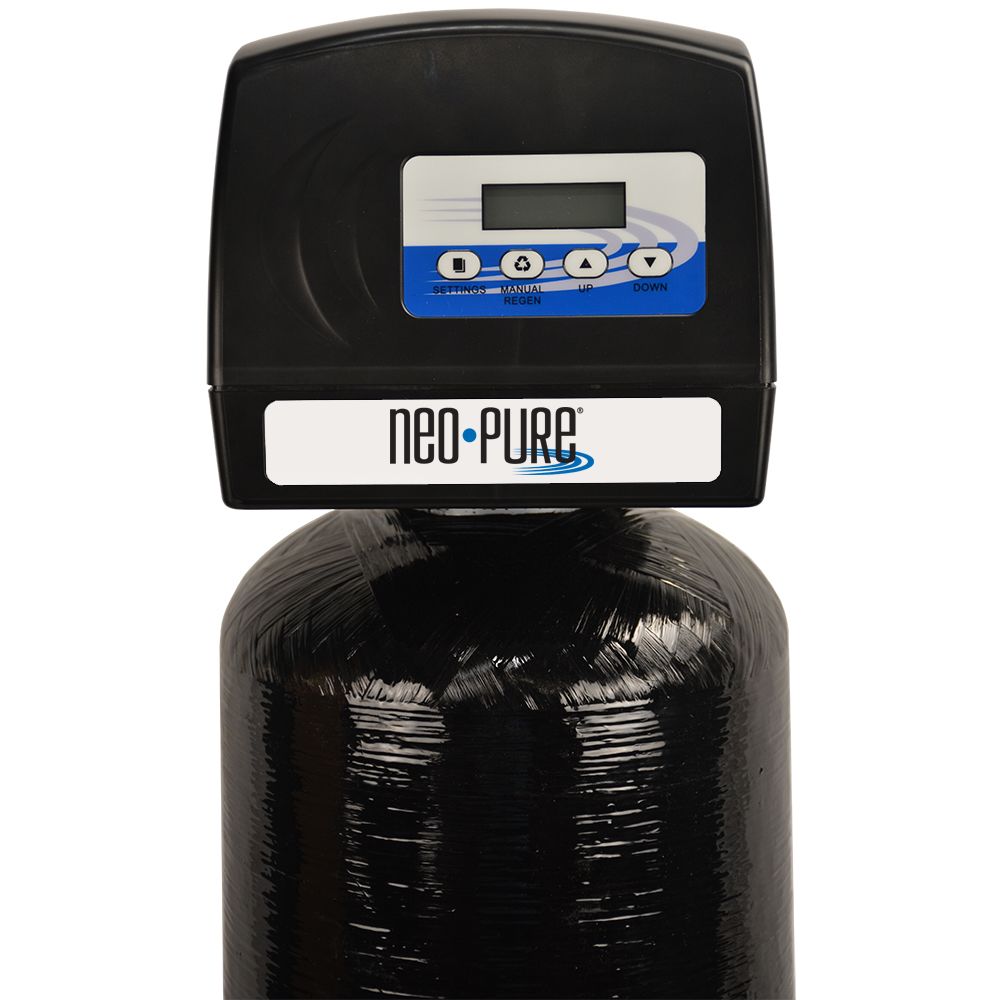

Neo-Pure® High Efficiency Up-Flow Series Water Softener

The Neo-Pure High Efficiency Upflow Series features Professional Grade Metered Water Softeners designed by Fresh Water Systems to eliminate hardness from your water supply. When hard water minerals are combined with heat it forms scale build-up. Scale causes costly build-up in your plumbing, water heater and other water-using appliances. When combined with soap, the minerals form soap curd or scum that makes skin dry and itchy, hair lifeless, laundry dull, and builds up on fixtures.
A Neo-Pure Upflow High Efficiency Water Softener provides a wallet-friendly option for families seeking a solution to their hard water. These softeners were designed to be as user-friendly as possible. Programming is easy, and once it´s done you never have to worry about resetting it- even in a power outage! Your only maintenance will be to occasionally check the salt level and add more when needed.

Money Saving This softener will save you expensive maintenance costs spent fixing appliances that are damaged by scale, as well as soap, salt, and water costs.

Eco-Friendly The Neo-Pure Upflow Softener uses up to 75% less salt and wastes up to 65% less water than standard efficiency softeners.

Simple Programming The Neo-Pure Meter is extremely easy to program. Just enter the number of people in your home, time, date, and the hard water level.

High Efficiency The horizontal piston on the Neo-Pure Upflow Softener head forces more water into the softener faster which increases the systems flow rate.



Benefits of Neo-Pure High Efficiency Upflow Series:

• Protects Plumbing & Appliances
• Use Less Soap & Detergents
• Spot Free Dishes
• Softer, Smoother Skin
• Silky, Shiny Hair

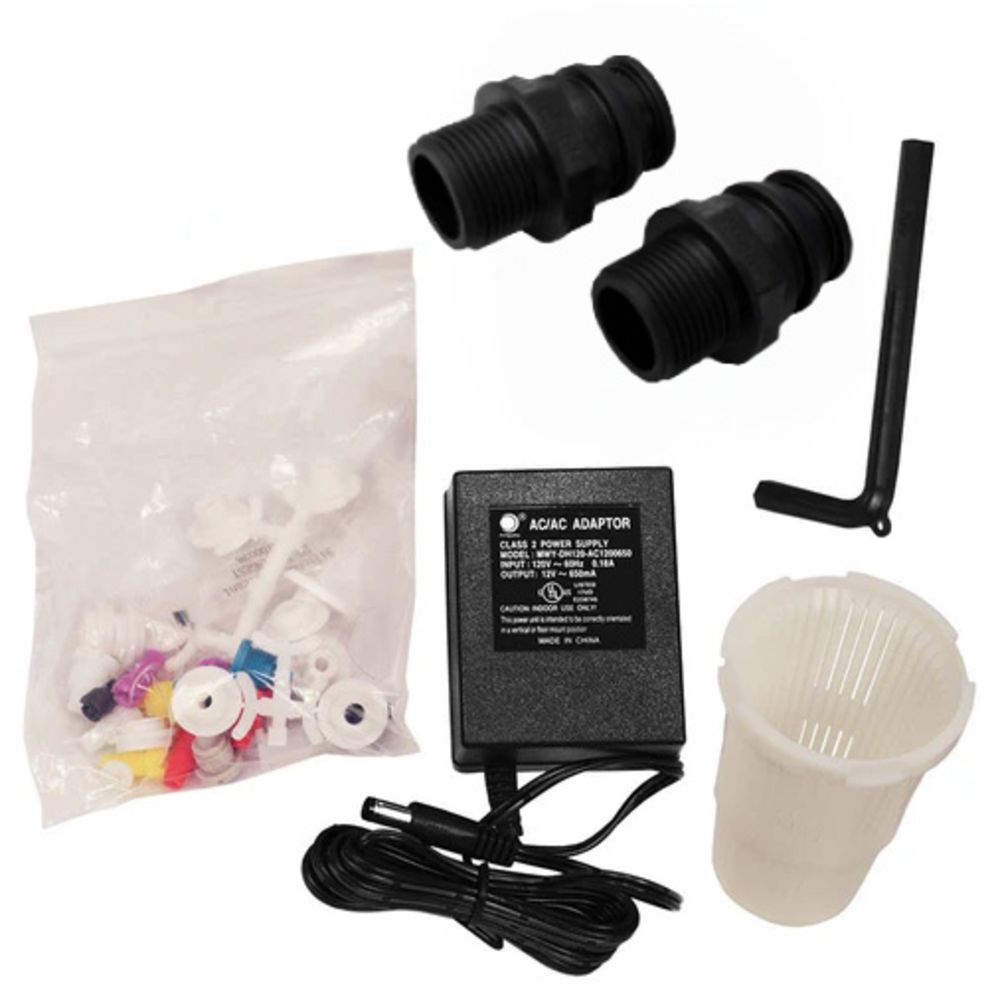

DIY Installation Components:

• Quick Connect Brine Line, Drain Line & Power Cord

• Pre-installed Bypass w/ Time Saving Quick Connect Plumbing Adapters (2 x ¾" NPT Elbows)

• The Straight Connectors are no longer necessary for this system. The manufacturer is offering them through the end of 12/2024



Benefits of Upflow Brining vs Downflow Brining
Many generic and standard efficiency water softeners use downflow brining, which entails pushing the hard water through the top of the resin bed, and up through the middle of the tank. However, the hard water typically settles on top of the resin, so much of the media is not used and the softener must regenerate more frequently.
Neo-Pure High Efficiency Water Softeners feature upflow brining, also called counter-current brining, which is the most efficient and effective way to regenerate a water softener. This type of softener regenerates resin by removing the contaminants through the same direction they came in, so they don´t contaminate the clean resin. The hard water is pushed through the bottom of the resin bed and flows upwards, utilizing all of the media layers, meaning far less frequent regeneration is needed. Additionally, upflow brining regenerates only the precise amount of resin needed to bring it back to a full charge. This green technology dramatically reduces water and salt waste, and delivers softer water to all your taps.

SKU	Grain Capacity	Volume
NPHS-075	22,500	0.75 cubic ft.
NPHS-100	30,000	1 cubic ft.
NPHS-150	45,000	1.5 cubic ft.
NPHS-200	60,000	2 cubic ft.



California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Capacity	22,500 Grains 30,000 Grains 45,000 Grains 60,000 Grains
Inlet Connection	3/4" MPT 1" MPT
Outlet Connection	3/4" MPT,1" MPT
Size	3/4" 1"
Volume	0.75 Cubic Feet 1.0 Cubic Feet 1.5 Cubic Feet 2.0 Cubic Feet
Change Frequency	22,500 Grains,30,000 Grains,45,000 Grains,60,000 Grains
Color / Finish	Black
Connection Type	Male (MPT)
Contaminants Reduced	Heavy Metals Scale
Flow Rate	8 GPM 10 GPM 12 GPM 15 GPM
Media Type	High Capacity Standard Mesh Resin
Voltage	100-120V
Warranty & Certifications
Warranty	There is a 5 year warranty on the control valve, and a 10 year limited warranty on the fiberglass tank. Please contact the customer service department for more details.
Shipping Dimensions
Shipping Length	15 in.
Shipping Width	15 in.
Shipping Height	35 in.
Product Weight & Dimensions
Product Weight (lbs)	112
