10" Heavy Duty Sediment Prefilter Kit - 3/4"

Features:

10" Heavy Duty Filter Housing 3/4" Inlet/Outlet
Stainless Steel Mounting Bracket w/lag bolts

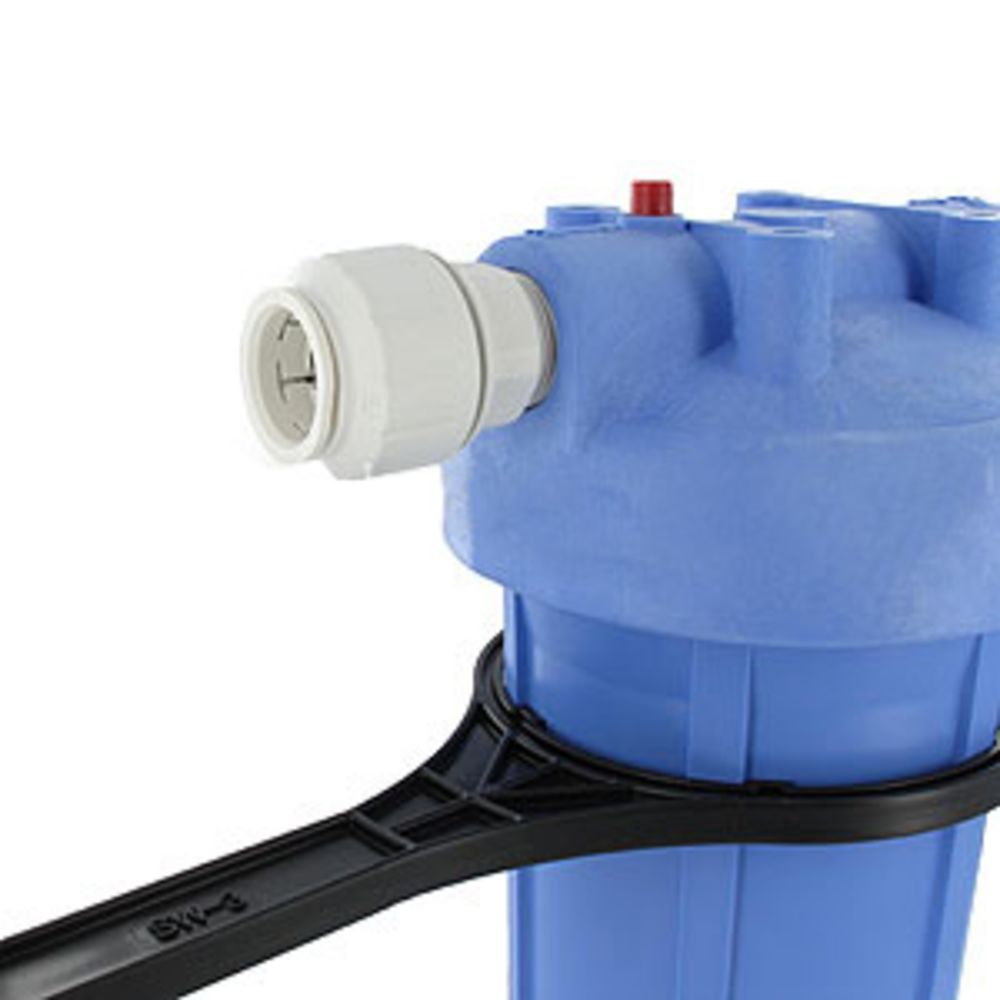

Filter Wrench for Heavy Duty Housings
Extra O-ring for Heavy Duty Housings

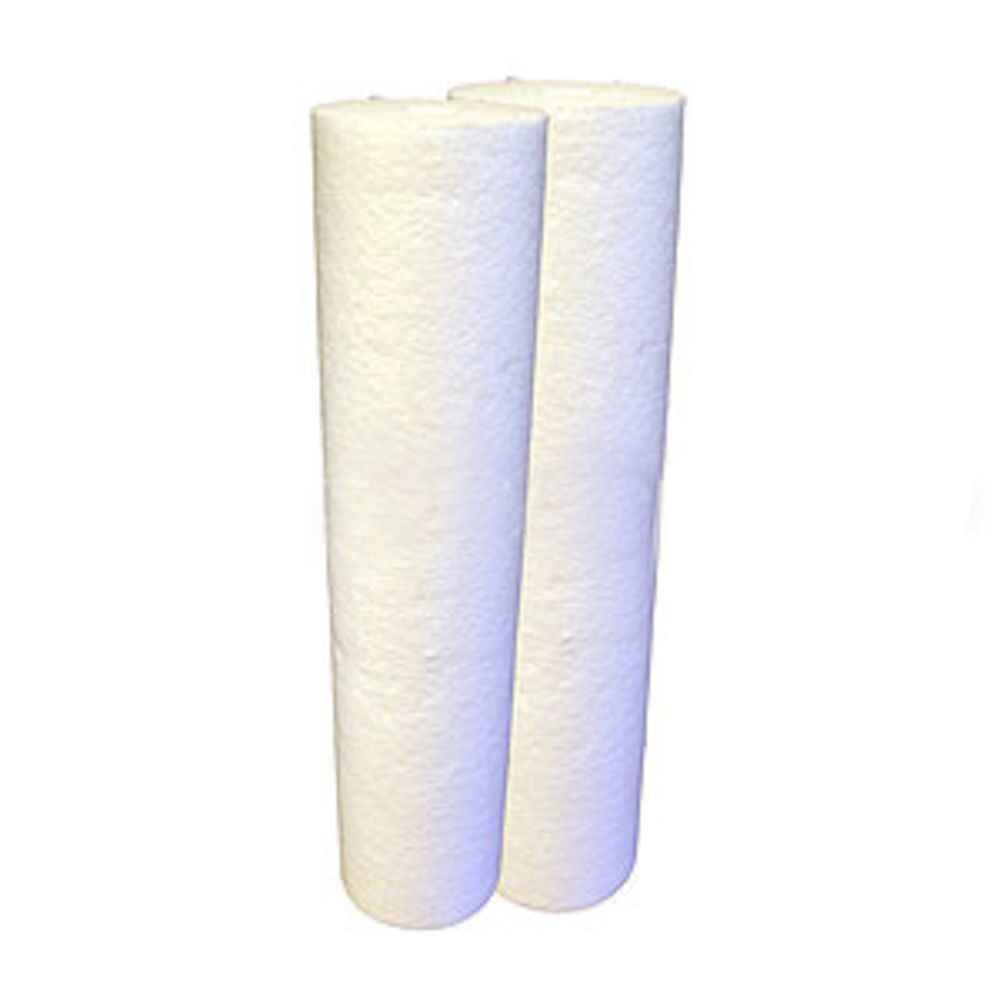

Two Dual Gradient Polypropylene 5 micron filters
Two 3/4" CTS x 3/4" NPT Male Connectors for Copper, PEX, and CPVC
3/4" CTS Stop Valve for Copper, PEX, and CPVC

Standard Set-Up Diagram:

Optional Bypass Set-up Diagram:

California residents Prop 65 Warning

warning symbol

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Housing Material	Polypropylene
Inlet Connection	3/4" FPT
Max Pressure (Psi)	100
Max Temp (°F)	100
Micron Rating (Nominal)	5 µm
Nut / Fitting Material	Polysulfone
Outlet Connection	3/4" FPT
Size	3/4"
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Flow Rate	10 GPM
Media Type	Dual Gradient Polypropylene
Type	Sediment Filtration System
Shipping Dimensions
Shipping Length	22 in.
Shipping Width	10 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Height	13-1/8"
Product Width	7-1/4"
Product Weight (lbs)	11.3
