20" Heavy Duty Twin Sediment Prefilter Kit - 1"

The Heavy Duty Twin Sediment Prefilter Kit that is parallel plumbed, for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates from 24 to 40 gpm using our dual gradient polypropylene filter that starts at 50 microns, down to 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.

Filter housings may be plumbed in Parallel with the same filter type to achieve higher flow rates, or in Series with different filter types to achieve multi-stage filtration.

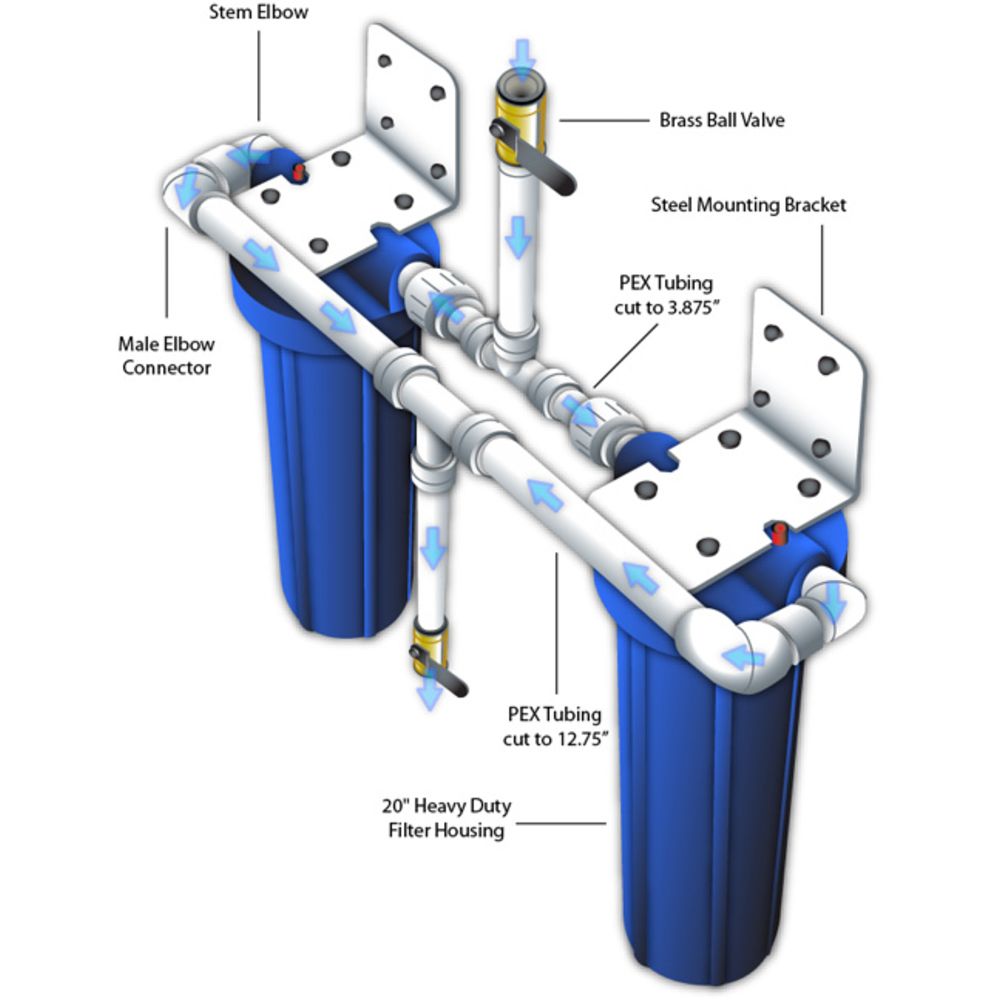

Sediment Pre-filter kit for Ultraviolet (UV) Disinfection Water Systems Includes:

• Two 20" Heavy Duty Filter Housing 1" Inlet/Outlet
• Two Stainless Steel Mounting Bracket w/lag bolts
• Filter Wrench for Heavy Duty Housings
• Two Extra O-ring for Heavy Duty Housings
• Two Dual Gradient Polypropylene 50/5 micron filters
• Two 1" CTS x 1" NPT Male Connectors
• Two 1" CTS x 1" NPT Male Elbow Connectors
• Two 1" CTS Stem Elbows
• Two 1" CTS x 1" CTS x 1" CTS Union Tees
• Two 1" CTS Sharkbite Brass Ball Valves
• Two 1" CTS x 18" PEX Tubing

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Housing Material	Polypropylene
Inlet Connection	1" FPT
Max Pressure (Psi)	100
Max Temp (°F)	100
Micron Rating (Nominal)	5 µm
Nut / Fitting Material	Polysulfone Brass
Outlet Connection	1" FPT
Size	1"
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Flow Rate	24-40 GPM
Media Type	Dual Gradient Polypropylene
Type	Sediment Filtration System
Shipping Dimensions
Shipping Length	16 in.
Shipping Width	16 in.
Shipping Height	29 in.
Product Weight & Dimensions
Approx Depth	8"
Product Height	29"
Product Width	32"
Product Weight (lbs)	31.65
